Is the Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 suitable for use with medical gas detection equipment at -40Â°C to +82Â°C?

Yes. The Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 is suitable for use with medical gas detection equipment at -40Â°C to +82Â°C. The product description explicitly lists gas detection and medical devices among intended applications and specifies an operating temperature range of -40Â°C to +82Â°C. Materials (acetal body, NBR seals) and working pressure rating (up to 8.3 bar) are consistent with many gas detection setups; the valve and audible click confirmation support secure, one-handed connection/disconnection. Ensure compatibility with your specific medical gas type (chemical compatibility of acetal and NBR), required pressure/certifications, and any facility or regulatory standards before final installation.

Can the Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 be used with chemical analyzers operating up to 8.3 bar?

Yes. Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 can be used with chemical analyzers operating up to 8.3 bar. It is explicitly intended for chemical analyzers, made of acetal with NBR sealing, and its specified working pressure is up to 8.3 bar. Operating temperature range is â40Â°C to +82Â°C. Ensure compatibility of acetal and NBR with the specific chemicals in your analyzer and verify any application-specific safety or regulatory requirements.

Does the Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 provide an audible click to confirm secure one-handed connection?

Yes. The Hose quick-connection socket, with valve, acetal, PMC series DN 3,2 provides an audible click to confirm a secure one-handed connection. The product description states its characteristic design (without balls and protective sleeves) allows easier, secure one-handed connection and disconnection, and explicitly notes that the effectiveness of the connection is indicated by an audible click.

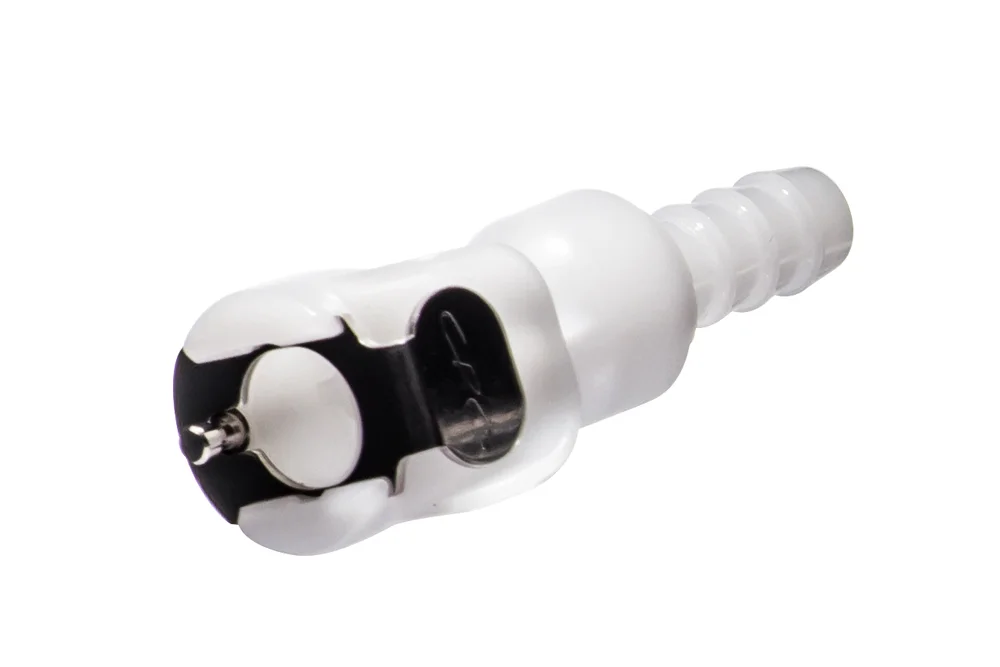

Hose quick-connection socket, with valve, acetal, PMC series DN 3,2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)
Standard length [m]	30

Quick coupling socket with valve for hose is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PMV-15-AC	PMC DN3.2 socket for 1/16" hose, with valve, acetal	2	8.3	In stock	Enquiry
CC-PMV-16-AC	PMC DN3.2 socket for 1/8" hose, with valve, acetal	3	8.3	In stock	Enquiry
CC-PMV-17-AC	PMC DN3.2 socket for 3/16" hose, with valve, acetal	5	8.3	In stock	Enquiry
CC-PMV-18-AC	PMC DN3.2 socket for 1/4" hose, with valve, acetal	6	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with valve for hose is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The characteristic design (not containing balls and protective sleeves) allows for easier, secure connection and disconnection with one hand. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal. Sealing: NBR. Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
