Can the Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series be used with steam up to 10 bar and Viton seals at 200Â°C?

Yes . Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series can be used with steam up to 10 bar and Viton seals at 200Â°C. The product specification lists a working pressure for steam of 10 bar and shows Viton sealing with an operating temperature range up to +200Â°C, so using Viton seals with steam at 10 bar and 200Â°C is within the stated limits. Ensure correct material compatibility for your specific steam application and follow any installation, maintenance, and safety guidelines.

Is the Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series compatible with AISI 316 steel piping and fittings?

Yes. Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series is compatible with AISI 316 steel piping and fittings. The product description lists materials as nickel-plated and chrome-plated brass / AISI 316 steel, indicating intended use with AISI 316 components. Ensure sealing material (NBR or Viton) and operating limits (pressure up to 50 bar, steam 10 bar; temperature ranges: NBR â20Â°C to +100Â°C, Viton â25Â°C to +200Â°C) match your application. Do not combine series 1300N couplings with series 1300.

Can the Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series handle oils and fuels without seal degradation?

Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series can handle oils and fuels without seal degradation provided you choose the Viton sealing option. Description notes suitability âfor water, steam, oils, and fuelsâ and lists available seals NBR and Viton. NBR (â20Â°C to +100Â°C) is generally not recommended for many fuels and aggressive hydrocarbon oils due to swelling and faster degradation. Viton (â25Â°C to +200Â°C) offers much better chemical resistance to petroleum-based oils and fuels and higher temperature tolerance, so it will resist seal degradation in typical oil/fuel applications. Also consider working pressure limits (50 bar; for steam 10 bar) and compatibility of the brass or AISI 316 materials with your specific fluid and operating conditions. For aggressive additives, solvents, or unusually high temperatures/pressures, validate compatibility with the fluid manufacturer or test in application.

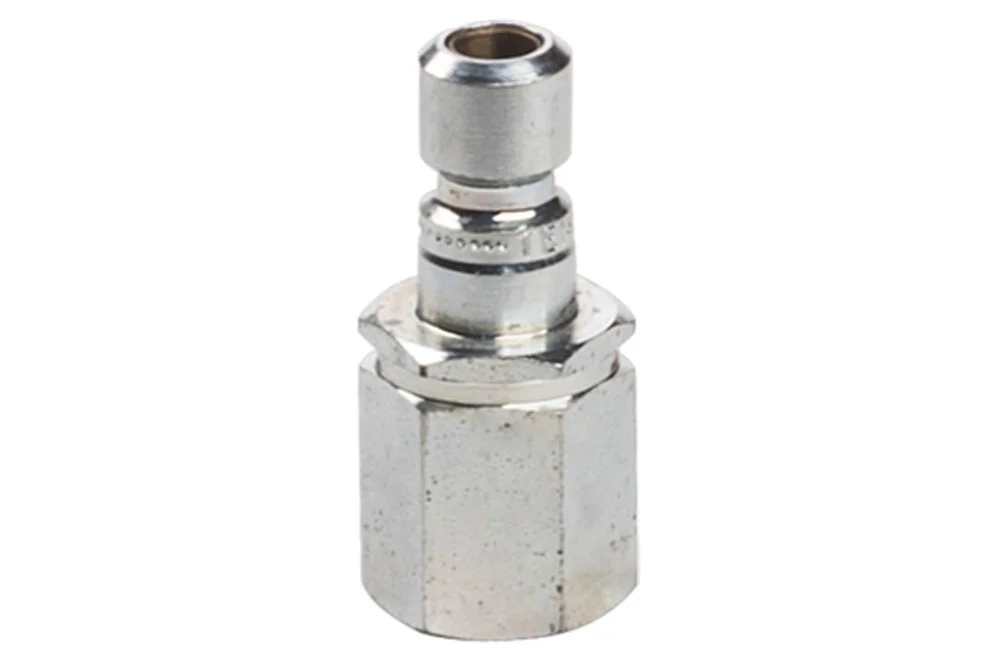

Quick connector DN5.8 with valve, threaded, nickel-plated brass, 1300N series

All products, General-purpose low-pressure quick couplings/

Additional information

Material	SS – stainless steel

Universal quick-connect plug with valve DN5.8, with internal BSP thread. Double shut-off in standard TEMA 1300N, popular in the Scandinavian market, designed primarily for liquids to prevent leaks during disconnection (for water, steam, oils, and fuels). It features high corrosion resistance and large flow rates with small external dimensions. couplings of series 1300N should not be combined with series 1300. Material: nickel-plated and chrome-plated brass / AISI 316 steel. Performance: 13.5 l/min (Δp = 1 bar, Kv = 0.81 – water), 760 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). Sealing: NBR / viton. Operating temperature: from -20°C to +100°C (NBR), from -25°C to +200°C (viton).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RE-1300SBIW13EVX	Quick coupling plug 1300N, with valve, G 1/4" BSP, AISI 316, viton	-	50	In stock	0 zł		Enquiry
RE-1300SBIW13MPC	Quick coupling plug 1300N, with valve, 1/4" BSP female thread, chrome-plated brass, NBR	-	50	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal quick-connect plug with valve DN5.8, with internal BSP thread. Double shut-off in standard TEMA 1300N, popular in the Scandinavian market, designed primarily for liquids to prevent leaks during disconnection (for water, steam, oils, and fuels). It features high corrosion resistance and large flow rates with small external dimensions. couplings of series 1300N should not be combined with series 1300. Material: nickel-plated and chrome-plated brass / AISI 316 steel. Performance: 13.5 l/min (Δp = 1 bar, Kv = 0.81 – water), 760 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 50 bar (for steam 10 bar). Sealing: NBR / viton. Operating temperature: from -20°C to +100°C (NBR), from -25°C to +200°C (viton).
