Is the Hose and valve quick connector, acetal, PMC series DN 3.2 suitable for use with medical gases and compatible with common sterilization methods?

Based on the provided description, the Hose and valve quick connector, acetal, PMC series DN 3.2 is intended for use in applications including medical devices and gas detection, which suggests it can be used with some medical gas-related equipment. Material and performance considerations: - Materials: main body is acetal (POM) with an NBR (nitrile) Oâring. Acetal is chemically resistant and dimensionally stable, but not inherently medicalâgrade; NBR is widely used for seals but can swell or degrade with certain disinfectants and some sterilization methods. - Pressure/temperature: rated to 8.3 bar and â40Â°C to +82Â°C, so it covers typical medical gas pressures and many room/operating temperatures. - Sterilization compatibility: common medical sterilization methods include autoclaving (steam at â¥121Â°C), ethylene oxide (EtO), hydrogen peroxide plasma, and chemical disinfectants (alcohols, bleach, peracetic acid). Acetal and NBR will generally NOT tolerate repeated steam autoclaving (temperature exceeds +82Â°C) and may deform or lose sealing performance. NBR can be attacked or hardened by aggressive chemicals and some plasma/oxidative methods. EtO is more compatible with many polymers but requires validation. - Medical gas compatibility: acetal and NBR are chemically compatible with many dry medical gases (oxygen, nitrogen, air) but NBR is oxygenâsensitive under certain conditions (risk of degradation with high O2 concentrations over time); for oxygen service, oxygenâcleaning and suitability of materials must be confirmed. Conclusion: The Hose and valve quick connector, acetal, PMC series DN 3.2 may be suitable for some medical gas applications (dry gases, nonâoxidizing environments) and lowâtemperature sterilization methods (e.g., EtO) but is not suitable for steam autoclaving and may be incompatible with certain chemical or plasma sterilization processes. For medical use and sterilization qualification, verify manufacturerâs specific biocompatibility, oxygenâservice certification, cleaning/sterilization compatibility, and perform applicationâspecific validation.

Can the Hose and valve quick connector, acetal, PMC series DN 3.2 be safely used for continuous gas sampling in laboratory chemical analyzers?

Short answer: Probably yes, with reservations. Hose and valve quick connector, acetal, PMC series DN 3.2 is described for use in gas detection and chemical analyzers, has an audible click for positive connection, acetal body with NBR Oâring, working pressure up to 8.3 bar, and temperature range â40Â°C to +82Â°C - characteristics that make it suitable for many continuous gas sampling applications in laboratory chemical analyzers. Caveats: confirm chemical compatibility of acetal and NBR with the specific gases and any solvent vapors present; verify leak rate/permeation specifications and suitability for your required sampling flow and sensitivity; ensure connectors, mating parts and pressure/transient conditions remain within rated limits; consider cleanliness, particulate generation, and any regulatory/medical grade requirements. For critical or hazardous gases, perform bench testing and consult manufacturer data sheets or technical support before continuous use.

Does the Hose and valve quick connector, acetal, PMC series DN 3.2 produce any contaminating particles affecting sensitive optical or inkjet equipment?

Based on the provided description, the Hose and valve quick connector, acetal, PMC series DN 3.2 is designed for sensitive applications (gas detection, medical devices, chemical analyzers, inkjet printing, optical equipment) and uses acetal (POM) body with an NBR O-ring. These materials are commonly used in fluid and gas fittings for low particle generation and chemical compatibility. Key points affecting particulate contamination: - Body material: Acetal (POM) is a low-friction, low-shed engineering plastic that generally produces minimal particulate under normal assembly and use compared with softer polymers. - Sealing material: NBR (nitrile) O-rings are standard in many fluid systems; they can generate some particles if abrased, but when properly installed and not exposed to incompatible fluids or extreme abrasion, particle generation is low. - Mechanical design: The audible click and valve feature imply a secure, positive mating that reduces micro-movements and leakageâboth factors that lower particle generation in service. - Operating limits: Rated to 8.3 bar and â40Â°C to +82Â°C. Staying within these limits minimizes material degradation or accelerated wear that could produce particulates. - Intended applications: Explicit listing of optical and inkjet equipment suggests the connector was specified with low-contamination use in mind. Caveats and recommendations: - Initial outgassing/particles: New plastic components can shed manufacturing residues or loose particles; recommended cleaning/flush before use in ultra-sensitive optical or inkjet systems. - Abrasive or particulate-laden media, high-frequency connect/disconnect cycles, or mechanical stress can increase particle generation. - If sub-ppm particle levels or ISO/Classified cleanliness are required, validate by particle testing (particle counters, optical inspection) under your actual operating conditions. - Consider alternate elastomers (e.g., EPDM, FFKM) or metal-bodied quick connectors if chemical compatibility, temperature extremes, or the strictest cleanliness standards demand it. Conclusion: The Hose and valve quick connector, acetal, PMC series DN 3.2 is constructed from materials and with a design consistent with low particulate generation and is suitable for sensitive optical and inkjet equipment when used within specified conditions and after appropriate cleaning/validation. For critical applications, perform application-specific particle testing to confirm compliance.

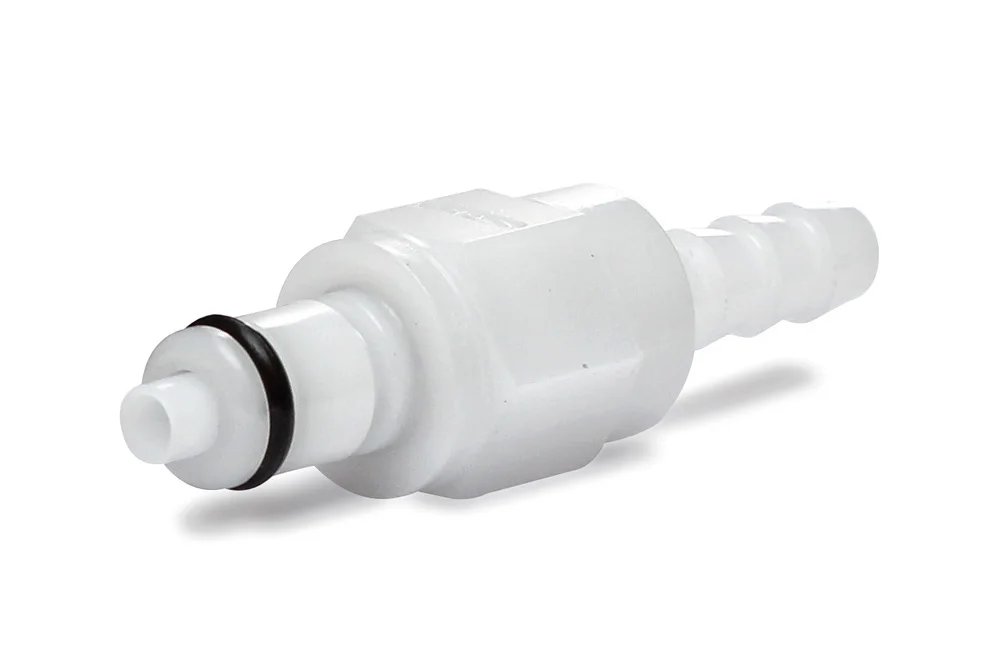

Hose and valve quick connector, acetal, PMC series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

Quick coupling plug with valve for hose is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (NBR o-ring). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
CC-PMV-31-AC	PMC DN3.2 plug for 1/16" hose, with valve, acetal	2	8.3	In stock	Enquiry
CC-PMV-32-AC	PMC DN3.2 plug for 1/8" hose, with valve, acetal	3	8.3	In stock	Enquiry
CC-PMV-33-AC	PMC DN3.2 plug for 3/16" hose, with valve, acetal	5	8.3	In stock	Enquiry
CC-PMV-34-AC	PMC DN3.2 plug for 1/4" hose, with valve, acetal	6	8.3	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling plug with valve for hose is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (NBR o-ring). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
