Is the DN11.8 water quick connector with hose end, without flange, stainless steel compatible with my pressure washer rated up to 200 bar and 100Â°C?

Yes . the DN11.8 water quick connector with hose end, without flange, stainless steel is compatible. Its specified working pressure is 200 bar and its operating temperature is up to +100Â°C, which match your pressure washerâs ratings (up to 200 bar and 100Â°C). Materials AISI 303/304L stainless steel provide good corrosion resistance for typical water applications. Ensure proper assembly, sealing (use correct O-rings/gaskets), and that connected fittings/hose have equal or greater pressure and temperature ratings for safe operation.

Can DN11.8 water quick connector with hose end, without flange, stainless steel be used with various hose types and washing accessories?

Yes. The DN11.8 water quick connector with hose end, without flange, stainless steel is designed to facilitate quick connection of a water gun to a hose or other washing accessories. Made from AISI 303/304L and rated to 200 bar and up to +100Â°C, it is suitable for use with a variety of hoses and common washing fittings, provided the hose inner diameter and coupling geometry match the connectorâs hose end. Ensure compatibility of hose material, diameter, and operating pressure/temperature for safe, leak-free use.

Does the DN11.8 water quick connector with hose end, without flange, stainless steel require specific hose bore or fitting standards?

Yes. The DN11.8 water quick connector with hose end, without flange, stainless steel does require attention to hose bore and fitting standards to ensure safe, leakâfree operation and to meet its rated performance (200 bar, up to +100Â°C). Key considerations: - Hose inner diameter (bore): The connector designation DN11.8 implies an internal nominal diameter ~11.8 mm. Use a hose with a matching internal bore to avoid flow restriction, excess turbulence, or poor sealing. A hose ID as close as possible to 11.8 mm (or the manufacturerâs stated ID for DN11.8) is recommended. - Pressure rating: Select a hose and fittings rated for at least 200 bar (preferably with a safety margin). Using a lowerârated hose or crimping/fitting assembly will compromise safety. - Temperature rating: Hose and seals must be suitable for continuous use up to +100Â°C. - Fitting type and attachment: Because this item is a hoseâend quick connector (no flange), use compatible hose fittings (barb, crimp, or crimpless ferrule systems) that match the connectorâs tail profile and diameter. Proper crimping or clamping to the stainless steel tail is essential to prevent blowâoff at high pressure. - Material compatibility: The connector is AISI 303/304L stainless steel; choose hose cover/liners and seals compatible with stainless and the media (water, detergents) and able to tolerate the temperature. - Standards and approvals: Where applicable, follow relevant standards (e.g., ISO, EN, SAE or local pressure hose standards) for hose assemblies and highâpressure quick couplings, and comply with manufacturer installation instructions and testing (burst and leak tests). In short: match hose ID to the DN11.8 tail, use hose and fittings rated â¥200 bar and â¤+100Â°C, ensure the fitting method fits the connector tail profile, and follow applicable pressureâhose standards and manufacturer guidance.

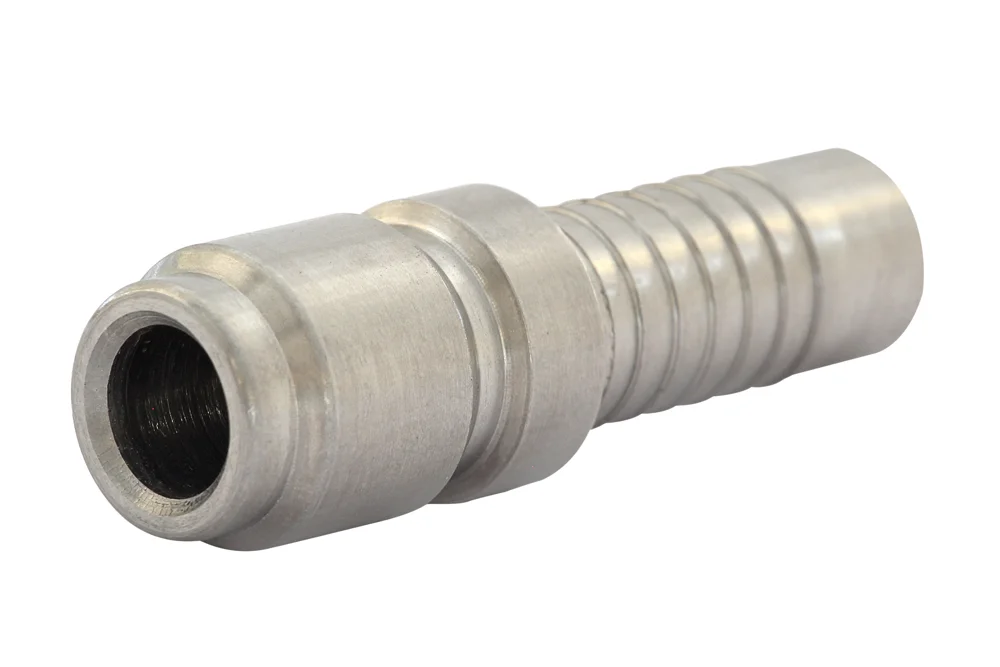

Plug water quick coupling DN11.8 with fitting for hose, without a flange, steel stainless

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

Plug quick coupling DN11.8 with fitting for hose, without a flange, facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Working pressure: 200 bar. Operating temperature: up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AK-ADAPH-13	Quick coupling plug DN11.8, Fitting for hose 1/2", without a flange, stainless steel	12	200	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plug quick coupling DN11.8 with fitting for hose, without a flange, facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Working pressure: 200 bar. Operating temperature: up to +100°C.
