Is the Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 compatible with medical and gas detection systems up to 8.3 bar?

Yes. The Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 is designed for gas detection and medical devices and has a stated working pressure up to 8.3 bar, an acetal body with NBR Oâring, audible click seal confirmation, and an operating temperature range â40Â°C to +82Â°C.so it is compatible with medical and gas detection systems operating up to 8.3 bar.

Can the Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 be autoclaved or sterilized for medical device use?

Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2: based on the provided description, autoclaving (steam sterilization at typical conditions ~121â134Â°C and high humidity/pressure) is not recommended. The body is acetal (POM) with an NBR Oâring and an operating temperature limit up to +82Â°C, well below autoclave temperatures; exposure would risk deformation, loss of sealing, and valve failure. For dry-heat or chemical sterilization, compatibility must be verified: NBR is sensitive to steam/heat and some disinfectants. For medical device use requiring validated sterilization, use a component rated for the specific sterilization method or consult the manufacturer for validated procedures and material certificates.

Does the Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 meet chemical compatibility requirements for inkjet and optical device fluids?

Possibly, but you must verify fluid-specific compatibility before use. Reasoning and guidance: - Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 is made of acetal (POM) with an NBR (nitrile) Oâring, rated to 8.3 bar and â40Â°C to +82Â°C. The product is described for applications including inkjet printing and equipment for optical devices, which indicates it is commonly used in those industries, but that description alone is not a guarantee of compatibility with every inkjet or optical-device fluid. - Typical compatibility: - Acetal (POM) is generally compatible with waterâbased inks, many solventâbased dye inks, glycol-based fluids, and many common cleaning solutions. It has good mechanical strength, low water absorption, and good dimensional stability. - NBR Oârings are broadly compatible with mineral oils, glycols, waterâbased fluids, and many inks, but they have limited resistance to strong polar solvents (ketones, esters), aromatic hydrocarbons, chlorinated solvents, and some aggressive specialty solvents and highâpolarity additives used in certain industrial inks or optical fluids. - Risk factors requiring verification: - Ink or optical fluid composition: presence of aggressive solvents (e.g., acetone, MEK, toluene, glycol ethers, strong esters), high concentrations of surfactants, detergents, or specialty additives can attack POM or swell/degrade NBR. - Temperature and pressure in your process (close to material limits can accelerate degradation). - Exposure duration and cycling (continuous immersion or repeated chemical cycling increases failure risk). - Purity requirements for optical devices (outgassing, leachables or particulates from POM/NBR may be unacceptable). Recommendation: - Obtain the exact chemical formulation or a materialsâcompatibility sheet for the specific ink/optical fluid. - Run a compatibility test (immersion and function test at operational temperature and pressure for an appropriate duration) or consult a chemical compatibility database to check acetal and NBR versus each fluid component. - If fluids contain aggressive solvents or if optical purity is critical, consider alternative elastomers (FKM, EPDM, PTFE) or housings (stainless steel, PTFE) explicitly rated for those chemicals. Conclusion: Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2 may be suitable for many inkjet and optical-device fluids, especially waterâ and glycolâbased systems, but you must confirm compatibility for your specific fluid formulation and operating conditions before deployment.

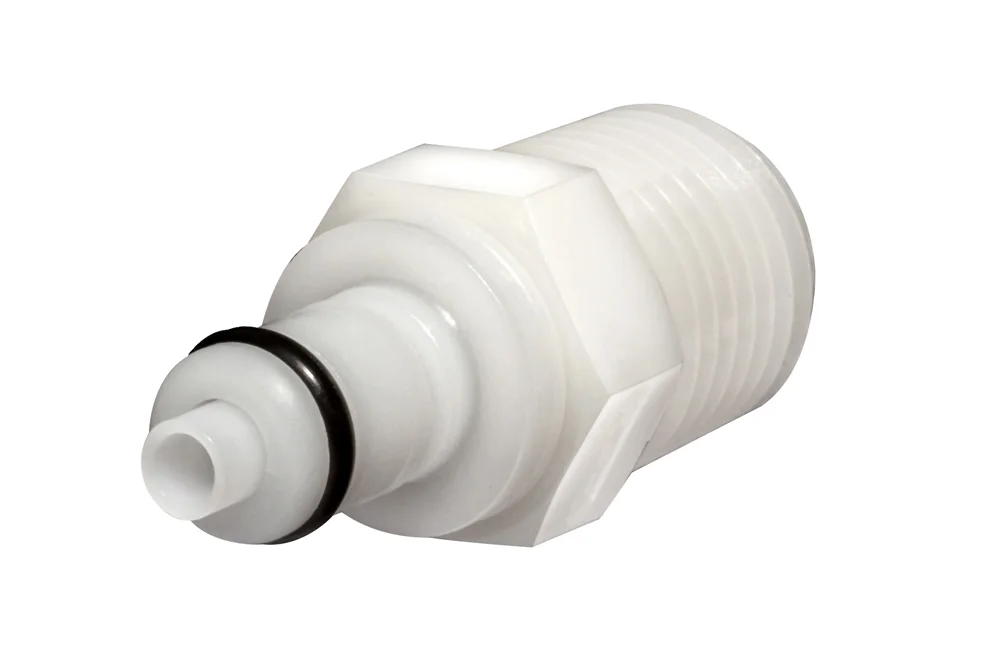

Quick connect plug with NPT GZ and valve, acetal, PMC series DN 3.2

All products, Industrial plastic quick couplings/

Additional information

Material	P – material (plastic)

Quick-connect plug with external NPT thread and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (NBR o-ring). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
CC-PMV-20-AC	PMC DN3.2 plug with 1/8" NPT thread, with valve, acetal	-	8.3	In stock	0 zł		Enquiry
CC-PMV-21-AC	PMC DN3.2 plug with 1/4" NPT thread, with valve, acetal	-	8.3	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-connect plug with external NPT thread and valve is intended for gas detection, medical devices, chemical analyzers, inkjet printing, as equipment for optical devices, etc. The effectiveness of the connection is indicated by an audible click. Length L [mm] – total length. Material: acetal (NBR o-ring). Working pressure: up to 8.3 bar. Operating temperature: from -40°C to +82°C.
