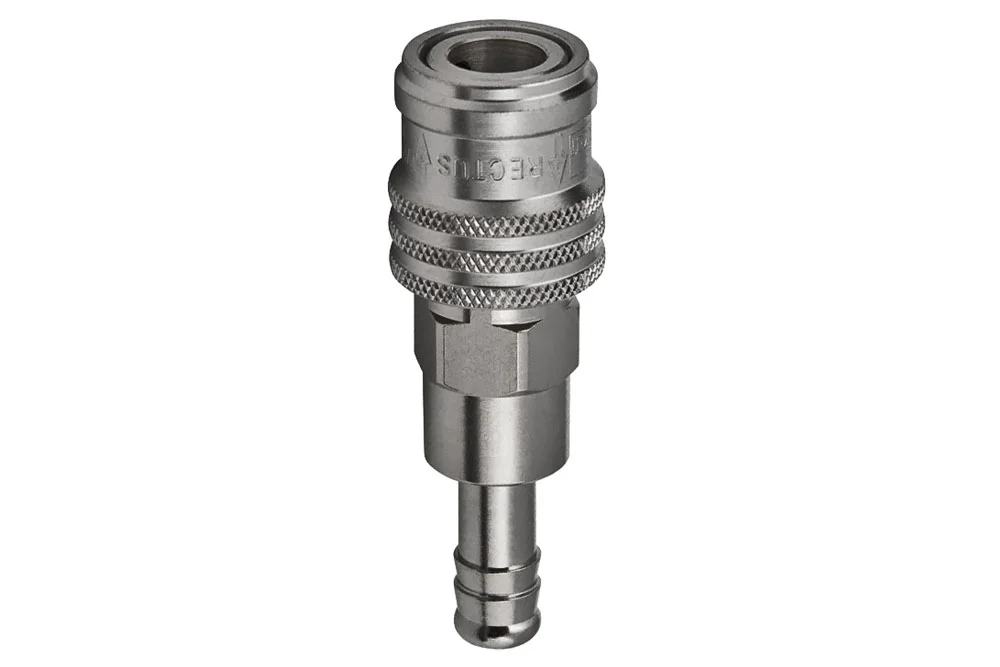

Quick coupling socket DN7.8 with valve, non-pressure disconnected, with hose end, series 1600KE
Disconnectable non-pressurized quick coupling socket with valve, DN7.8, with hose end, series 1600KE. Safely disconnectable quick coupling for air, compliant with ISO 4414 and EN 983, protects the operator from potential hose whipping effects and reduces disconnection noise. Designed primarily for compressed air. Safe operation of the coupling can only be guaranteed when used with plugs made of hardened steel (series 25KA). Do not use for direct connection of pneumatic tools, as vibrations and oscillations will shorten the lifespan of the coupling. Performance: 2020 l/min (Pe = 6 bar, Δp=0.5 bar – air). Working pressure: 2÷12 bar. Material: nickel-plated brass (body), hardened steel (locking sleeve), galvanized steel (socket), brass (valve), stainless steel (spring, balls, and ring). Sealing: NBR. Operating temperature: from -20°C to +100°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Disconnectable non-pressurized quick coupling socket with valve, DN7.8, with hose end, series 1600KE. Safely disconnectable quick coupling for air, compliant with ISO 4414 and EN 983, protects the operator from potential hose whipping effects and reduces disconnection noise. Designed primarily for compressed air. Safe operation of the coupling can only be guaranteed when used with plugs made of hardened steel (series 25KA). Do not use for direct connection of pneumatic tools, as vibrations and oscillations will shorten the lifespan of the coupling. Performance: 2020 l/min (Pe = 6 bar, Δp=0.5 bar – air). Working pressure: 2÷12 bar. Material: nickel-plated brass (body), hardened steel (locking sleeve), galvanized steel (socket), brass (valve), stainless steel (spring, balls, and ring). Sealing: NBR. Operating temperature: from -20°C to +100°C.
Additional information
| Material | B – brass (bronze) |
|---|
