Is the Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar compatible with other DN7.2â7.8 quick couplings?

Yes. The Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar is compatible with other DN7.2â7.8 Eurostandard quick couplings. It uses the popular Eurostandard DN7.2 profile and is specified as interchangeable with all quick couplings from other manufacturers in the DN7.2 Ã· 7.8 range. Working pressure up to 35 bar, brass body, NBR sealing, and standard dimensions ensure cross-compatibility for pneumatic installations (air, nitrogen, other non-flammable gases).

Can the Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar be used with nitrogen and other non-flammable gases?

Yes. Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar is suitable for nitrogen and other non-flammable gases. Description specifies use in pneumatic installations including air, nitrogen, and other non-flammable gases, with brass body, NBR sealing, working pressure up to 35 bar and operating temperature -20Â°C to +100Â°C. Ensure compatibility of NBR with your specific gas and operating conditions; for aggressive gases or temperatures outside the stated range, consult manufacturer.

What maintenance is required for the Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar?

Routine maintenance for the Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar: - Visual inspection: regularly (weekly to monthly depending on use) check for visible damage, corrosion, cracks or deformation of the brass body and hose socket. Ensure the angled ribbed hose end (45Â° or 90Â° variant) is intact and free of wear that could cause hose slippage. - Seal check and replacement: inspect the NBR sealing (O-rings, valve seals) for hardening, cuts or swelling. Replace seals if any deterioration is found or at least annually in demanding applications. - Valve function: operate the valve several times to confirm smooth opening/closing and no leakage when closed. If sticking or leakage occurs, clean and service the valve components and replace seals as needed. - Cleanliness: keep the coupling free of dirt, dust and debris. Blow out with dry compressed air before connection, and wipe external surfaces with a clean, dry cloth. Avoid solvents that damage NBR. - Lubrication: use only manufacturer-recommended lubricants compatible with NBR and non-flammable gases. Lightly lubricate moving parts if sticking is observed; do not over-lubricate. - Hose connection: ensure the hose is correctly fitted to the ribbed hose end and secured with an appropriate clamp. Check for hose wear at the angled connection and replace hoses showing abrasion or bulging. - Pressure/leak test: periodically test under working pressure (up to 35 bar) for leaks using soapy water or an approved leak detector. Perform tests after maintenance, seal replacement or hose changes. - Temperature exposure: avoid prolonged exposure beyond -20Â°C to +100Â°C. If used near limits, increase inspection frequency. - Interchangeability checks: when coupling with other Eurostandard DN7.2â7.8 parts, verify proper fit and leak-free connection. Keep a maintenance log noting inspections, replacements and pressure tests to ensure safe, reliable operation.

Air outlet coupling DN7,2 Eurostandard with valve, angled, with hose socket, 35 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

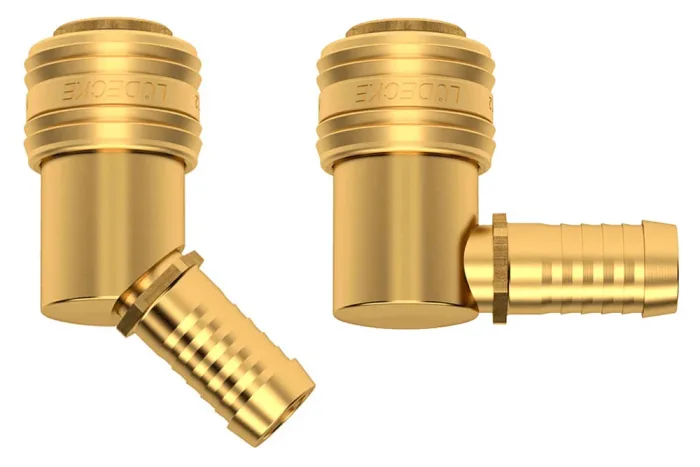

Quick coupling socket with a popular Eurostandard DN7.2 profile, with valve, angled, with hose end, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The socket is available in two variants, with a ribbed hose end inclined at an angle of 45° or 90°. The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. Sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72-GK-06-45	45° quick coupling socket DN7.2, for 6 mm hose, brass	6	35	In stock	Enquiry
TP-ES72-GK-06-90	90° quick coupling socket DN7.2, for 6 mm hose, brass	6	35	In stock	Enquiry
TP-ES72-GK-09-45	45° quick coupling socket DN7.2, for 9 mm hose, brass	8	35	In stock	Enquiry
TP-ES72-GK-09-90	90° quick coupling socket DN7.2, for 9 mm hose, brass	8	35	In stock	Enquiry
TP-ES72-GK-13-45	45° quick coupling socket DN7.2, for 13 mm hose, brass	12	35	In stock	Enquiry
TP-ES72-GK-13-90	90° quick coupling socket DN7.2, for 13 mm hose, brass	12	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with a popular Eurostandard DN7.2 profile, with valve, angled, with hose end, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The socket is available in two variants, with a ribbed hose end inclined at an angle of 45° or 90°. The quick couplings are interchangeable with all quick couplings from other manufacturers according to Eurostandard DN7.2 ÷ 7.8. Working pressure: up to 35 bar. Material: brass. Sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C.
