Is the Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA compatible with other Eurostandard DN7.2â7.8 couplers?

Yes. The Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA is compatible with other Eurostandard DN7.2â7.8 couplers from other manufacturers. The product description explicitly states the sockets are interchangeable with all Eurostandard DN7.2 Ã· 7.8, and it uses the common DN7.2 Eurostandard profile.

Can the Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA be used with pneumatic systems at 6 bar continuous pressure?

Yes. Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA can be used at 6 bar continuous pneumatic pressure. The product data lists Pe = 6 bar and a working pressure of 35 bar; flow rate for air is 1070 l/min with Îp = 0.5 bar, sealing is NBR, and materials are suitable for typical pneumatic service. Ensure correct hose fitting and ambient/medium temperature within -20Â°C to +100Â°C.

Does the Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA require regular lubrication?

Quick-connection socket DN7.2 Eurostandard with valve, with hose socket, brass, series 26KA does not require regular lubrication for normal pneumatic use. Materials (brass body, brass sleeve and valve, AISI steels for spring/locking pins, NBR seals) and the operating temperature range (-20Â°C to +100Â°C) are typical for maintenanceâfree service in air systems; internal sliding parts are designed to perform without routine greasing. However, periodic inspection and light maintenance are recommended in the following cases: - Harsh environments (dust, moisture, chemical exposure). inspect and, if needed, clean and apply a light compatible lubricant to moving parts and seals. - High duty cycles or heavy mechanical wear. monitor for signs of sticking, leakage, or wear; lubricate per manufacturer recommendations if performance degrades. - Use with fluids other than air (e.g., water) or temperatures near limits. check seals and consider compatible lubrication. If lubrication is applied, use a lubricant compatible with brass, AISI steels and NBR seals and safe for the media (air). Follow any specific manufacturer maintenance instructions when available.

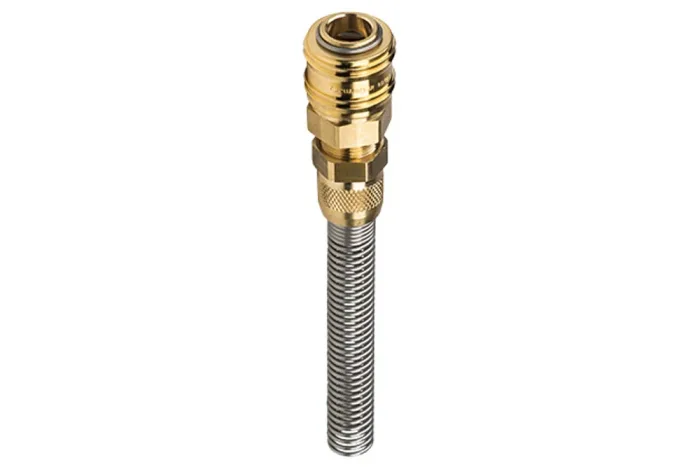

Socket quick coupling DN7.2 Eurostandard with valve, with fitting for hose, brass, series 26KA

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Socket quick coupling with a popular Eurostandard DN7.2 profile with valve, with fitting for hose, intended primarily for air. is available in three variants: with fitting serrated, with fitting for hose thermoplastic with a nut and with fitting for hose thermoplastic with a nut and spring protective, protecting hose against abrasion, kinking, czy damage mechanical. socket are interchangeable of all acc. to Eurostandard DN7.2 ÷ 7.8 from other manufacturers. flow capacity: 1070 l/min, Pe = 6 bar, Δp=0.5 bar – air, 16.5 l/min, Δp=1 bar, Kv=0.99 – water. Working pressure: 35 bar. Material: brass (body, sleeve, valve), steel AISI 301 (spring and ring), steel AISI 420 (pins locking). Sealing: NBR. Operating temperature: od -20°C for +100°

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RE-26KAKK08MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 6x8 mm, spring, brass, NBR	6	35	In stock	Enquiry
RE-26KAKK10MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 8x10 mm, spring, brass, NBR	8	35	In stock	Enquiry
RE-26KAKK12MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 9x12 mm, spring, brass, NBR	8	35	In stock	Enquiry
RE-26KAKO06MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 4x6 mm, brass, NBR	4	35	In stock	Enquiry
RE-26KAKO08MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 6x8 mm, brass, NBR	6	35	In stock	Enquiry
RE-26KAKO10MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 8x10 mm, brass, NBR	8	35	In stock	Enquiry
RE-26KAKO12MPX	Quick coupling socket 26KA DN7.2, for a plastic hose 9x12 mm, brass, NBR	8	35	In stock	Enquiry
RE-26KATF06MPX	Quick coupling socket 26KA DN7.2, for 6 mm hose, brass, NBR	6	35	In stock	Enquiry
RE-26KATF08MPX	Quick coupling socket 26KA DN7.2, for 8 mm hose, brass, NBR	8	35	In stock	Enquiry
RE-26KATF09MPX	Quick coupling socket 26KA DN7.2, for 9 mm hose, brass, NBR	8	35	In stock	Enquiry
RE-26KATF10MPX	Quick coupling socket 26KA DN7.2, for 10 mm hose, brass, NBR	10	35	In stock	Enquiry
RE-26KATF13MPX	Quick coupling socket 26KA DN7.2, for 13 mm hose, brass, NBR	12	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket quick coupling with a popular Eurostandard DN7.2 profile with valve, with fitting for hose, intended primarily for air. is available in three variants: with fitting serrated, with fitting for hose thermoplastic with a nut and with fitting for hose thermoplastic with a nut and spring protective, protecting hose against abrasion, kinking, czy damage mechanical. socket are interchangeable of all acc. to Eurostandard DN7.2 ÷ 7.8 from other manufacturers. flow capacity: 1070 l/min, Pe = 6 bar, Δp=0.5 bar – air, 16.5 l/min, Δp=1 bar, Kv=0.99 – water. Working pressure: 35 bar. Material: brass (body, sleeve, valve), steel AISI 301 (spring and ring), steel AISI 420 (pins locking). Sealing: NBR. Operating temperature: od -20°C for +100°
