Is the Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar compatible with other Eurostandard DN7.2â7.8 couplers?

Yes. The Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar is compatible with other Eurostandard DN7.2â7.8 couplers. The product uses the popular Eurostandard DN7.2 profile and is specified as interchangeable with all Eurostandard DN7.2 Ã· 7.8 couplers from other manufacturers. Operating specs (up to 35 bar, brass body, NBR sealing, flow 1100 l/min at Pe=6 bar Îp=0.5 bar, temperature -20Â°C to +100Â°C) align with standard pneumatic Eurostandard coupler requirements.

Can the Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar be used with inert gases like nitrogen at 35 bar?

Yes. The Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar can be used with inert gases like nitrogen at 35 bar. The product description explicitly states suitability for air, nitrogen and other nonâflammable gases, with a working pressure up to 35 bar, brass body, NBR seals and an operating temperature range of -20Â°C to +100Â°C. Ensure NBR compatibility with any specific gas contaminants and confirm fittings/threads match your system before use.

Does the Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar require special maintenance for NBR seals?

Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar does not require any special maintenance specifically because of NBR seals, provided operating conditions remain within the stated limits. Standard recommended care: - Inspect seals periodically for wear, cuts, hardening or swelling; replace if damaged. - Keep mating surfaces and threads clean from dirt, debris and corrosive residues to avoid accelerated seal wear. - Ensure media and temperature stay within specs: NBR is suitable for air, nitrogen and other nonâflammable gases at -20Â°C to +100Â°C; avoid prolonged exposure above 100Â°C or to incompatible chemicals (strong acids, ketones, some oils/solvents) which can degrade NBR. - Use compatible lubricants (if needed). light mineral or synthetic lubricants compatible with NBR; avoid silicone or petroleum-based products known to swell NBR unless manufacturer confirms compatibility. - Operate within pressure limits (up to 35 bar) and avoid pressure spikes beyond spec. If your application involves aggressive chemicals, oils, extreme temperatures, or oxygen-rich environments, consider consulting the manufacturer or switching to a different seal material.

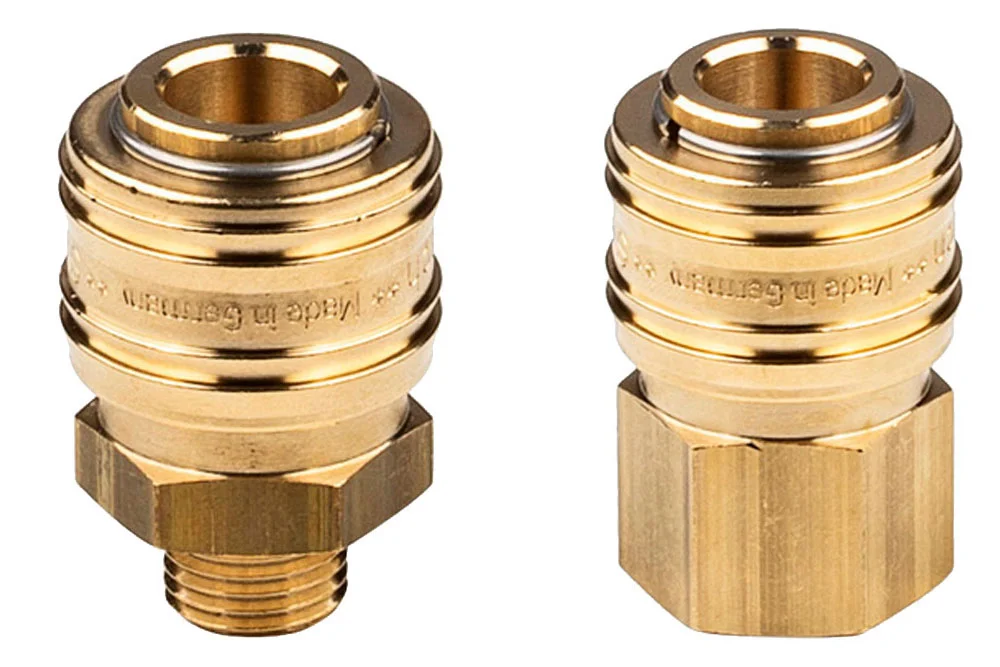

Quick-connection socket for air DN7.2 Eurostandard with valve, threaded, 35 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Quick coupling socket with a popular Eurostandard DN7.2 profile with a valve, with external or internal BSP thread, for use in pneumatic installations (air, nitrogen, other non-flammable gases). The quick couplings are interchangeable with all Eurostandard DN7.2 ÷ 7.8 from other manufacturers. Working pressure: up to 35 bar. Material: brass. Sealing: NBR. Flow rate: 1100 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES72-GW-02	Quick coupling socket DN7.2, G 1/8" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GW-04	Quick coupling socket DN7.2, 1/4" BSP thread, brass	-	35	In stock	Enquiry
TP-ES72-GW-06	Quick coupling socket DN7.2, G 3/8" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GW-08	Quick coupling socket DN7.2, G 1/2" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GW-12	Quick coupling socket DN7.2, G 3/4" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GZ-02	Quick coupling socket DN7.2, GZ 1/8" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GZ-04	Quick coupling socket DN7.2, GZ 1/4" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GZ-06	Quick coupling socket DN7.2, GZ 3/8" BSP, brass	-	35	In stock	Enquiry
TP-ES72-GZ-08	Quick coupling socket DN7.2, GZ 1/2" BSP, brass	-	35	In stock	Enquiry
