Can the Quick-connection socket for air with MINI valve DN5, with hose connection, brass, 35 bar be used with nitrogen and other non-flammable gases?

Yes. The Quick-connection socket for air with MINI valve DN5, with hose connection, brass, 35 bar can be used with nitrogen and other non-flammable gases. The product description explicitly lists use for air, nitrogen and other non-flammable gases, and its materials and specifications (brass body, NBR seals, 35 bar working pressure, flow rate 510 l/min at Pe=6 bar) are suitable for typical inert/non-flammable gas applications within the stated temperature range (â20Â°C to +100Â°C). Note: Verify chemical compatibility of NBR seals with any specific gas additives or contaminants and ensure operating pressure/temperature conditions match your application.

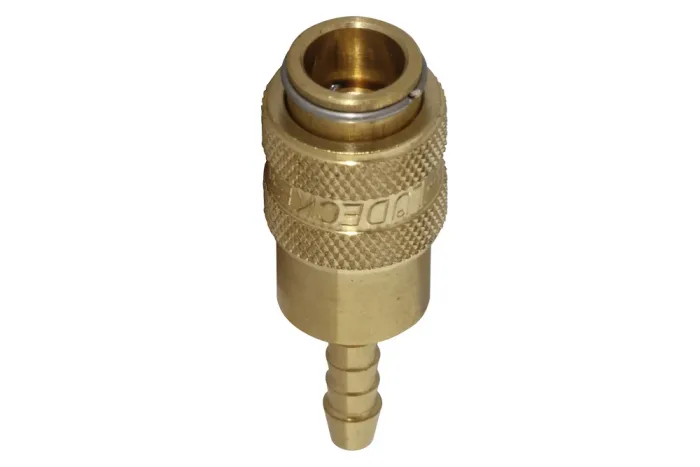

Quick-connection socket for air with MINI valve DN5, with hose connection, brass, 35 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

Quick coupling socket with Eurostandard MINI DN 5 valve, with hose connection, widely used in the industry (for air, nitrogen, and other non-flammable gases), where compact dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and EURO DN 5 quick couplings from other manufacturers. Can be operated with one hand. On special order, quick coupling sockets with colored anodized aluminum sleeves for line identification are available. Working pressure: 35 bar. Flow rate: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C. Sealing: NBR. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
LU-ESM-4-T	MINI DN5 quick coupling socket, for 4 mm hose, brass	4	35	In stock	Enquiry
LU-ESM-5-T	MINI DN5 quick coupling socket, for 5 mm hose, brass	5	35	In stock	Enquiry
LU-ESM-6-T	MINI DN5 quick coupling socket, for 6 mm hose, brass	6	35	In stock	Enquiry
LU-ESM-8-T	MINI DN5 quick coupling socket, for 8 mm hose, brass	8	35	In stock	Enquiry
LU-ESM-9-T	Mini quick coupling socket DN5, for 9 mm hose, brass	10	35	In stock	Enquiry
MU-2768	Quick coupling socket DN 5 with a 9 mm hose fitting	10	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with Eurostandard MINI DN 5 valve, with hose connection, widely used in the industry (for air, nitrogen, and other non-flammable gases), where compact dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and EURO DN 5 quick couplings from other manufacturers. Can be operated with one hand. On special order, quick coupling sockets with colored anodized aluminum sleeves for line identification are available. Working pressure: 35 bar. Flow rate: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C. Sealing: NBR. Material: brass.
