Is the Quick-connection socket for air with MINI valve DN5, threaded, brass, 35 bar compatible with RECTUS 21 and other EURO DN5 couplings?

Yes . the Quick-connection socket for air with MINI valve DN5, threaded, brass, 35 bar is compatible with RECTUS 21 and other EURO DN5 couplings. The product description explicitly states it is interchangeable with RECTUS 21 and quick couplings with the EURO DN5 profile from other manufacturers. It uses the Eurostandard MINI DN5 profile, is designed for air and other non-flammable gases, and operates at up to 35 bar with NBR sealing and brass construction.

Can the Quick-connection socket for air with MINI valve DN5, threaded, brass, 35 bar be used with nitrogen and other non-flammable gases?

Yes. The Quick-connection socket for air with MINI valve DN5, threaded, brass, 35 bar can be used with nitrogen and other non-flammable gases. The product description explicitly lists use for air, nitrogen, and other non-flammable gases; it is rated to 35 bar, has NBR sealing, and is designed for industrial gas service with good flow characteristics (510 l/min at Pe=6 bar, Îp=0.5 bar). Ensure gas compatibility with brass and NBR for your specific application and verify operating temperature range (-20Â°C to +100Â°C) and safety/regulatory requirements for your installation.

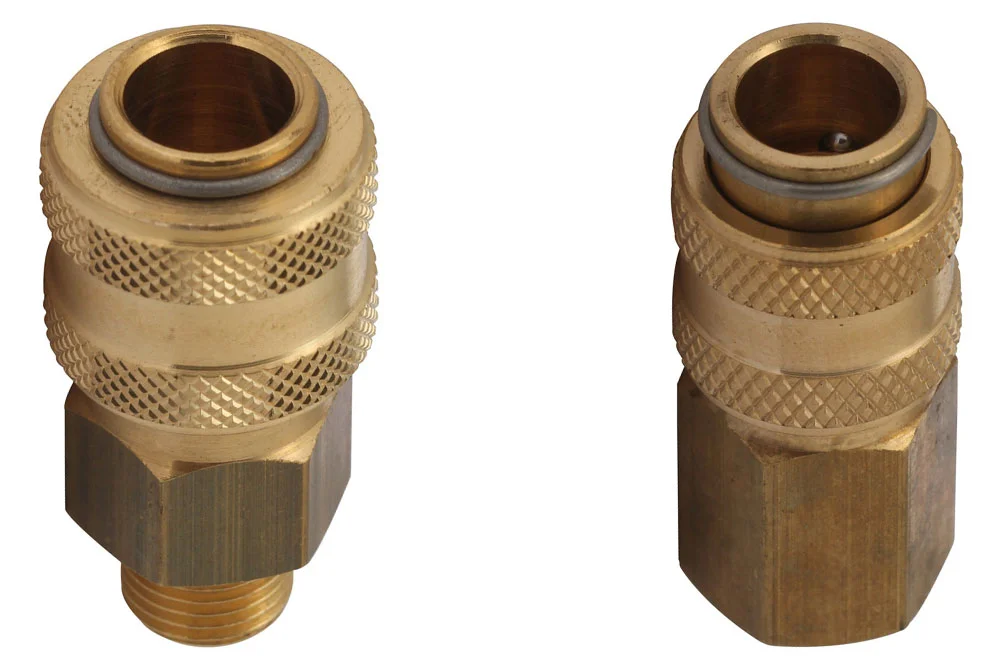

Quick-connection socket for air with MINI valve DN5, threaded, brass, 35 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

Quick coupling socket with Eurostandard MINI DN 5 valve, with external or internal BSP thread, widely used in the industry (for air, nitrogen, and other non-flammable gases), where small dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and quick couplings with EURO DN 5 profile from other manufacturers. Can be operated with one hand. On special order, quick coupling sockets with colored anodized aluminum sleeves for line identification are available. Working pressure: 35 bar. Flow: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C. Sealing: NBR. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
LU-ESM-14-A	Mini quick coupling socket DN5, GZ 1/4" BSP, brass	-	35	In stock	Enquiry
LU-ESM-14-I	Mini quick coupling socket DN5, 1/4" BSP thread, brass	-	35	In stock	Enquiry
LU-ESM-18-A	Mini quick coupling socket DN5, GZ 1/8" BSP, brass	-	35	In stock	Enquiry
LU-ESM-18-I	MINI DN5 quick coupling socket, 1/8" BSP thread, brass	-	35	In stock	Enquiry
LU-ESM-38-A	Mini quick coupling socket DN5, GZ 3/8" BSP, brass	-	35	In stock	Enquiry
LU-ESM-38-I	Mini quick coupling socket DN5, 3/8" BSP thread, brass	-	35	In stock	Enquiry
MU-2706	Quick coupling socket DN 5 with 1/8" BSP female thread	-	35	In stock	Enquiry
MU-2707	Quick coupling socket DN 5 with 1/4" BSP female thread	-	35	In stock	Enquiry
MU-2708	Quick coupling socket DN 5 with 3/8" BSP female thread	-	35	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick coupling socket with Eurostandard MINI DN 5 valve, with external or internal BSP thread, widely used in the industry (for air, nitrogen, and other non-flammable gases), where small dimensions and high flow efficiency with low pressure drop are required. Interchangeable with RECTUS 21 and quick couplings with EURO DN 5 profile from other manufacturers. Can be operated with one hand. On special order, quick coupling sockets with colored anodized aluminum sleeves for line identification are available. Working pressure: 35 bar. Flow: 510 l/min, Pe=6 bar, Δp=0.5 bar (air). Operating temperature: from -20°C to +100°C. Sealing: NBR. Material: brass.
