Is the Quick coupling socket for injection molds with GZ and valve, DYROS series 6 compatible with both metric and BSP threads for cooling liquid systems?

Yes. The Quick coupling socket for injection molds with GZ and valve, DYROS series 6 is available with either metric or BSP external threads, so it is compatible with cooling liquid systems using either thread standard. It is specifically designed for cooling liquids in plastic processing and other technical fields, made of brass with stainless steel retaining rings/springs/balls, Viton sealing, and rated to 15 bar working pressure.

Can the Quick coupling socket for injection molds with GZ and valve, DYROS series 6 withstand continuous operation at 15 bar with Viton seals for cooling liquids?

Yes. The Quick coupling socket for injection molds with GZ and valve, DYROS series 6, with Viton seals and a rated working pressure of 15 bar, is designed for cooling liquids in plastic processing and thus can withstand continuous operation at 15 bar. Materials (brass body, treated stainless steel rings/springs/balls) and Viton sealing are suitable for typical cooling fluids and continuous service at that pressure. Ensure compatibility of Viton with your specific cooling liquid and verify operating temperature limits and any dynamic cycling requirements with the supplier for long-term reliability.

Does the Quick coupling socket for injection molds with GZ and valve, DYROS series 6 use stainless steel balls and springs for corrosion resistance?

Yes. The Quick coupling socket for injection molds with GZ and valve, DYROS series 6 uses stainless steel balls and springs (treated stainless steel) for corrosion resistance; all other components are brass and sealing is Viton.

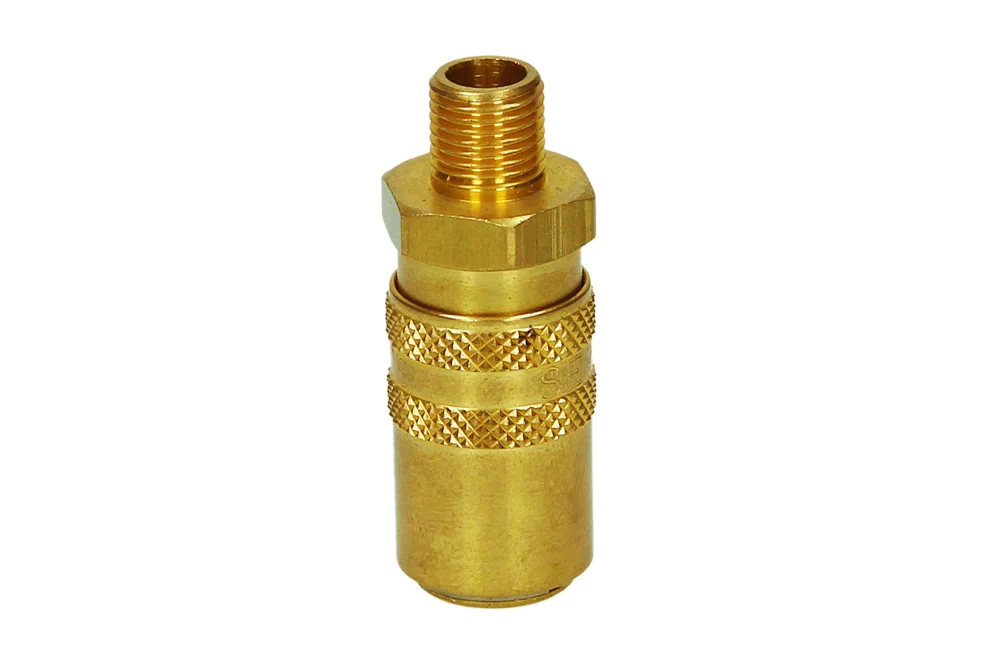

Quick coupling socket for injection molds with GZ and valve, DYROS series 6

Additional information

Material	B – brass (bronze)

DYROS series 6 quick coupling socket with external thread and shut-off valve. Available with metric or BSP thread. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while the retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
DY-LKUM610	Socket DN 6 with GZ M10x1, with valve	-	15
DY-LKUM645	Socket DN 6 with GZ M14x1.5, with valve	-	15
DY-LKUM665	Socket DN 6 with GZ M16x1.5, with valve	-	15
DY-LKUR614	Socket DN 6 with GZ 1/4" BSP, with valve	-	15
DY-LKUR618	Socket DN 6 with GZ 1/8" BSP, with valve	-	15
DY-LKUR638	Socket DN 6 with GZ 3/8" BSP, with valve	-	15

DYROS series 6 quick coupling socket with external thread and shut-off valve. Available with metric or BSP thread. Designed for cooling liquids in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while the retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.
