Is the Quick connector socket for water DN11.8 with GZ, stainless steel compatible with standard water guns and hoses at 200 bar?

Yes . the Quick connector socket for water DN11.8 with GZ, stainless steel is compatible with standard water guns and hoses rated to 200 bar, provided the mating fittings match the DN11.8/GZ thread and coupling style. The product description specifies it facilitates quick connection of the water gun to the hose or other washing accessories, lists working pressure as 200 bar, and uses durable materials (AISI 303/304L body, AISI 316 balls) with Viton seals and temperature rating up to +100Â°C. These specs indicate it is designed to handle 200 bar system pressure and standard high-pressure washing components, but ensure thread and coupling compatibility (DN11.8 with GZ external thread) with your specific gun/hose before use.

Can the Quick connector socket for water DN11.8 with GZ, stainless steel be used with hot water up to +100Â°C under 200 bar?

Yes. The Quick connector socket for water DN11.8 with GZ, stainless steel can be used with hot water up to +100Â°C at working pressures up to 200 bar. Its construction-AISI 303/304L body, AISI 316 ball, and Viton sealing-supports the specified operating temperature (up to +100Â°C) and the rated working pressure (200 bar). Ensure proper installation and maintenance, and verify compatibility with your specific fluid and system conditions before use.

Does the Quick connector socket for water DN11.8 with GZ, stainless steel require specific maintenance for Viton seals at 200 bar?

Quick connector socket for water DN11.8 with GZ, stainless steel uses Viton seals and is rated for 200 bar and up to +100Â°C. Viton (FKM) is chemically resistant and suitable for high-pressure water applications, but to ensure reliable long-term performance follow these maintenance points: - Regular inspection: check seals for cuts, cracks, hardening or swelling before use and during routine service intervals. Replace if any damage or excessive wear is visible. - Cleaning: flush the connector with clean water after use to remove debris, detergents or abrasive particles that can abrade seals. Avoid solvents incompatible with Viton. - Lubrication: where recommended, use a thin film of a lubricant compatible with Viton (silicone- or PTFE-based lubricants are generally safe) to ease assembly and reduce wear. Avoid petroleum-based oils that can degrade some elastomers. - Avoid exceeding limits: do not exceed the stated working pressure (200 bar) or maximum temperature (+100Â°C); prolonged exposure above these limits accelerates seal ageing. - Chemical compatibility: verify that any cleaning agents or chemicals used in the system are compatible with Viton. Strong acids, ketones or certain amine-containing cleaners can attack elastomers. - Storage and spare parts: store spare Viton seals in a cool, dark place away from ozone and sunlight. Replace seals at scheduled intervals if the connector is used frequently or in demanding conditions. Following these practices will minimize seal failure and maintain performance of the Quick connector socket for water DN11.8 with GZ, stainless steel.

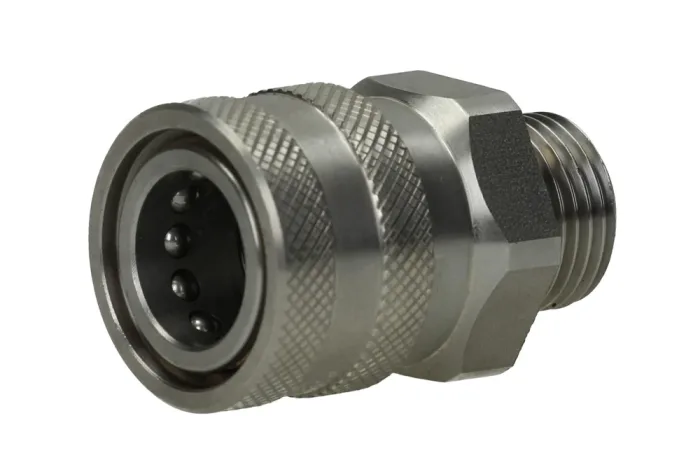

Socket water quick coupling DN11.8 with male thread, steel stainless

All products, Quick couplings for water/

Additional information

Material	SS – stainless steel

Socket quick coupling DN11.8 with a thread external facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Material balls: steel AISI 316. Sealing: Viton. Working pressure: 200 bar. Operating temperature: up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AK-COUPL-06-M	Quick coupling socket DN11.8, 3/8" BSP male, stainless steel, Viton	-	200	In stock	0 zł		Enquiry
AK-COUPL-08-M	Quick coupling socket DN11.8, 1/2" BSP male, stainless steel, Viton	-	200	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket quick coupling DN11.8 with a thread external facilitating fast connection spray gun for water with a hose or with other accessories for washing. Material: steel AISI 303/304L. Material balls: steel AISI 316. Sealing: Viton. Working pressure: 200 bar. Operating temperature: up to +100°C.
