Is the Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING compatible with ISO-B quick couplings from other manufacturers for gas media?

Yes. The Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING is described as interchangeable with ISO-B quick couplings from other manufacturers and is specified for gas media. Its construction.brass body, two O-rings, retaining ring and integrated valve.supports compatibility and secure sealing. Sealing materials offered (NBR, Viton, EPDM) cover broad temperature ranges and chemical resistance suitable for various gases; working pressure up to 200 bar (size-dependent) and a 4:1 safety factor further support safe gas service. Ensure you match the ISO-B standard size, thread type (BSP or NPT), sealing material appropriate for the specific gas and temperature, and verify pressure rating for your coupling size before use.

Can the Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING be used for steam and high-temperature gases?

Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING can be used for steam and high-temperature gases provided the following conditions are met: use Viton (FKM) seals for temperature up to +204Â°C; ensure the selected size and coupling variant is rated for the required working pressure (product supports up to 200 bar depending on size) and maintain the 4:1 safety factor; confirm compatibility of brass body with your specific gas/steam and operating environment. Do not use NBR or EPDM seals for temperatures above their limits. If operating temperature or media are at or above the Viton limit, or if corrosive chemicals are present, select a different seal material or consult manufacturer verification before use.

Can the Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING be used with gases at pressures up to 200 bar?

Yes. Quick-connect socket with GW (3/16" Ã· 1"), with valve, brass, PERFECTING can be used with gases at pressures up to 200 bar, with conditions: - The product description specifies use for gases and a maximum working pressure up to 200 bar (depending on coupling size). - Ensure the selected size/version of the coupling is rated to 200 bar. - Confirm compatibility of the chosen Oâring material with the specific gas and operating temperature: NBR (â40Â°C to +121Â°C), Viton (â29Â°C to +204Â°C), EPDM (â54Â°C to +149Â°C). - Observe the stated safety factor 4:1 and follow applicable standards and installation/testing procedures for highâpressure gas service.

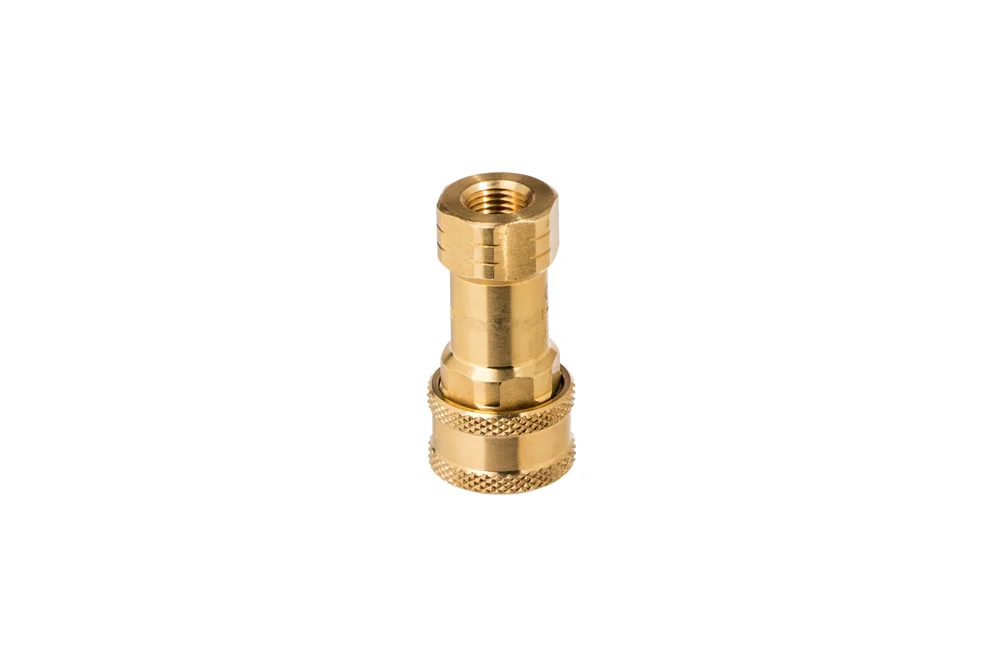

Quick-coupling socket with female thread (3/16″ ÷ 1″), with a valve, brass, PERFECTING

All products, Hydraulic quick couplings/

Additional information

Material	B – brass (bronze)
Standard length [m]	10

Quick-coupling socket with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, for gaseous media. It has two O-rings and a support ring. interchangeable with quick coupling ISO-B from other manufacturers. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 200 bar (depending on the quick-coupling size), Safety factor: 4:1. Material: brass. Sealing: NBR (from -40°C to +121°C), Viton (from -29°C to +204°C), EPDM (from -54°C to +149°C).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
PC-1HF1-B	Socket with 1/8" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-2HBF2-B	Socket with 1/4" BSP female, with a valve, brass	-	200	In stock	Enquiry
PC-2HF2-B	Socket with 1/4" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-3HBF3-B	Socket with 3/8" BSP female, with a valve, brass	-	200	In stock	Enquiry
PC-3HF3-B	Socket with 3/8" NPT female, with a valve, brass	-	200	In stock	Enquiry
PC-4HBF4-B	Socket with 1/2" BSP female, with a valve, brass	-	175	In stock	Enquiry
PC-4HF4-B	Socket with 1/2" NPT female, with a valve, brass	-	175	In stock	Enquiry
PC-6HBF6-B	Socket with 3/4" BSP female, with a valve, brass	-	138	In stock	Enquiry
PC-6HF6-B	Socket with 3/4" NPT female, with a valve, brass	-	138	In stock	Enquiry
PC-8HBF8-B	Socket with 1" BSP female, with a valve, brass	-	100	In stock	Enquiry
PC-8HBF8-B-E	Socket with 1" BSP female, with a valve, brass, EPDM	-	100	In stock	Enquiry
PC-8HF8-B	Socket with 1" NPT female, with a valve, brass	-	100	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling socket with a BSP or NPT female thread (3/16″ ÷ 1″), with a valve, for gaseous media. It has two O-rings and a support ring. interchangeable with quick coupling ISO-B from other manufacturers. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 200 bar (depending on the quick-coupling size), Safety factor: 4:1. Material: brass. Sealing: NBR (from -40°C to +121°C), Viton (from -29°C to +204°C), EPDM (from -54°C to +149°C).
