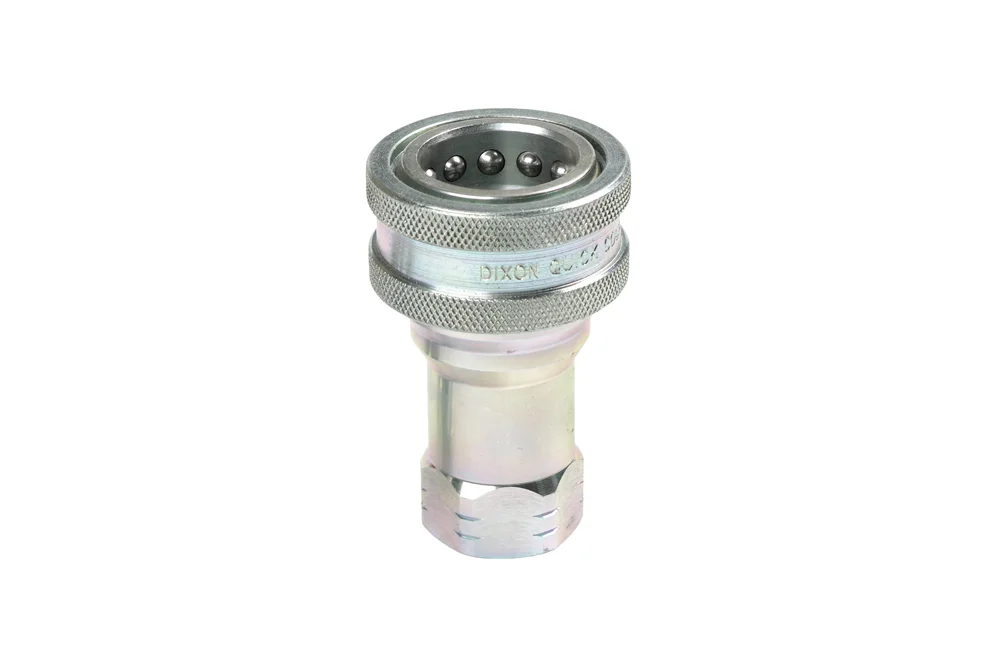

Quick-connect socket with GW (3/16″ ÷ 1″), with valve, galvanized steel, PERFECTING
Quick coupling socket with internal BSP or NPT thread (3/16″ ÷ 1″), with valve. Ideally suited for gas media, as it features two O-rings and a backup ring, can also be successfully used in hydraulic systems for hydraulic oil, as well as in industry for water, steam, fuels, oils, or chemicals. Interchangeable with ISO-B quick couplings from other manufacturers. Working pressure: up to 345 bar (depending on the size of the coupling), (safety factor 4:1). Material: carbon steel, galvanized. Sealing: NBR. Operating temperature: from -40°C to +121°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Quick coupling socket with internal BSP or NPT thread (3/16″ ÷ 1″), with valve. Ideally suited for gas media, as it features two O-rings and a backup ring, can also be successfully used in hydraulic systems for hydraulic oil, as well as in industry for water, steam, fuels, oils, or chemicals. Interchangeable with ISO-B quick couplings from other manufacturers. Working pressure: up to 345 bar (depending on the size of the coupling), (safety factor 4:1). Material: carbon steel, galvanized. Sealing: NBR. Operating temperature: from -40°C to +121°C.
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Standard length [m] | 10, 2 |
