Is the Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN suitable for potable water and food-grade applications?

Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN . based on the provided description . is designed for industrial connections and is made of brass, suitable for water, air, chemicals and petrochemical products, and pressures up to several dozen bar. However, suitability for potable water and foodâgrade applications cannot be confirmed solely from that description. Key points: - Material: Brass can be acceptable for potable water and food use, but only if it meets specific standards (e.g., leadâfree brass alloys, NSF/ANSI 61 for drinking water, or relevant EU/WRAS/KTW approvals). The description does not state alloy composition or certification. - Surface and plating: Any coatings or platings (e.g., leaded solder, nickel, chrome) must be foodâsafe; none are specified. - Seals and assembly: If the fitting uses seals, threads or joint materials (PTFE tape, gasket compounds) must be foodâgrade; not mentioned. - Manufacturer certifications: For regulatory compliance you need manufacturer declarations, test reports or certifications (NSF, WRAS, ACS, etc.). Conclusion: Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN may be mechanically suitable for water, but you must obtain specific material data and relevant potableâwater/foodâgrade certifications from the manufacturer before using it in potable water or food applications. Without those documents, do not assume it is approved.

Does the Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN resist corrosion in saltwater environments?

Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN is made of brass and intended for use with water, air, chemicals and petrochemical products under industrial pressures. Brass offers good general corrosion resistance, but in saltwater (marine) environments it is susceptible to dezincification and galvanic corrosion, especially under prolonged exposure, high salinity, or where dissimilar metals contact. For intermittent or short-term exposure it may perform acceptably if properly protected (coatings, fittings isolation), but for continuous immersion or critical marine applications stainless steel or specially treated/brass alloys designed for seawater are recommended.

Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN

Q: Can the Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN be used with hydraulic oils?

Yes. the Reducing adapter with BSP, NPT and metric male threads on both sides, brass, type RN can be used with hydraulic oils, with some caveats. Why: the product description states it is intended for industrial installations with working pressures up to several dozen bar and for use with petrochemical products, which includes hydraulic oils. Brass is commonly compatible with most hydraulic fluids (mineral-based oils); the adapterâs design for various media (water, air, chemicals, petrochemical products) further supports suitability. Caveats: - Pressure: confirm the specific size/manufacturer rated working pressure meets your hydraulic systemâs maximum pressure. âSeveral dozen barâ may be insufficient for highâpressure hydraulic systems (e.g., >200 bar). - Temperature and fluid type: verify compatibility with the specific hydraulic oil formulation (additives, synthetic fluids) and operating temperature range; some synthetic fluids or aggressive additives can affect brass over time. - Sealing and thread type: ensure proper sealing method (sealant, Oâring, thread form) for hydraulic service to prevent leaks under pressure. - Mechanical stress and vibration: assess whether the adapterâs flange/hex shape and material strength are adequate for your installation conditions. Recommendation: check the adapterâs detailed pressure rating, manufacturer compatibility data, and the hydraulic oil specification before use.

All products, Threaded couplings and adapters/

Additional information

Material	B – brass (bronze)

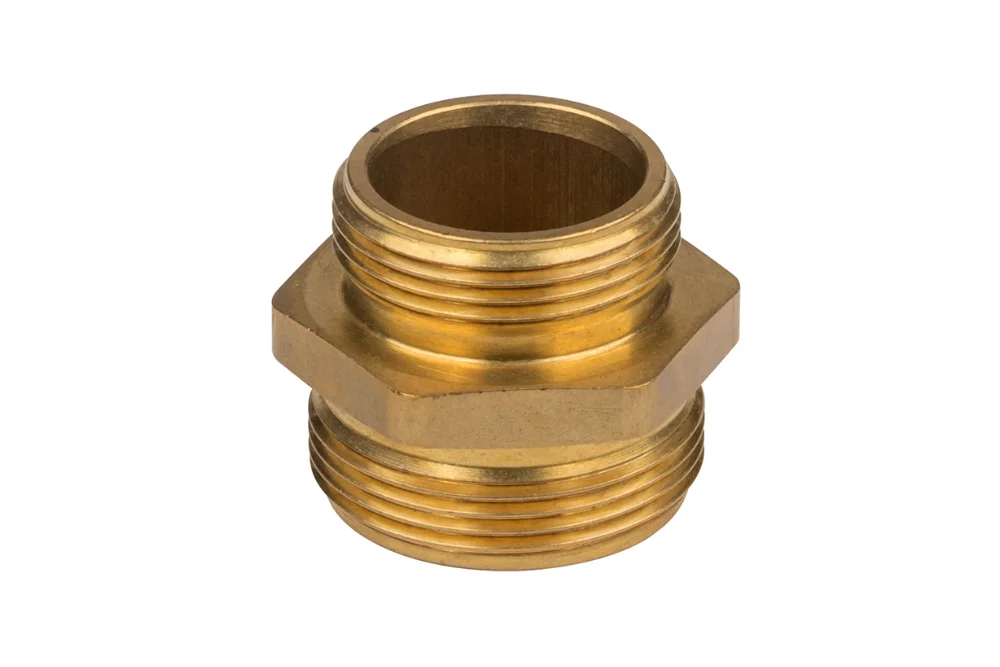

RN reducing adapter with external BSP, NPT, and metric threads is designed for connecting pipes (hoses with fittings) and components of industrial installations with working pressures up to several dozen bar. Used for all types of media: water, air, chemical substances, petrochemical products. Depending on the size and manufacturer, the fittings have various shapes of the flange for a wrench. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RS-440050075113	Reducing adapter RN GZ 1/2" x GZ 3/4", brass	-	-	In stock	Enquiry
RS-440050075333	Reducing adapter RN GZ 1/2" NPT x GZ 3/4" NPT, brass	-	-	In stock	Enquiry
RS-440075100113	Reducing adapter RN GZ 3/4" x GZ 1", brass	-	-	In stock	Enquiry
RS-440075100133	Reducing adapter RN GZ 3/4" x GZ 1" NPT, brass	-	-	In stock	Enquiry
RS-440100100133	Reducer adapter RN GZ 1" x GZ 1" NPT, brass	-	-	In stock	Enquiry
RS-440100125113	Reduction adapter RN GZ 1" x GZ 1.1/4", brass	-	-	In stock	Enquiry
RS-440100150113	Reducing adapter RN GZ 1" x GZ 1.1/2", brass	-	-	In stock	Enquiry
RS-440100200113	Reducer adapter RN GZ 1" x GZ 2", brass	-	-	In stock	Enquiry
RS-440125150113	Reduction adapter RN GZ 1.1/4" x GZ 1.1/2", brass	-	-	In stock	Enquiry
RS-440125200113	Reduction adapter RN GZ 1.1/4" x GZ 2", brass	-	-	In stock	Enquiry
RS-440125200133	Reduction adapter RN GZ 1.1/4" x GZ 2" NPT, brass	-	-	In stock	Enquiry
RS-440150200113	Reduction adapter RN GZ 1.1/2" x GZ 2", brass	-	-	In stock	Enquiry
RS-440150200133	Reducing adapter RN GZ 1.1/2" x GZ 2" NPT, brass	-	-	In stock	Enquiry
RS-440150200313	Reduction adapter RN GZ 2" x GZ 1.1/2" NPT, brass	-	-	In stock	Enquiry
RS-440150250113	Reduction adapter RN GZ 1.1/2" x GZ 2.1/2", brass	-	-	In stock	Enquiry
RS-440200200133	Reducer adapter RN GZ 2" x GZ 2" NPT, brass	-	-	In stock	Enquiry
RS-440200250113	Reducer adapter RN GZ 2" x GZ 2.1/2", brass	-	-	In stock	Enquiry
RS-440200300113	Reducer adapter RN GZ 2" x GZ 3", brass	-	-	In stock	Enquiry
RS-440250300113	Reduction adapter RN GZ 2.1/2" x GZ 3", brass	-	-	In stock	Enquiry
RS-441150521143	Reduction adapter RN GZ 1.1/2" x GZ M52x1.5, brass	-	-	In stock	Enquiry
RS-441200652143	Reduction adapter RN GZ 2" x GZ M65x2, brass	-	-	In stock	Enquiry
RS-441250782143	Reduction adapter RN GZ 2.1/2" x GZ M78x2, brass	-	-	In stock	Enquiry
RS-441300902143	Reduction adapter RN GZ 3" x GZ M90x2, brass	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

RN reducing adapter with external BSP, NPT, and metric threads is designed for connecting pipes (hoses with fittings) and components of industrial installations with working pressures up to several dozen bar. Used for all types of media: water, air, chemical substances, petrochemical products. Depending on the size and manufacturer, the fittings have various shapes of the flange for a wrench. Material: brass.
