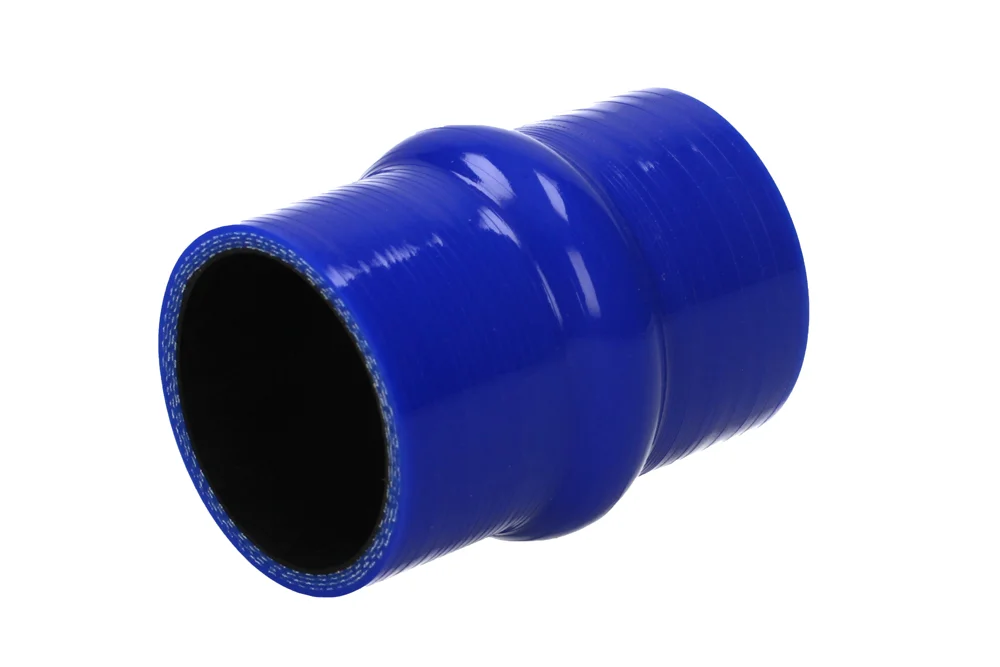

Polyester-reinforced silicone anti-vibration connector, HH, blue
Silicone anti-vibration connector with one notch reinforced with polyester is intended for cooling systems and heating systems in vehicles (water, coolant fluids, clean air or air with a small amount of oil mist). For oils, fuels, and oil mist, the version with fluorocarbon rubber is recommended. Pressure safety factor: 3:1. Complies with SAE J2006 R3 standard. Hardness (standard version) approx. 65° Shore (A), density approx. 1.26 g/cm³. Color of the outer layer: blue. Material: silicone rubber. Reinforcement: polyester spacers. Operating temperature: from -50°C to +180°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Silicone anti-vibration connector with one notch reinforced with polyester is intended for cooling systems and heating systems in vehicles (water, coolant fluids, clean air or air with a small amount of oil mist). For oils, fuels, and oil mist, the version with fluorocarbon rubber is recommended. Pressure safety factor: 3:1. Complies with SAE J2006 R3 standard. Hardness (standard version) approx. 65° Shore (A), density approx. 1.26 g/cm³. Color of the outer layer: blue. Material: silicone rubber. Reinforcement: polyester spacers. Operating temperature: from -50°C to +180°C.
Additional information
| Material | VMQ – silicone |
|---|---|
| Maximum operating temperature [°C] | 180 |
| Minimum operating temperature [°C] | -50 |
| Vacuum resistance | no |
| Standard length [m] | 0.1, 0.152, 0.203, 0.306 |
