Is SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel suitable for crimping with standard hydraulic hose crimping sleeves?

Yes. The SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel is suitable for crimping with standard hydraulic hose crimping sleeves provided the sleeve chosen is compatible with the hose construction and size. The product description explicitly states it is âdesigned for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type,â and construction from AISI 316L offers corrosion resistance and mechanical strength appropriate for heavy-series crimped assemblies. Ensure the sleeve profile, length, and material match the hose specifications (reinforcement type, number of wire layers, and inner/outer diameters) and that the crimping machine is rated for the heavy-series fitting. Follow manufacturer crimp specifications and test assemblies to verify correct crimp dimensions, seal integrity, and rated working pressure.

Can SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel be used with specialized crimping sleeves for corrosive-service hoses?

Yes. SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel is designed for crimping with a crimping sleeve appropriate to the hose type and can be used with specialized crimping sleeves for corrosive-service hoses. The AISI 316L construction offers enhanced corrosion resistance for aggressive environments, and the heavy series plus 90Â° SFL geometry provide robust mechanical strength. Ensure the sleeve material and plating are compatible with corrosive media, verify hose-to-fitting compatibility (inner diameter, reinforcement, and pressure rating), and follow the hose and sleeve manufacturerâs crimp specifications and inspection criteria to maintain seal integrity and service life.

Can SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel be used for high-pressure hydraulic applications?

Possibly, but with important limitations and verification steps. Explanation: - SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel is described as a crimp-style flange for hydraulic and industrial hoses, made from corrosion-resistant AISI 316L stainless steel. That material offers good corrosion resistance and reasonable mechanical properties, but material alone does not guarantee suitability for high-pressure hydraulic service. - Key factors to confirm before use in high-pressure hydraulic applications: 1. Pressure rating: Obtain the manufacturerâs maximum working pressure (MWP) and burst pressure specifically for the SAE 6000 ZSK212 heavy series when crimped onto the intended hose with the specified crimp sleeve. High-pressure systems require explicit, tested pressure ratings. 2. Hose compatibility: Ensure the flange and crimp sleeve are qualified for the exact hose type, size, reinforcement (steel braid/spiral), and application. Mismatch can cause failure under pressure. 3. Crimping procedure and tooling: Use the correct crimping sleeve, tooling, and process parameters provided by the manufacturer. Proper crimping is critical to achieve rated strength and leak-free joints. 4. Temperature and fluid compatibility: Verify the operating temperature range and hydraulic fluid compatibility for AISI 316L and any seals used; elevated temperatures reduce allowable pressures. 5. Standards and testing: Prefer components that meet applicable standards (e.g., SAE J516/J517 or equivalent) and that have documented test results (burst, cyclic fatigue). For critical high-pressure systems, require traceable test certificates. 6. Safety factors and system design: Confirm the flangeâs rated pressure includes appropriate safety margins for shock loads, pulsation, and cyclic fatigue typical of hydraulic systems. - If manufacturer documentation shows the SAE 6000 90Â° flange end, type ZSK212, heavy series, AISI 316L steel, when crimped per their instructions, is rated for the required operating pressures and conditions, it can be used. If such ratings or test data are absent, do not use it for high-pressure hydraulic service. Recommendation: Request the manufacturerâs technical datasheet, pressure ratings, crimp specifications, and test certificates for the exact hose/flange/sleeve combination and validate them against your systemâs maximum working pressure, temperature, and fluid conditions.

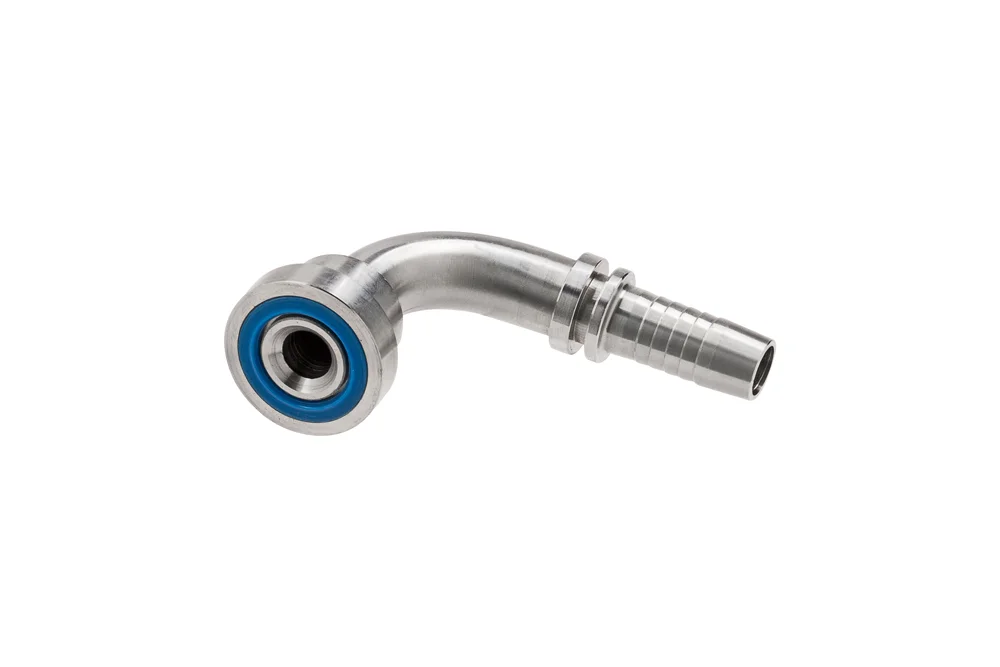

Fitting flange SAE 6000 90°, type ZSK212, series heavy, AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10

Fitting flange SAE 6000 (SFL), angled 90°, series heavy. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK212-08-08-SS	Flange fitting 90° SAE 1/2", hose 1/2", heavy, AISI 316L	12	-	In stock	Enquiry
TI-ZSK212-12-08-SS	Flange fitting 90° SAE 3/4", hose 1/2", heavy, AISI 316L	12	-	In stock	Enquiry
TI-ZSK212-12-10-SS	Flange fitting 90° SAE 3/4", hose 5/8", heavy, AISI 316L	16	-	In stock	Enquiry
TI-ZSK212-12-12-SS	Flange fitting 90° SAE 3/4", hose 3/4", heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZSK212-16-12-SS	Flange fitting 90° SAE 1", hose 3/4", heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZSK212-16-16-SS	Flange fitting 90° SAE 1", hose 1", heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZSK212-20-16-SS	Flange fitting 90° SAE 1.1/4", hose 1", heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZSK212-20-20-SS	Flange fitting 90° SAE 1.1/4", hose 1.1/4", heavy, AISI 316L	32	-	In stock	Enquiry
TI-ZSK212-24-20-SS	Flange fitting 90° SAE 1.1/2", hose 1.1/4", heavy, AISI 316L	32	-	In stock	Enquiry
TI-ZSK212-24-24-SS	Flange fitting 90° SAE 1.1/2", hose 1.1/2", heavy, AISI 316L	38	-	In stock	Enquiry
TI-ZSK212-32-24-SS	Flange fitting 90° SAE 2", hose 1.1/2", heavy, AISI 316L	38	-	In stock	Enquiry
TI-ZSK212-32-32-SS	Flange fitting 90° SAE 2", hose 2", heavy, AISI 316L	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange SAE 6000 (SFL), angled 90°, series heavy. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.
