Is the SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel compatible with standard crimping sleeves for hydraulic and industrial hoses?

Yes. The SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel is intended for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. Being made of carbon steel (galvanized) and designed specifically for crimping applications, it is compatible with standard crimping sleeves provided the sleeve matches the hose type, hose diameter, and crimping specifications (layering, material, and crimp dimensions). Ensure you use a sleeve rated for the hose construction (e.g., single-wire, multi-wire, textile), correct internal/external diameters, and follow the manufacturerâs recommended crimping force/profile and inspection criteria to achieve a secure, leak-free assembly.

Can SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel be used with crimping sleeves specified for non-reinforced industrial hoses?

No. SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel is designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. If the hose is reinforced, a crimping sleeve specified for non-reinforced industrial hoses is not appropriate. Use a sleeve matched to the hose construction (reinforced vs nonâreinforced) to ensure proper crimp, seal and safety.

Does SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel require specific crimping sleeve dimensions for secure attachment?

Yes. SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel requires a crimping sleeve sized specifically for the hose type and the flange end to ensure a secure, leakâfree attachment. The product description states it is "designed for clamping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose," which implies these requirements: - Sleeve inner diameter and length must match the hose outer diameter and the flange tail dimensions so the hose fits fully onto the flange tail and the sleeve covers the hose and ferrule area adequately. - Sleeve profile (straight, stepped, or custom) must be appropriate for the hose construction and for the ZSK113 flange tail geometry to prevent material extrusion or uneven compression. - Material and thickness of the sleeve should be compatible with carbon steel, galvanized flange end to provide sufficient strength and avoid galvanic issues where relevant. - Crimping force and crimping pattern must follow hose and sleeve manufacturer specifications to achieve the required crimp height and mechanical retention without damaging the hose. In practice, use the hose manufacturerâs crimping sleeve dimensions and specifications for the exact hose part number together with the SAE 6000 SUPERCAT flange end, type ZSK113, carbon steel. If no combined data exist, consult the flange/end and hose vendors or the crimping equipment supplier to obtain the correct sleeve dimensions and crimping settings before assembly.

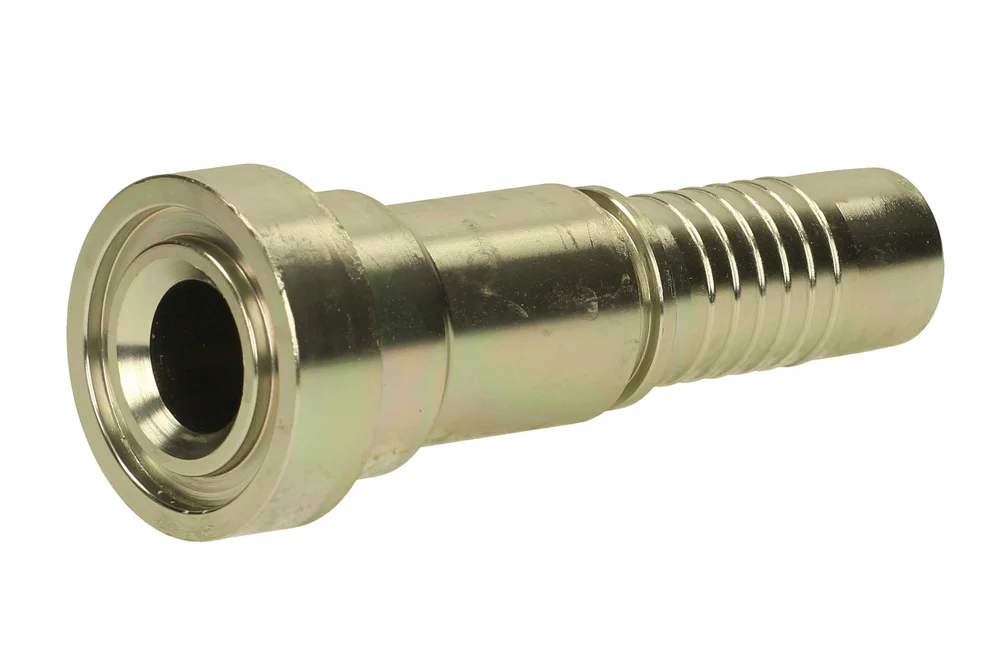

Fitting flange SAE 6000 SUPERCAT, type ZSK113, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Fitting flange SAE 6000 SUPERCAT (SFS). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZSK113-12-12	Flange fitting SAE 3/4", hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK113-16-12	Flange fitting SAE 1", hose 3/4" SUPERCAT	20	-	In stock	Enquiry
TI-ZSK113-16-16	Flange fitting SAE 1", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK113-20-16	Flange fitting SAE 1.1/4", hose 1" SUPERCAT	25	-	In stock	Enquiry
TI-ZSK113-20-20	Flange fitting SAE 1.1/4", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK113-24-20	Flange fitting SAE 1.1/2", hose 1.1/4" SUPERCAT	32	-	In stock	Enquiry
TI-ZSK113-24-24	Flange fitting SAE 1.1/2", hose 1.1/2" SUPERCAT	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting flange SAE 6000 SUPERCAT (SFS). Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
