Can GE-NT screw connection, stainless steel (AISI 316) with 24Â° DIN 2353 socket and external NPT thread use Teflon tape or anaerobic sealant for thread sealing while maintaining the 2.5:1 safety factor?

Yes. The GE-NT screw connection, stainless steel (AISI 316) Format with 24Â° DIN 2353 socket and external NPT thread is specified to allow sealing on the thread using Teflon tape or an anaerobic sealant. When installed per manufacturer/DIN 2353 guidance (correct series L or S, proper torque, clean threads, and correct tape/sealant technique), these thread sealing methods are compatible with maintaining the specified 2.5:1 safety factor. Key conditions to ensure the safety factor is preserved: - Use the appropriate series (L for light, S for heavy) and component materials as specified (AISI 316). - Apply Teflon tape correctly (wrap in the direction of thread engagement, avoid over-wrapping that prevents full metal-to-metal engagement) or use an anaerobic sealant recommended for stainless steel/NPT threads. - Tighten to the recommended torque values and assembly procedure per DIN 2353 and manufacturer instructions to achieve the intended mechanical engagement and sealing. - Ensure cleanliness and absence of damage on sealing surfaces; do not rely solely on sealant to make up for improper assembly or damaged threads. If any deviation from specified assembly practice occurs, the safety factor may be compromised; when in doubt, consult the component supplier or technical datasheet for torque and assembly specifics.

Is GE-NT screw connection, stainless steel (AISI 316) compatible with both metric and NPT threads on a 24Â° DIN 2353 socket?

Yes. The GE-NT screw connection, stainless steel is designed as a 24Â° DIN 2353 socket with both external metric thread and external NPT thread (seal on the thread using Teflon tape or anaerobic sealant). Therefore it is compatible with both metric and NPT threaded counterparts when properly sealed. It is offered in L (light) and S (heavy) series, made of AISI 316 stainless steel, and rated with a safety factor of 2.5:1.

Does GE-NT screw connection, stainless steel, maintain sealing reliability under cyclic pressure with NPT threads?

Yes. the GE-NT screw connection, stainless steel can maintain sealing reliability under cyclic pressure with NPT threads, but with conditions and limitations. Key points: - Design: GE-NT is a 24Â° DIN 2353 socket with external metric thread and external NPT thread. The NPT seal is achieved on the thread (tapered) using PTFE (Teflon) tape or an anaerobic sealant. - Material and strength: Made of AISI 316 stainless steel and rated with a safety factor of 2.5:1; available in light (L) and heavy (S) series. The metallic strength and corrosion resistance are suitable for many cyclic-pressure applications. - Sealing under cyclic pressure: Threaded NPT seals rely on thread interference plus the chosen sealant. PTFE tape or anaerobic sealant can provide good initial sealing and vibration resistance. However, repeated pressure cycles can cause micro-movement, relaxation, or creep of sealing material and thread joints, potentially degrading the seal over time. - Factors affecting reliability: - Quality/application of sealant: Proper application (correct tape wraps, appropriate anaerobic product, cure time) is critical. - Torque and assembly: Correct torque to achieve thread engagement without overâstress; use of proper installation practice reduces loosening under cycles. - Pressure range and cycling frequency/amplitude: High magnitude or rapid cycling increases risk of loosening or sealant fatigue. - Mechanical loading and vibration: Lateral loads or vibration accelerate leakage risk. - Series selection: Heavy series (S) offers greater robustness under cyclic loads than light (L). - Recommendations to maximize reliability: - Use highâquality anaerobic thread sealant rated for dynamic/cyclic service when possible (better resistance to creep than PTFE tape). - Follow manufacturer torque/specs and use the heavy (S) series for demanding cyclic conditions. - Consider secondary locking (e.g., thread lockers designed for pressure service) or mechanical retention if applicable. - Inspect and re-torque/replace fittings at maintenance intervals proportional to cycle severity. - For critical systems with frequent/high-amplitude cycles, consider a sealing method not reliant solely on NPT thread seal (e.g., DIN 2353 compression/flare fittings, welded connections, or metal-to-metal seals) for higher long-term reliability. Conclusion: GE-NT screw connection, stainless steel can maintain sealing under cyclic pressure with NPT threads if correctly assembled, sealed, and sized (preferably S series) and if operating conditions are moderate. For high-frequency/high-stress cyclic applications, use more robust sealing methods or additional precautions.

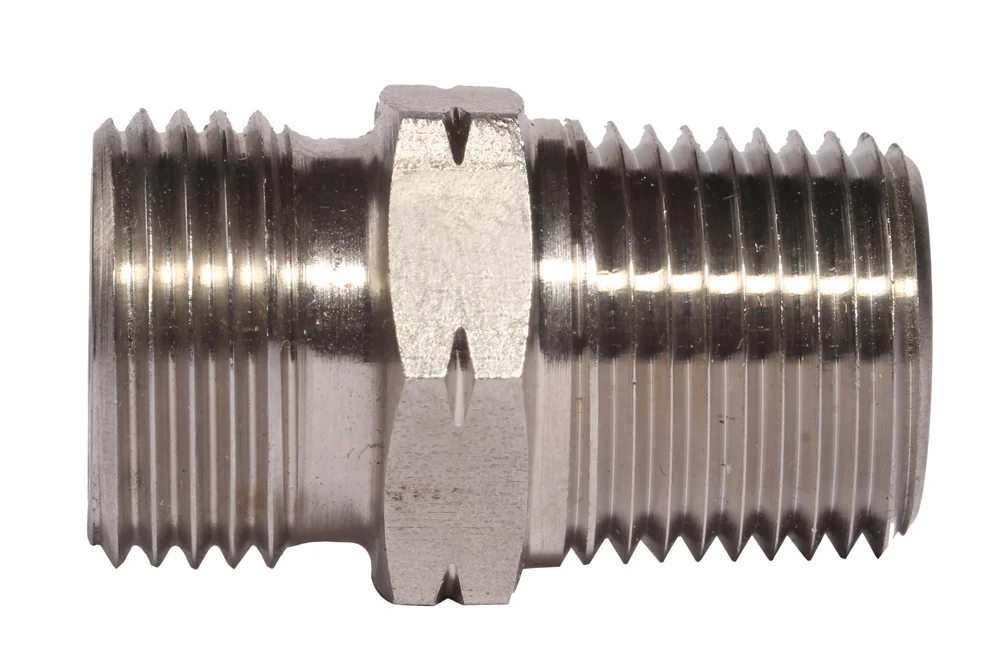

GE-NT screw connection, stainless steel

Additional information

Material	SS – stainless steel

DIN 2353 screw fitting, type GE-NT: 24° DIN 2353 socket with external metric thread and external NPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Safety factor 2.5:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-GE-06L-NT-02-SS	DIN 2353 fitting GE 6L 1/8" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-06L-NT-04-SS	DIN 2353 connector GE 6L 1/4" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-06S-NT-04-SS	DIN 2353 fitting GE 6S 1/4" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-08L-NT-04-SS	DIN 2353 fitting GE 8L 1/4" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-08L-NT-08-SS	DIN 2353 fitting GE 8L 1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-08S-NT-04-SS	DIN 2353 fitting GE 8S 1/4" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-08S-NT-06-SS	DIN 2353 fitting GE 8S 3/8" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-10L-NT-04-SS	DIN 2353 fitting GE 10L 1/4" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-10L-NT-06-SS	DIN 2353 fitting GE 10L 3/8" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-10L-NT-08-SS	DIN 2353 fitting GE 10L 1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-10S-NT-06-SS	DIN 2353 fitting GE 10S 3/8" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-12L-NT-04-SS	DIN 2353 fitting GE 12L 1/4" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-12L-NT-06-SS	DIN 2353 fitting GE 12L 3/8" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-12L-NT-08-SS	DIN 2353 fitting GE 12L 1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-12S-NT-04-SS	DIN 2353 fitting GE 12S 1/4" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-12S-NT-06-SS	DIN 2353 fitting GE 12S 3/8" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-14S-NT-08-SS	DIN 2353 fitting GE 14S 1/2" NPT, AISI 316	-	630	In stock	Enquiry
HD-GE-15L-NT-08-SS	DIN 2353 fitting GE 15L 1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-16S-NT-06-SS	DIN 2353 fitting GE 16S 3/8" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-16S-NT-08-SS	DIN 2353 fitting GE 16S 1/2" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-18L-NT-06-SS	DIN 2353 fitting GE 18L 3/8" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-18L-NT-08-SS	DIN 2353 fitting GE 18L 1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-18L-NT-12-SS	DIN 2353 fitting GE 18L 3/4" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-20S-NT-06-SS	DIN 2353 fitting GE 20S 3/8" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-20S-NT-12-SS	DIN 2353 fitting GE 20S 3/4" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-22L-NT-12-SS	DIN 2353 fitting GE 22L 3/4" NPT, AISI 316	-	160	In stock	Enquiry
HD-GE-25S-NT-12-SS	DIN 2353 fitting GE 25S 3/4" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-25S-NT-16-SS	DIN 2353 fitting GE 25S 1" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-28L-NT-12-SS	DIN 2353 fitting GE 28L 3/4" NPT, AISI 316	-	160	In stock	Enquiry
HD-GE-28L-NT-16-SS	DIN 2353 fitting GE 28L 1" NPT, AISI 316	-	160	In stock	Enquiry
HD-GE-30S-NT-20-SS	DIN 2353 fitting GE 30S 1.1/4" NPT, AISI 316	-	400	In stock	Enquiry
HD-GE-35L-NT-20-SS	DIN 2353 fitting GE 35L 1.1/4" NPT, AISI 316	-	160	In stock	Enquiry
HD-GE-38S-NT-24-SS	DIN 2353 fitting GE 38S 1.1/2" NPT, AISI 316	-	315	In stock	Enquiry
HD-GE-42L-NT-20-SS	DIN 2353 fitting GE 42L 1.1/4" NPT, AISI 316	-	160	In stock	Enquiry
HD-GE-42L-NT-24-SS	DIN 2353 fitting GE 42L 1.1/2" NPT, AISI 316	-	160	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

DIN 2353 screw fitting, type GE-NT: 24° DIN 2353 socket with external metric thread and external NPT thread (seal on the thread – with Teflon tape or anaerobic sealant). Safety factor 2.5:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
