Can the NPT GZ quick-connection screw socket with valve, carbon steel, PVS type be connected or disconnected under residual system pressure up to 700 bar?

Yes. The NPT GZ quick-connection screw socket with valve, carbon steel, PVS type can be connected and disconnected when there is residual system pressure present, up to its specified working pressure of 700 bar. The product description explicitly states it "can be connected/disconnected when there is residual pressure in the system." Ensure end caps are used (ordered separately) and observe all operating limits (sealing material NBR, temperature â25Â°C to +100Â°C) and safety margins relative to burst pressures.

Is the NPT GZ quick-connection screw socket with valve, carbon steel, PVS type suitable for rescue equipment at 700 bar?

Yes. The NPT GZ quick-connection screw socket with valve, carbon steel, PVS type is suitable for rescue equipment at 700 bar. It is designed for very high-pressure installations and mechanically demanding applications (including rescue equipment), allows connection/disconnection under residual pressure, has a working pressure of 700 bar, appropriate burst pressures when connected, and an operating temperature range of -25Â°C to +100Â°C. Ensure correct size (1/4" or 3/8"), use specified NBR sealing, and order end caps separately.

Does the NPT GZ quick-connection screw socket with valve, carbon steel, PVS type require end caps sold separately?

Yes. The NPT GZ quick-connection screw socket with valve, carbon steel, PVS type requires end caps to be ordered separately (end caps must be ordered separately).

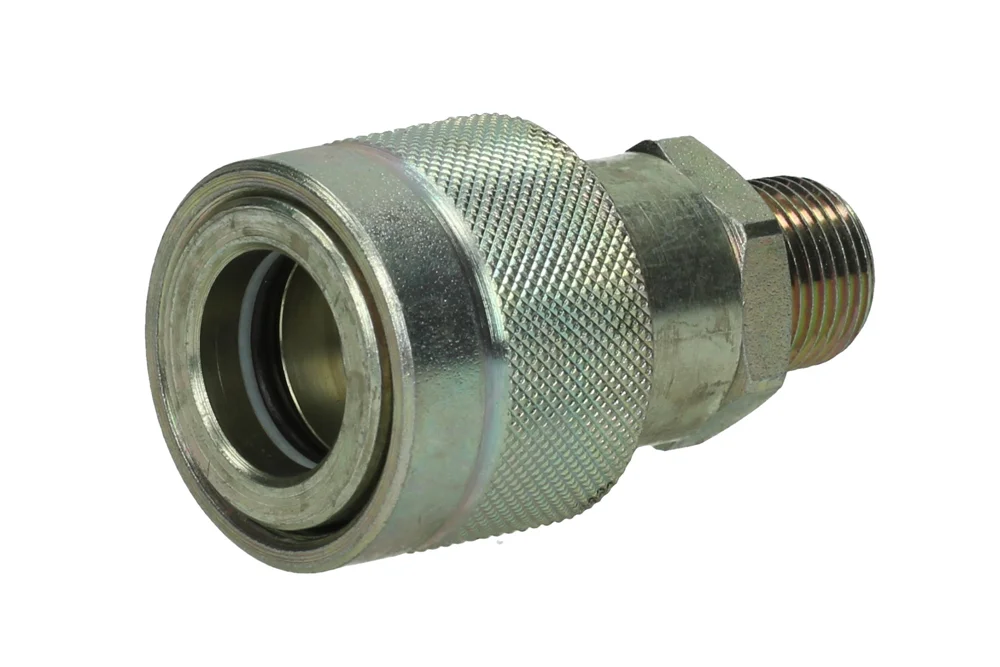

NPT GZ quick-connection screw socket with valve, carbon steel, PVS type

All products, UHP quick couplings/

Additional information

Material	CS – steel (cast iron)

Screw socket PVS of hydraulic quick couplings designed for installations with very high pressures, where there are significant mechanical loads. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Can be connected/disconnected when there is residual pressure in the system. End caps must be ordered separately. Material: carbon steel. Sealing: NBR. Flow: 1/4″ – 16.4 l/min; (Δp = 4 bar), 3/8″ – 21.3 l/min; (Δp=4 bar). Working pressure: 700 bar. Burst pressure: 1/4″ – 2100 bar (connected coupling), 3/8″ – 1850 bar (connected coupling), 1/4″ – 1800 bar (disconnected socket), 3/8″ – 1850 bar (disconnected socket). Operating temperature: from -25°C to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DP-PVS3-0606022	1/4" screw socket with 1/4" NPT female thread, NBR seal, with valve	-	700	In stock	0 zł		Enquiry
DP-PVS3-1010022	3/8" threaded socket with 3/8" NPT female, NBR seal, with valve	-	700	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Screw socket PVS of hydraulic quick couplings designed for installations with very high pressures, where there are significant mechanical loads. Used in hydraulic presses, rescue equipment, hydraulic lifts, cutters, etc. Can be connected/disconnected when there is residual pressure in the system. End caps must be ordered separately. Material: carbon steel. Sealing: NBR. Flow: 1/4″ – 16.4 l/min; (Δp = 4 bar), 3/8″ – 21.3 l/min; (Δp=4 bar). Working pressure: 700 bar. Burst pressure: 1/4″ – 2100 bar (connected coupling), 3/8″ – 1850 bar (connected coupling), 1/4″ – 1800 bar (disconnected socket), 3/8″ – 1850 bar (disconnected socket). Operating temperature: from -25°C to +100°C.
