Can the Screwed quick-connector, socket with GW BSP in galvanized steel, W-6000 be connected or disconnected under residual pressure up to 30 bar?

Yes. The Screwed quick-connector, socket with GW BSP in galvanized steel, W-6000 may be connected (screwed) or disconnected under residual pressure up to 30 bar. Note: if the joint experiences pulsating pressure while disconnected, the maximum allowable working pressure must be reduced by 50%. The product is manufactured to PED 2014/68/EU, materials: galvanized steel, seals NBR (â20Â°C to +100Â°C) or Viton (â20Â°C to +200Â°C), and rated for working pressures up to 1100 bar depending on size.

Can the Screwed quick-connector, socket with GW BSP in galvanized steel, W-6000 be used with pulsating pressure at the disconnected joint?

Yes - the Screwed quick-connector, socket with GW BSP in galvanized steel, W-6000 can be used with pulsating pressure at the disconnected joint, but the maximum working pressure must be reduced by 50% in that condition. Screwing under residual pressure up to 30 bar is permitted. Ensure seals (NBR or Viton) and specified working pressures for the chosen size are respected and that use complies with PED 2014/68/EU.

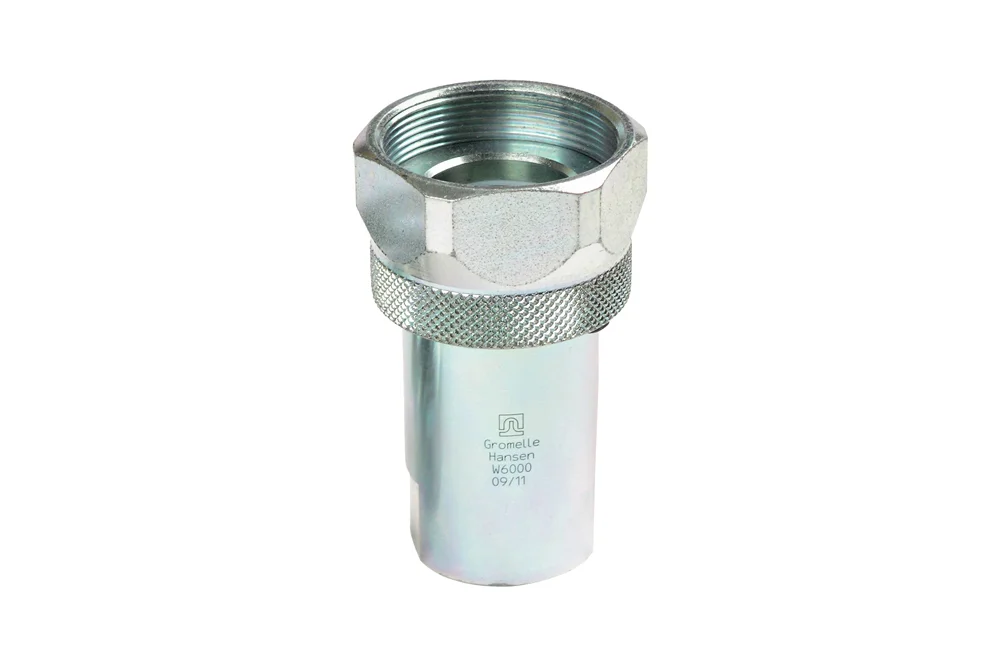

Screwed quick-connector, socket with GW BSP in galvanized steel, W-6000

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	50

GROMELLE quick coupling socket with BSP, NPT, and shut-off valve, series W-6000. The screw quick coupling is designed for applications with high mechanical loads. Screwing the quick coupling under residual pressure up to 30 bar is permitted. In the case of pulsating pressure at the disconnected joint, the maximum working pressure should be reduced by 50%. Manufactured in accordance with the PED directive 2014/68/EU. Material: galvanized steel. Sealing: NBR (operating temperature: from -20°C to +100°C), viton (operating temperature: from -20°C to +200°C). Working pressure: up to 1100 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GR-WA-0601700	W-6000 socket with 1/4" BSP thread	-	1100	In stock	Enquiry
GR-WA-0602700	W-6000 socket with 3/8" BSP GW	-	750	In stock	Enquiry
GR-WA-0603700	W-6000 socket with 1/2" BSP thread	-	750	In stock	Enquiry
GR-WA-0604700	W-6000 socket with 3/4" BSP thread	-	650	In stock	Enquiry
GR-WA-0605700	W-6000 socket with 1" BSP thread	-	450	In stock	Enquiry
GR-WA-0606700	W-6000 socket with GW 1.1/4" BSP	-	450	In stock	Enquiry
GR-WA-0607700	W-6000 socket with GW 1.1/2" BSP	-	300	In stock	Enquiry
GR-WA-0609700	W-6000 socket with 2" BSP thread	-	300	In stock	Enquiry
GR-WA-0621700	W-6000 socket with 1/4" NPT thread	-	1100	In stock	Enquiry
GR-WA-06217V0	W-6000 socket with 1/4" NPT thread, Viton seal	-	1100	In stock	Enquiry
GR-WA-0625700	W-6000 socket with 1" NPT GW	-	450	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

GROMELLE quick coupling socket with BSP, NPT, and shut-off valve, series W-6000. The screw quick coupling is designed for applications with high mechanical loads. Screwing the quick coupling under residual pressure up to 30 bar is permitted. In the case of pulsating pressure at the disconnected joint, the maximum working pressure should be reduced by 50%. Manufactured in accordance with the PED directive 2014/68/EU. Material: galvanized steel. Sealing: NBR (operating temperature: from -20°C to +100°C), viton (operating temperature: from -20°C to +200°C). Working pressure: up to 1100 bar (depending on the size of the quick coupling). Flow has been provided for a pressure drop of 3 bar.
