Is the GW BSP twisted hydraulic end, carbon steel, DKR type S compatible with standard BSP-threaded hose assemblies and screwed sleeves?

Yes. The GW BSP twisted hydraulic end, carbon steel, DKR type S is compatible with standard BSP-threaded hose assemblies and screwed sleeves. It has an internal BSP thread and nut with a 60Â° sealing cone (DKR) specifically designed to be screwed into rubber and thermoplastic hoses using a screwed sleeve. Material and finish (carbon steel, galvanized) are typical for such connections, so it will mate with conventional BSP-threaded hose fittings and standard screwed sleeves intended for DKR-type 60Â° cone sealing.

Does the GW BSP twisted hydraulic end, carbon steel, DKR type S support use with metric-threaded hoses or adapters?

No - the GW BSP twisted hydraulic end, carbon steel, DKR type S Format is designed for internal BSP threads and a 60Â° sealing cone (DKR) to be used with screwed sleeves into rubber and thermoplastic hoses. It is intended for BSP-threaded connections and compatible screwed sleeves, not for metric-threaded hoses or adapters unless an appropriate BSP-to-metric adapter is fitted. Without such an adapter, metric-threaded components are not directly compatible.

Can the GW BSP twisted hydraulic end, carbon steel, DKR type S withstand typical hydraulic system pressures and temperatures?

Yes. in most typical hydraulic systems the GW BSP twisted hydraulic end, carbon steel, DKR type S can withstand standard operating pressures and temperatures, with some important caveats. Why itâs suitable - Design: The DKR type S screwed hydraulic end with a 60Â° sealing cone and internal BSP thread is a standard geometry for reliable metal-to-metal sealing when mated and torqued correctly. - Material: Carbon steel (galvanized) provides good strength and fatigue resistance for common hydraulic pressures and mechanical loads. - Use case: It is intended for installation into rubber and thermoplastic hoses using a screwed sleeve, a conventional assembly for medium- and high-pressure hose assemblies. Limitations and considerations - Pressure rating: The actual allowable working pressure depends on the hose, sleeve, and assembly method as well as thread engagement and torque. The fitting alone is typically capable of typical hose assembly pressures, but you must verify the system pressure against the assembled hose/fitting rated pressure provided by the hose manufacturer or product datasheet. - Temperature range: Carbon steel fittings perform well across common hydraulic fluid temperature ranges, but extreme low or high temperatures (below â40 Â°C or above ~120â150 Â°C depending on coating, seal materials and hose type) may require special materials or seals. Galvanization protects against corrosion but may degrade at elevated temperatures. - Sealing: The 60Â° cone requires proper mating surfaces and correct assembly torque to ensure leak-free operation; improper assembly can reduce pressure capability. - Compatibility: Ensure hydraulic fluid compatibility with galvanization and hose inner lining; aggressive fluids may need different materials. - Safety margin and standards: Use the manufacturerâs approved assembly procedure and ratings, and follow applicable hydraulic standards (e.g., ISO, SAE). For critical or extreme applications, choose fittings explicitly rated for the required pressure/temperature or consult the supplier. Conclusion The GW BSP twisted hydraulic end, carbon steel, DKR type S is appropriate for typical hydraulic system pressures and temperatures when used in a correctly matched, assembled, and rated hose assembly; confirm specific pressure and temperature limits from the hose/fitting datasheet and manufacturer guidance before use.

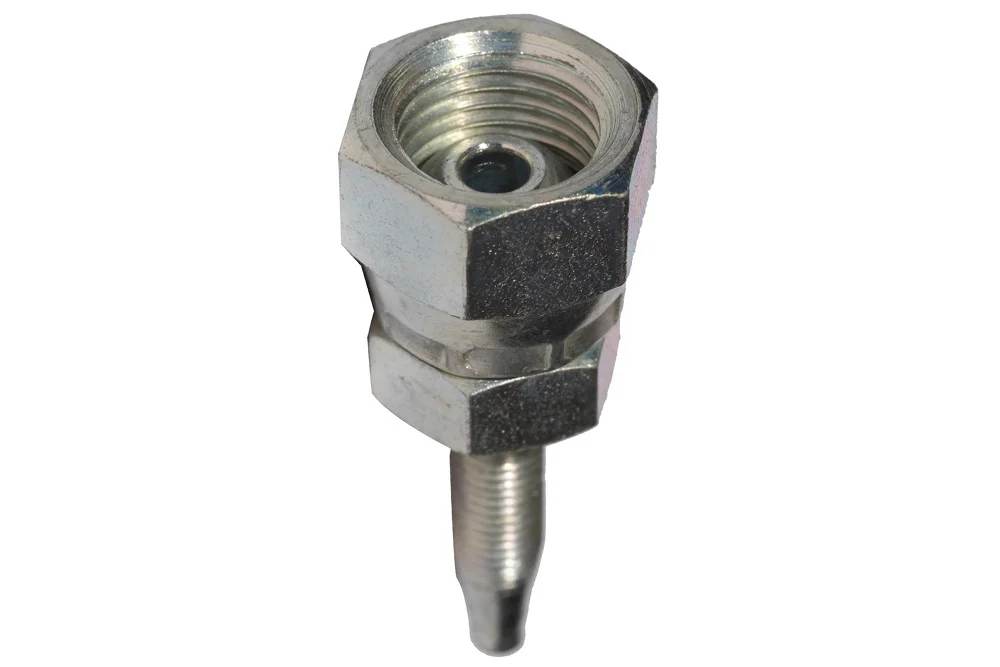

Fitting hydraulic screw-together BSP female, carbon steel, DKR type S

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	15

Fitting hydraulic screw-together, type S, with BSP female thread with a nut, 60° sealing cone (DKR). intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-SBW110-02-025	Fitting screw-together 1/8" BSP female for hose 5/32"	4	-	In stock	Enquiry
TI-SBW110-02-03	Fitting screw-together 1/8" BSP female for hose 3/16"	5	-	In stock	Enquiry
TI-SBW110-04-025	Fitting screw-together 1/4" BSP female for hose 5/32"	4	-	In stock	Enquiry
TI-SBW110-04-03	Fitting screw-together 1/4" BSP female for hose 3/16"	5	-	In stock	Enquiry
TI-SBW110-04-04	Fitting screw-together 1/4" BSP female for hose 1/4"	6	-	In stock	Enquiry
TI-SBW110-04-05	Fitting screw-together 1/4" BSP female for hose 5/16"	8	-	In stock	Enquiry
TI-SBW110-06-04	Fitting screw-together 3/8" BSP female for hose 1/4"	6	-	In stock	Enquiry
TI-SBW110-06-05	Fitting screw-together 3/8" BSP female for hose 5/16"	8	-	In stock	Enquiry
TI-SBW110-06-06	Fitting screw-together 3/8" BSP female for hose 3/8"	10	-	In stock	Enquiry
TI-SBW110-08-08	Fitting screw-together 1/2" BSP female for hose 1/2"	12	-	In stock	Enquiry
TI-SBW110-10-10	Fitting screw-together 5/8" BSP female for hose 5/8"	16	-	In stock	Enquiry
TI-SBW110-12-12	Fitting screw-together 3/4" BSP female for hose 3/4"	20	-	In stock	Enquiry
TI-SBW110-16-16	Fitting screw-together 1" BSP female for hose 1"	25	-	In stock	Enquiry
TI-SBW110-20-20	Fitting screw-together 1.1/4" BSP female for hose 1.1/4"	32	-	In stock	Enquiry
TI-SBW110-24-24	Fitting screw-together 1.1/2" BSP female for hose 1.1/2"	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting hydraulic screw-together, type S, with BSP female thread with a nut, 60° sealing cone (DKR). intended for screwing onto hoses rubber and termoplastycznych using a ferrule screw-together. Material: carbon steel, galvanized.
