Is the CEL hydraulic end, type ZMZ111 light series in AISI 316L steel compatible with standard crimping sleeves and crimping machines for hydraulic and industrial hoses?

Yes. The CEL hydraulic end, type ZMZ111, light series, AISI 316L steel is designed for crimping with standard crimping sleeves and crimping machines used for hydraulic and industrial hoses. It features a regular hydraulic âtailâ (type Z) and an external metric thread with 60Â° cone sealing, and the description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you match the sleeve profile and diameter to the specific hose construction and follow the crimper manufacturerâs specifications and crimping parameters (sleeve size, die set, and crimp dimensions) for a correct, leakâtight assembly.

Can CEL hydraulic end, type ZMZ111 light series in AISI 316L steel be used with hoses requiring a 60Â° cone (CEL) sealing and standard metric-thread fittings?

Yes. CEL hydraulic end, type ZMZ111, light series, AISI 316L steel can be used with hoses requiring a 60Â° cone (CEL) sealing and standard external metric-thread fittings. It is designed as a standard hydraulic end (type Z) with an external metric thread and 60Â° cone sealing, intended for crimping into hydraulic and industrial hoses using the appropriate crimping sleeve for the hose type. Ensure the crimp sleeve and hose dimensions match the ZMZ111 specifications and follow manufacturer crimping parameters for proper assembly and leak-free performance.

Can CEL hydraulic end, type ZMZ111, light series, AISI 316L steel withstand marine or corrosive environments?

Yes. the CEL hydraulic end, type ZMZ111, light series, made of AISI 316L stainless steel is suitable for marine and corrosive environments. AISI 316L is a lowâcarbon austenitic stainless steel with increased molybdenum content, which significantly improves resistance to pitting and crevice corrosion in chlorideârich atmospheres (typical of seawater and marine spray) compared with 304/1.4301 grades. Its low carbon content also reduces sensitization and intergranular corrosion after welding or fabrication. However, two practical points: - âLight seriesâ components can have thinner walls or reduced mass compared with heavyâduty versions, so mechanical durability under high abrasive wear, heavy embedment loads, or severe mechanical impact may be lower; ensure the partâs pressure and mechanical ratings match the intended marine application and hose assembly specification. - Corrosion resistance depends on proper assembly, surface finish, maintenance and avoiding galvanic couples with more noble metals. Use compatible fittings, proper sealing (CEL 60Â° cone), correct crimping sleeve for the hose type, and routine inspection in aggressive conditions. In summary: chemically and metallurgically AISI 316L gives good resistance to marine and corrosive environments, and the CEL hydraulic end, type ZMZ111, light series, AISI 316L steel is appropriate provided its mechanical ratings, assembly practices and galvanic considerations are respected.

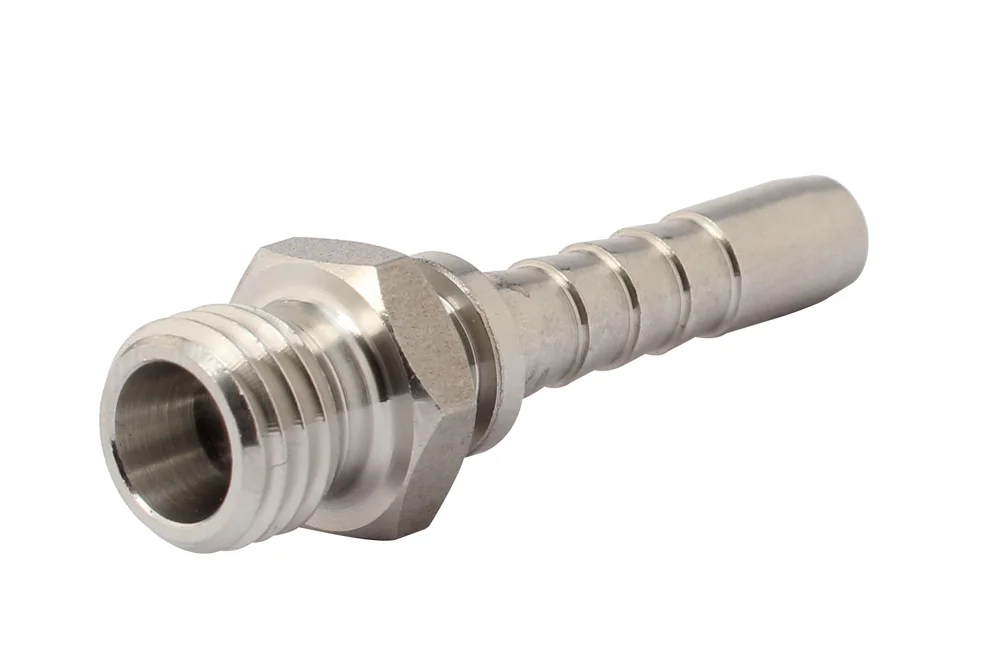

Fitting hydraulic CEL, type ZMZ111, series light, AISI 316L

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	10

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric male thread, 60° cone sealing (CEL), series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMZ111-10-04-SS	Fitting M10x1 male, hose 1/4", 24°, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMZ111-12-04-SS	Fitting M12x1.5 male, hose 1/4", 24°, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMZ111-14-04-SS	Fitting M14x1.5 male, hose 1/4", 24°, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMZ111-16-04-SS	Fitting M16x1.5 male, hose 1/4", 24°, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMZ111-16-05-SS	Fitting M16x1.5 male, hose 5/16", 24°, light, AISI 316L	8	-	In stock	Enquiry
TI-ZMZ111-16-06-SS	Fitting M16x1.5 male, hose 3/8", 24°, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMZ111-18-04-SS	Fitting M18x1.5 male, hose 1/4", 24°, light, AISI 316L	6	-	In stock	Enquiry
TI-ZMZ111-18-05-SS	Fitting M18x1.5 male, hose 5/16", 24°, light, AISI 316L	8	-	In stock	Enquiry
TI-ZMZ111-18-06-SS	Fitting M18x1.5 male, hose 3/8", 24°, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMZ111-22-06-SS	Fitting M22x1.5 male, hose 3/8", 24°, light, AISI 316L	10	-	In stock	Enquiry
TI-ZMZ111-22-08-SS	Fitting M22x1.5 male, hose 1/2", 24°, light, AISI 316L	12	-	In stock	Enquiry
TI-ZMZ111-22-10-SS	Fitting M22x1.5 male, hose 5/8", 24°, light, AISI 316L	16	-	In stock	Enquiry
TI-ZMZ111-26-08-SS	Fitting M26x1.5 male, hose 1/2", 24°, light, AISI 316L	12	-	In stock	Enquiry
TI-ZMZ111-26-10-SS	Fitting M26x1.5 male, hose 5/8", 24°, light, AISI 316L	16	-	In stock	Enquiry
TI-ZMZ111-30-12-SS	Fitting M30x2 male, hose 3/4", 24°, light, AISI 316L	20	-	In stock	Enquiry
TI-ZMZ111-36-16-SS	Fitting M36x2 male, hose 1", 24°, light, AISI 316L	25	-	In stock	Enquiry
TI-ZMZ111-45-20-SS	Fitting M45x2 male, hose 1.1/4", 24°, light, AISI 316L	32	-	In stock	Enquiry
TI-ZMZ111-52-24-SS	Fitting M52x2 male, hose 1.1/2", 24°, light, AISI 316L	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with metric male thread, 60° cone sealing (CEL), series light. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: AISI 316L.
