Can the Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 be used with plastic hoses without reinforcing sleeves (B12) at 60 bar?

Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 is designed for connecting copper pipes and plastic hoses and has a working pressure rated to 60 bar. However, the product description explicitly recommends using reinforcing sleeves (B12) when connecting to hoses. Therefore, while the fittingâs nominal working pressure is 60 bar, you should not use it with unreinforced plastic hoses without the reinforcing sleeves. Using unreinforced hoses risks improper sealing, hose extrusion into the fitting, leakage or sudden failure under pressure. To meet safe operation at 60 bar, use the specified reinforcing sleeves (B12) or choose hoses and fittings explicitly rated for 60 bar without reinforcement.

Is the Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 compatible with copper pipes and plastic hoses at 60 bar?

Yes. The Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 is designed for connecting copper pipes and plastic hoses and is rated to 60 bar. For plastic hoses, use recommended reinforcing sleeves (B12) to ensure proper reinforcement and sealing. Material (nickel-plated brass) and the locking ring further support compatibility at the specified working pressure.

Does the Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 include a locking ring for hose connections at 60 bar?

Yes. The Twisted tee for pneumatic pipes and hoses "T" with external thread BSPT, type B7 includes a locking ring for hose connections. The product description explicitly states it is a Tee fitting "T" with external BSPT thread type B7 with a locking ring designed for connecting copper pipes and plastic hoses. For hose connections, the use of reinforcing sleeves (B12) is recommended. Material: nickel-plated brass. Working pressure: 60 bar.

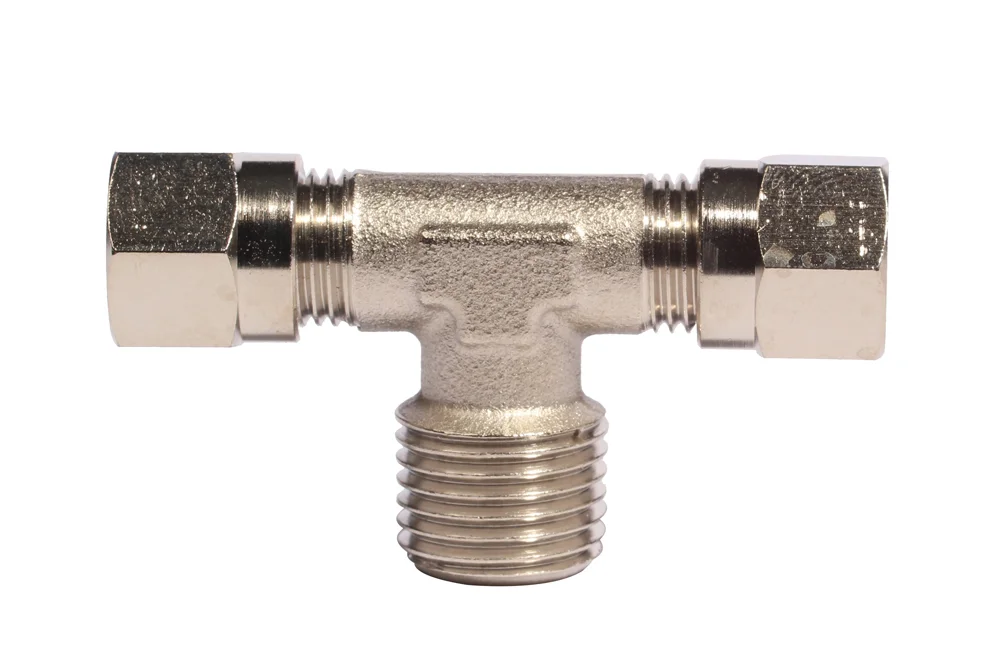

Screw-together tee for pneumatic pipes and hoses “T” with BSPT male thread, type B7

All products, Cutting ring fittings/

Additional information

Material	B – brass (bronze)

Tee fitting “T” with BSPT male thread, type B7, with a cutting ring, designed for connecting copper pipes and plastic hoses. When connecting to hoses, the use of reinforcing sleeves (B12) is recommended. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2207001	Tee fitting T B7, 2 x tube (hose) 4/2 / 1/8" BSPT male	-	60	In stock	Enquiry
MW-2207002	Tee fitting T B7, 2 x tube (hose) 6/4 / 1/8" BSPT male	-	60	In stock	Enquiry
MW-2207003	Tee fitting T B7, 2 x tube (hose) 6/4 / 1/4" BSPT male	-	60	In stock	Enquiry
MW-2207004	Tee fitting T B7, 2 x tube (hose) 8/6 / 1/8" BSPT male	-	60	In stock	Enquiry
MW-2207005	Tee fitting T B7, 2 x tube (hose) 8/6 / 1/4" BSPT male	-	60	In stock	Enquiry
MW-2207006	Tee fitting T B7, 2 x tube (hose) 8/6 / 3/8" BSPT male	-	60	In stock	Enquiry
MW-2207007	Tee fitting T B7, 2 x tube (hose) 10/8 / 1/4" BSPT male	-	60	In stock	Enquiry
MW-2207008	Tee fitting T B7, 2 x tube (hose) 10/8 / 3/8" BSPT male	-	60	In stock	Enquiry
MW-2207010	Tee fitting T B7, 2 x tube (hose) 12/10 / 3/8" BSPT male	-	60	In stock	Enquiry
MW-2207011	Tee fitting T B7, 2 x tube (hose) 12/10 / 1/2" BSPT male	-	60	In stock	Enquiry
MW-2207012	Tee fitting T B7, 2 x tube (hose) 15/12 / 1/2" BSPT male	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Tee fitting “T” with BSPT male thread, type B7, with a cutting ring, designed for connecting copper pipes and plastic hoses. When connecting to hoses, the use of reinforcing sleeves (B12) is recommended. Material: nickel-plated brass. Working pressure: 60 bar.
