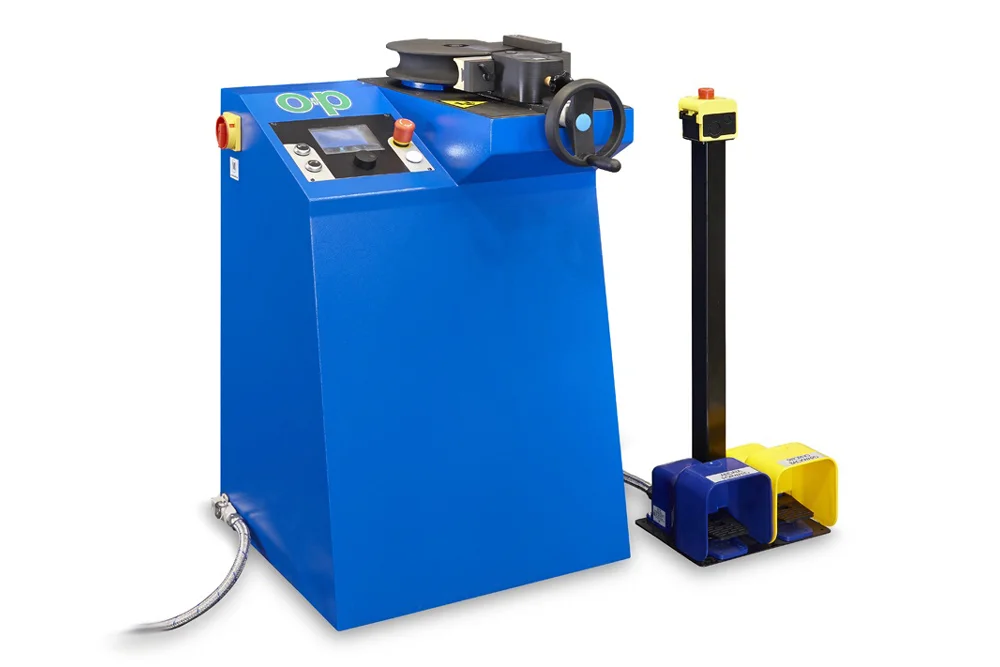

Semi-automatic pipe bending machine 6 ÷ 50 mm, type C50ES
Semi-automatic device for bending hydraulic pipes with an electric drive hydraulic pump. The design and operating principle involve wrapping the pipe around a rotating template. The device is electronically controlled from a built-in panel, allowing for precise bending. By pressing the “start” button on the control panel, the machine independently bends the pipe to the specified angle without additional operator intervention. Optionally available dual electric foot pedal with a safety switch. Tools (templates) for bending the pipe are ordered separately (18 sizes). Bending range: 6 ÷ 50 mm (wall thickness 3 mm). Power supply: 400 V, 50/60 Hz, 1.1 kW. Maximum bending angle: 180°. Bending speed for a 90° angle: 6 seconds. Bending accuracy: ±1°.
