Can REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series be installed in series with different output pressure settings while using the same supply pressure?

Yes. REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series can be installed in series and supplied from the same supply pressure. Each valve can be independently set to a different output pressure (0â2, 0â4, 0â8, or 0â12 bar) regardless of the other valvesâ settings. The regulated output air is taken from the pressure gauge connection (BSP 1/8"). Note supply limitations: maximum supply pressure up to 15 bar, operating temperature up to +50Â°C, connections BSP 1/4" or 3/8", and flow up to 950 l/min (at inlet 6 bar, Îp = 1 bar).

Can REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series be supplied from the same inlet while delivering different outlet pressures?

Yes. REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series can be supplied from the same inlet while delivering different outlet pressures. They can be installed in series and each valve can be set independently to a different output pressure. Output air is taken from the pressure gauge connection (1/8â). Specifications: size 100, output ranges 0â2, 0â4, 0â8, 0â12 bar, supply up to 15 bar, operating temperature up to +50Â°C, connections BSP 1/4" or 3/8", pressure gauge BSP 1/8", flow 950 l/min (inlet 6 bar, Îp = 1 bar).

Can REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series have independent outlet pressures when connected in series?

Yes. REG series pressure reducing valves for compressed air, with end plates, SKILLAIRÂ® series can be installed in series and each valve can have an independent outlet pressure setting. They may be supplied from the same inlet pressure, and the output air is taken from the pressure gauge connection (1/8").

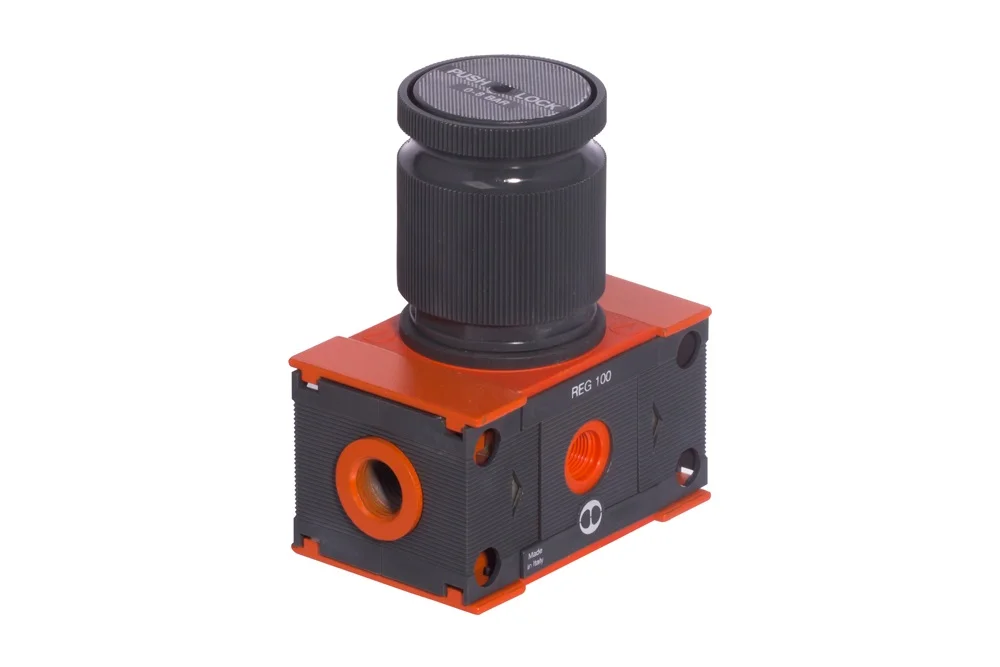

REG series pressure reducing valves for compressed air, with end plates, SKILLAIR® series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

Series REG pressure reducing valves, SKILLAIR® series, with end plates, are used to regulate working pressure, ensuring the proper operation of devices. They can be installed in series and supplied with the same pressure. Each valve can have a different output pressure setting, independent of the settings of other valves. The output air is taken from the pressure gauge connection (1/8”). Size: 100. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 15 bar. Operating temperature: up to +50°C. Connection: BSP 1/4″ or 3/8″. Pressure gauge connection: BSP 1/8″. Flow: 950 l/min (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3202101	Series pressure reducing valve REG B 100 1/4 02 (SKILLAIR)	-	-	In stock	Enquiry
MW-3202102	Series pressure reducing valve REG B 100 1/4 04 (SKILLAIR)	-	-	In stock	Enquiry
MW-3202103	Series pressure reducing valve REG B 100 1/4 08 (SKILLAIR)	-	-	In stock	Enquiry
MW-3202104	Series pressure reducing valve REG B 100 1/4 012 (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Series REG pressure reducing valves, SKILLAIR® series, with end plates, are used to regulate working pressure, ensuring the proper operation of devices. They can be installed in series and supplied with the same pressure. Each valve can have a different output pressure setting, independent of the settings of other valves. The output air is taken from the pressure gauge connection (1/8”). Size: 100. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 15 bar. Operating temperature: up to +50°C. Connection: BSP 1/4″ or 3/8″. Pressure gauge connection: BSP 1/8″. Flow: 950 l/min (at an inlet pressure of 6 bar Δp = 1 bar).
