Is the NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel rated for continuous use at 250 bar and +150Â°C?

Yes. The NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel is rated for continuous use at 250 bar and up to +150Â°C. The product description specifies chromeâplated brass for the socket, hardened steel for the plug, a working pressure of 250 bar and an operating temperature of +150Â°C, which confirms those continuous-use ratings.

Can the NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel withstand rapid pressure spikes up to 250 bar?

The NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel Format is rated for a working pressure of 250 bar and construction materials (chromeâplated brass socket, hardened steel plug) and an operating temperature up to +150Â°C indicate it is designed for highâpressure service. However, the specified working pressure refers to steady operating conditions; rapid transient spikes can produce higher peak stresses. Without explicit manufacturer data on burst pressure, fatigue resistance to pressure spikes, or specified transient/maximum impulse ratings, you cannot assume safe resistance to repeated or unexpected spikes above 250 bar. For oneâoff short spikes exactly up to 250 bar the coupling should tolerate them if within the stated working pressure and proper installation, but for frequent, higher, or poorly characterized spikes request manufacturer confirmation or use components with a certified impulse/burst margin.

Does the NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel have corrosion resistance for saline environments?

NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel: short answer. limited corrosion resistance in saline environments, but not fully corrosion-proof. Why: - The socket is made of chrome-plated brass. Brass has reasonable resistance to corrosion and is often used in water fittings, and the chrome plating adds a protective layer that improves resistance to oxidation and some corrosive agents. However, in saline (chloride-rich) environments, brass can suffer dezincification and pitting over time, and chrome plating can be damaged by mechanical wear or sustained chloride attack, reducing protection. - The plug is hardened steel. Plain hardened steel is susceptible to corrosion in saline environments unless specifically stainless or coated with a corrosion-resistant finish. The description does not state stainless steel or a corrosion-resistant coating beyond âhardened steel,â so the plug is likely to corrode when exposed to saltwater or salty atmospheres. - Working pressure (250 bar) and high operating temperature (+150Â°C) do not confer corrosion resistance; in fact, higher temperatures can accelerate corrosion processes. Practical implication: - For occasional exposure to non-aggressive wet conditions, the set may perform acceptably. For continuous or repeated exposure to saltwater, marine, offshore, or de-icing-salt environments, corrosion of the plug (and potential degradation of the chrome plating on the socket) is likely over time, risking reduced function and sealing. - If you need reliable long-term performance in saline environments, choose connectors specified as stainless steel (e.g., AISI 316/316L) or with explicit marine-grade corrosion-resistant coatings and manufacturer corrosion resistance data or salt spray test results. Recommendation: - Confirm with the manufacturer whether the hardened steel plug has any protective coating or passivation and whether the chrome plating on the brass socket is specified for marine use. For critical saline applications, select a version made of stainless steel or explicitly rated for saltwater exposure.

NiTO connector set high pressure socket and plug with GW BSP, brass, hardened steel

Additional information

Material	B – brass (bronze)

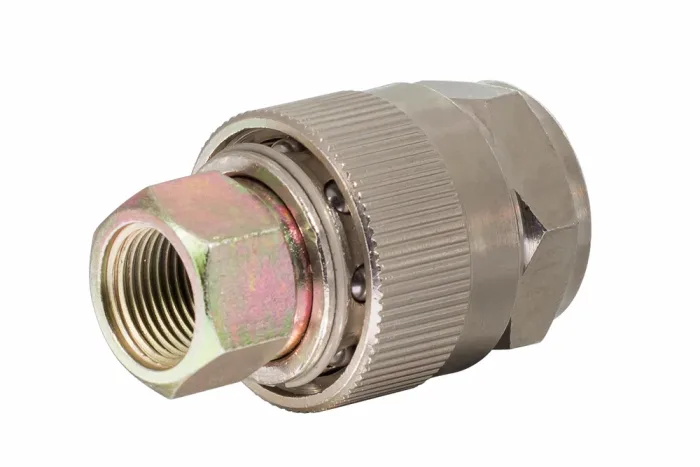

NiTO connector set, socket and plug for high-pressure water quick coupling with internal BSP threads. Material: chrome-plated brass (socket), hardened steel (plug). Working pressure: 250 bar. Operating temperature: +150°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
NT-65506I3	Quick-connect socket and plug high pressure GW 3/8	-	250	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

NiTO connector set, socket and plug for high-pressure water quick coupling with internal BSP threads. Material: chrome-plated brass (socket), hardened steel (plug). Working pressure: 250 bar. Operating temperature: +150°C.
