Can Single-acting actuator ISO 15552 type A be fitted with position sensors in the integrated longitudinal grooves for automatic feedback?

Yes. Single-acting actuator ISO 15552 type A can be fitted with position sensors in the integrated longitudinal grooves for automatic feedback. The actuatorâs calibrated anodized aluminum profile includes longitudinal grooves on three walls specifically designed for direct mounting and protection of piston position sensors (as well as valves and other components). For piston diameters Ã 32â63 mm and strokes 30â200 mm, sensors mounted in these grooves will be protected and positioned for reliable feedback within the stated operating conditions (0.4â10 bar, â10Â°C to +80Â°C). Ensure selected sensors are compatible with the groove dimensions, pneumatic environment, sealing materials (polyurethane), and required pressure/temperature ratings; verify sensor type (mechanical, magnetic, or inductive) and mounting hardware for secure installation.

Can Single-acting actuator ISO 15552 type A operate reliably at pressures below 0.4 bar or above 10 bar?

Single-acting actuator ISO 15552 type A cannot be relied upon to operate outside its specified operating pressure range of 0.4 to 10 bar. Its documented operating pressure explicitly starts at 0.4 bar and tops at 10 bar; using it below 0.4 bar may not provide sufficient force or proper sealing/function, while pressures above 10 bar risk mechanical overload, seal failure (polyurethane), and possible structural damage despite high-pressure aluminum components. For reliable and safe operation, stay within 0.4â10 bar or consult the manufacturer for a validated alternative or special version.

Does Single-acting actuator ISO 15552 type A support mounting of external valves in the longitudinal grooves?

Yes. Single-acting actuator ISO 15552 type A supports mounting of external valves in the longitudinal grooves. The profile is made of calibrated anodized aluminum with longitudinal grooves on three walls designed for direct mounting and protection of piston position sensors; the same grooves are explicitly stated to be used for direct mounting of valves and other mechanical components.

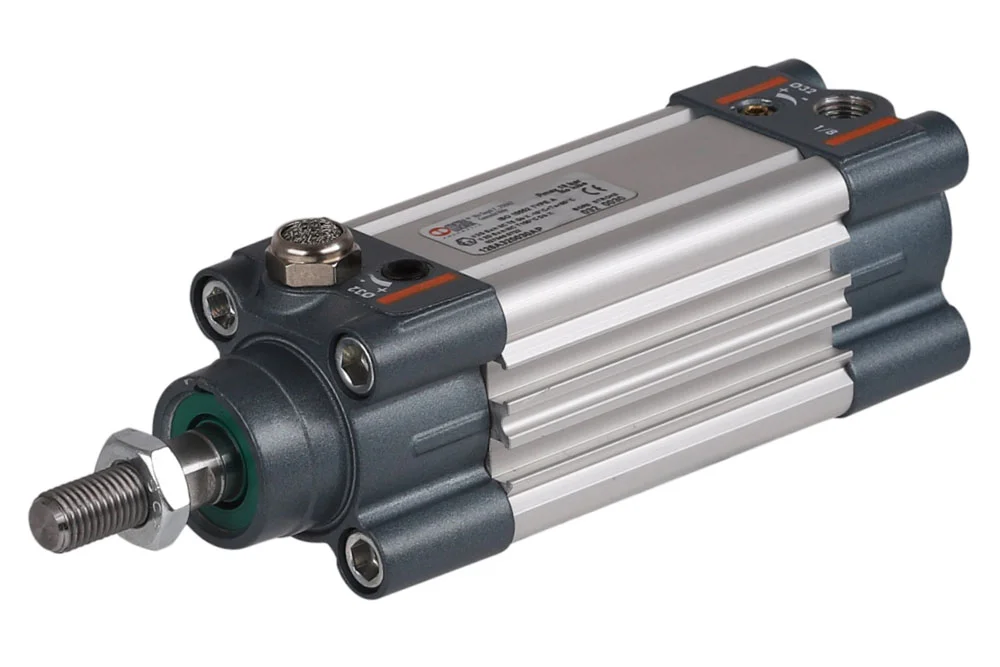

Single-acting actuator ISO 15552 type A

All products, Pneumatic actuators/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-10

Single-acting actuator ISO 15552 type A, features a cover made of high-pressure aluminum casting and a profile made of calibrated anodized aluminum, which includes longitudinal grooves on three walls allowing for direct mounting and protection of the piston position sensors. The same grooves are used for direct mounting of valves and other mechanical components. Piston diameter: Ø 32 ÷ 63 mm. Stroke length: from 30 to 200 mm. Operating pressure: from 0.4 to 10 bar. Sealing: polyurethane. Operating temperature: from -10°C to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-126A320030AP	Actuator VDMA ISO 15552 32-0030	-	10	In stock	Enquiry
MW-126A320050AP	Actuator VDMA ISO 15552 32-0050	-	10	In stock	Enquiry
MW-126A320130AP	Actuator VDMA ISO 15552 32-0130	-	10	In stock	Enquiry
MW-126A400030AP	Actuator VDMA ISO 15552 40-0030	-	10	In stock	Enquiry
MW-126A400080AP	Actuator VDMA ISO 15552 40-0080	-	10	In stock	Enquiry
MW-126A400100AP	Actuator VDMA ISO 15552 40-0100	-	10	In stock	Enquiry
MW-126A500050AP	Actuator VDMA ISO 15552 50-0050	-	10	In stock	Enquiry
MW-126A500060AP	Actuator VDMA ISO 15552 50-0060	-	10	In stock	Enquiry
MW-126A500130AP	Actuator VDMA ISO 15552 50-0130	-	10	In stock	Enquiry
MW-126A630030AP	Actuator VDMA ISO 15552 63-0030	-	10	In stock	Enquiry
MW-126A630080AP	Actuator VDMA ISO 15552 63-0080	-	10	In stock	Enquiry
MW-126A630200AP	Actuator VDMA ISO 15552 63-0200	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Single-acting actuator ISO 15552 type A, features a cover made of high-pressure aluminum casting and a profile made of calibrated anodized aluminum, which includes longitudinal grooves on three walls allowing for direct mounting and protection of the piston position sensors. The same grooves are used for direct mounting of valves and other mechanical components. Piston diameter: Ø 32 ÷ 63 mm. Stroke length: from 30 to 200 mm. Operating pressure: from 0.4 to 10 bar. Sealing: polyurethane. Operating temperature: from -10°C to +80°C.
