Is the SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series compatible with hydraulic oil and temperatures from -35Â°C to +120Â°C using NBR seals?

Yes. The SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series is compatible with hydraulic oil and the temperature range â35Â°C to +120Â°C when fitted with NBR seals. The product data lists hydraulic power (hydraulic oil) among intended applications, and NBR sealing is specified with an operating temperature range of â35Â°C to +120Â°C. Ensure correct size/pressure rating for your system (working pressure up to 690 bar depending on coupling size) and verify flow/pressure-drop requirements for your application.

Can SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series be used for steam and chemicals with Viton seals at up to +204Â°C?

Yes. SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series can be used for steam and many chemicals at temperatures up to +204Â°C only if Viton seals are fitted and the specific chemical is compatible with Viton. The coupling material (AISI 316) and Viton seals cover the stated temperature range (Viton: -26Â°C to +204Â°C). Confirm the working pressure and size meet your required pressure (working pressure up to 690 bar depending on size) and ensure flow/pressure-drop (specified for 3 bar) is acceptable. Always verify chemical compatibility of Viton with the specific steam/chemical media and consider system safety factors and service conditions before use.

Can SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series be used for fuels and gases?

Yes. the SNAP-TITE quick-connect socket with GW BSP and NPSF without valve, AISI 316 steel, H series can be used for fuels and gases, provided you select the appropriate sealing material and verify service conditions. The product description explicitly lists industrial applications including fuels and oils and gases. Key considerations: - Material compatibility: Body is AISI 316 stainless steel, suitable for many fuels and gases. - Seals: Available in NBR (â35Â°C to +120Â°C) and Viton (â26Â°C to +204Â°C). Choose Viton for higher temperatures or aggressive fuels/chemicals; NBR is acceptable for many mineral oils and fuels at lower temperatures. - Pressure: Rated up to 690 bar depending on size, with 2:1 safety factor. confirm the coupling size and system working pressure. - Standards and performance: Built to MILâCâ51234; flow specified for a 3 bar pressure drop. ensure flow meets your application needs. - Chemical compatibility and safety: Always verify compatibility of the chosen seal with the specific fuel or gas (additives, biofuels, H2, hydrocarbons, etc.) and consult manufacturer compatibility charts for aggressive chemicals or specialty gases. - Installation and service conditions: Consider temperature range, pressure spikes, intended gases (flammability, toxicity), and local regulations. If you provide the specific fuel or gas, operating pressure, temperature range, and coupling size, I can confirm suitability and recommend the appropriate seal material.

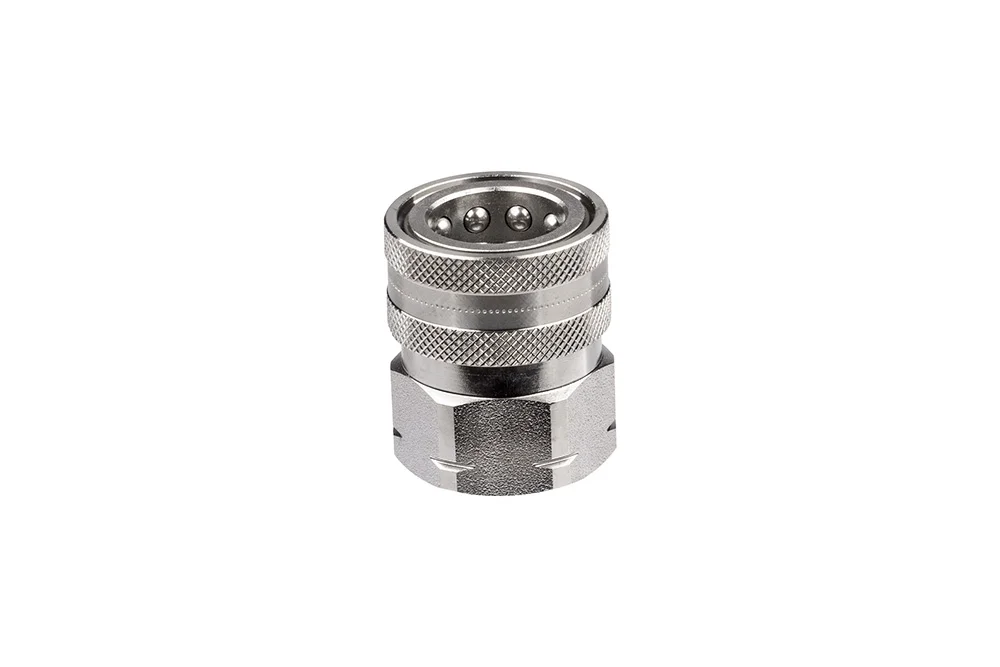

Quick-coupling socket SNAP-TITE with female thread BSP and NPSF without a valve, AISI 316, H series

All products, Hydraulic quick couplings/

Additional information

Material	SS – stainless steel

Quick-coupling socket SNAP-TITE with a BSP female thread and NPSF American-made, without a valve. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Working pressure: up to 690 bar (depending on the quick-coupling size), Safety factor 2:1. Material: AISI 316. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SN-SPHC12-12RP	Socket H 3/4", 3/4" BSP female, AISI 316, without valve	-	138	In stock	Enquiry
SN-SPHC12-12RPV	Socket H 3/4", 3/4" BSP female, AISI 316, without valve, Viton	-	138	In stock	Enquiry
SN-SPHC16-16RP	Socket H 1", 1" BSP female, AISI 316, without valve	-	138	In stock	Enquiry
SN-SPHC24-24RP	Socket H 1.1/2", 1.1/2" BSP female, AISI 316, without valve	-	103	In stock	Enquiry
SN-SPHC32-32RP	Socket H 2", 2" BSP female, AISI 316, without valve	-	34	In stock	Enquiry
SN-SPHC4-4F	Socket H 1/4", 1/4" female NPSF, AISI 316, without valve	-	345	In stock	Enquiry
SN-SPHC4-4RP	Socket H 1/4", 1/4" BSP female, AISI 316, without valve	-	345	In stock	Enquiry
SN-SPHC4-4RPSL	Socket H 1/4", 1/4" BSP female, AISI 316, without valve, stem	-	345	In stock	Enquiry
SN-SPHC4-4RPV	Socket H 1/4", 1/4" BSP female, AISI 316, without valve, Viton	-	345	In stock	Enquiry
SN-SPHC4-4RPVSL	Socket H 1/4", 1/4" BSP female, AISI 316, without a valve, Viton, stem	-	345	In stock	Enquiry
SN-SPHC6-6RP	Socket H 3/8", 3/8" BSP female, AISI 316, without valve	-	276	In stock	Enquiry
SN-SPHC6-6RPV	Socket H 3/8", 3/8" BSP female, AISI 316, without valve, Viton	-	276	In stock	Enquiry
SN-SPHC8-8RP	Socket H 1/2", 1/2" BSP female, AISI 316, without valve	-	259	In stock	Enquiry
SN-SPHC8-8RPSL	Socket H 1/2", 1/2" BSP female, AISI 316, without valve, stem	-	259	In stock	Enquiry
SN-SPHC8-8RPV	Socket H 1/2", 1/2" BSP female, AISI 316, without valve, Viton	-	259	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling socket SNAP-TITE with a BSP female thread and NPSF American-made, without a valve. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Working pressure: up to 690 bar (depending on the quick-coupling size), Safety factor 2:1. Material: AISI 316. Sealing: NBR (Operating temperature: from -35°C to +120°C), Viton (Operating temperature: from -26°C to +204°C). The flow is given for a pressure drop of 3 bar.
