Is the ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA suitable for agricultural hydraulic oil systems up to 350â¯bar?

Yes. The ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA is suitable for agricultural hydraulic oil systems up to 350 bar, provided you select the correct coupling size (working pressure depends on size). It is designed for power hydraulics and agricultural machinery, uses NBR seals compatible with hydraulic oil, is made of galvanized steel, rated for -20Â°C to +100Â°C, has a 4:1 safety factor, and flow ratings are given at a 3 bar pressure drop. Ensure the specific size/version you choose is the one rated to 350 bar.

Can the ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA be used with NBR seals at temperatures below -20Â°C?

No. ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA uses NBR seals with an operating temperature range from â20 Â°C to +100 Â°C. Below â20 Â°C NBR loses elasticity, becomes brittle and may leak or fail under pressure, so it is not suitable for reliable service at temperatures under â20 Â°C. For applications below â20 Â°C select a coupling with low-temperature compatible seals (e.g. FKM, HNBR rated for lower temperatures, or specialty lowâtemperature elastomers) and confirm compatibility with hydraulic oil and pressure requirements.

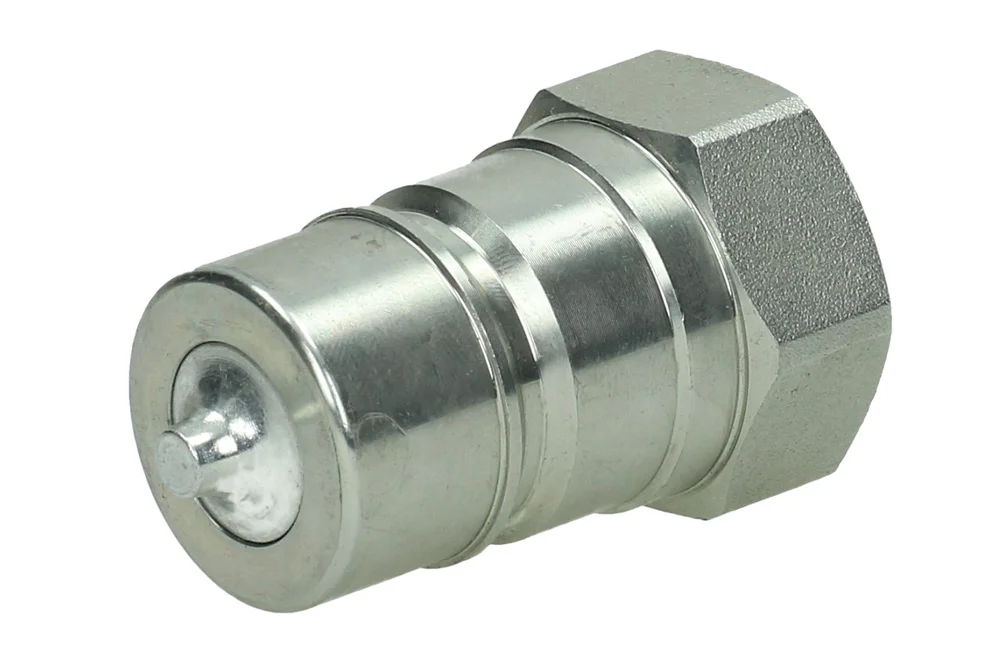

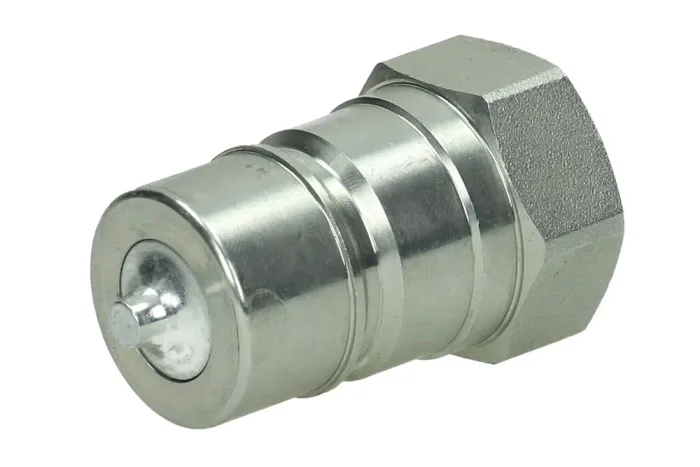

ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA

Q: Is the ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA compatible with other manufacturersâ ISO-A (euro) couplings?

Yes . the ISO-A hydraulic quick connector plug with GW BSP with valve, DRAGON, type IA is compatible with other manufacturersâ ISO-A (euro) couplings. The product is described as an ISO-A hydraulic quick coupling with shut-off valve and internal BSP thread, intended for power hydraulics and commonly used in agricultural machinery. It is explicitly noted as interchangeable with ISO-A quick couplings from other manufacturers, meaning it follows the ISO-A (euro) dimensional and performance standards. Materials and seals (galvanized steel, NBR), operating temperature (-20Â°C to +100Â°C), working pressure (up to 350 bar depending on size), safety factor 4:1, and flow rating at a 3 bar pressure drop align with typical ISO-A specifications, supporting interchangeability.

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic quick coupling with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR. Operating temperature: from -20°C to +100°C. Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DG-IA06-M-04G	DRAGON ISO-A DN6 plug with 1/4" BSP female thread, 350 bar	-	350	In stock	Enquiry
DG-IA10-M-06G	DRAGON ISO-A DN10 plug with 3/8" BSP female thread, 315 bar	-	315	In stock	Enquiry
DG-IA12-M-08G	DRAGON ISO-A DN12 plug with 1/2" BSP female thread, 250 bar	-	250	In stock	Enquiry
DG-IA19-M-12G	DRAGON ISO-A DN19 plug with 3/4" BSP female thread, 250 bar	-	250	In stock	Enquiry
DG-IA25-M-16G	DRAGON ISO-A DN25 plug with 1" BSP female thread, 230 bar	-	230	In stock	Enquiry
DG-IA32-M-20G	DRAGON ISO-A DN32 plug with 1.1/4" BSP female thread, 230 bar	-	230	In stock	Enquiry
DG-IA40-M-24G	DRAGON ISO-A DN40 plug with 1.1/2" BSP female thread, 180 bar	-	180	In stock	Enquiry
DG-IA50-M-32G	DRAGON ISO-A DN50 plug with 2" BSP female thread, 130 bar	-	130	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic quick coupling with shut-off valve and internal BSP thread. Application: power hydraulics (hydraulic oil). The quick coupling is mainly used in agricultural machinery. Commonly referred to as “euro couplings.” Interchangeable with ISO-A quick couplings from other manufacturers. Material: galvanized steel. Seal of the coupling: NBR. Operating temperature: from -20°C to +100°C. Working pressure: up to 350 bar (depending on the size of the quick coupling). Safety factor 4:1. Flow is specified for a pressure drop of 3 bar.
