Can the SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series be used with steam at 200Â°C and what seals are recommended?

No . the SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series as described is not suitable for steam at 200Â°C when fitted with the standard NBR seals. NBR has an operating temperature range of about -35Â°C to +120Â°C and will degrade rapidly at steam temperatures around 200Â°C. For steam at 200Â°C you should specify highâtemperature seals such as: - PTFE (Teflon) or filled PTFE (good chemical resistance and high temperature capability), or - Graphite (flexible graphite) seals/packing for highâtemperature steam service, or a combination (PTFE backup with graphite face) depending on pressure and dynamic/static sealing needs. Also confirm: - Compatibility of the carbon steel, galvanizing and valve design with steam (oxidation/ corrosion at temperature), - Maximum working pressure of the specific coupling size at 200Â°C (rating may drop with temperature), - Whether the valve/lubrication and any elastomeric components inside the valve require replacement or modification. Recommendation: consult the manufacturer with the required pressure, cycle rate and service conditions and specify PTFE or graphite highâtemperature seals and any necessary material/finish changes before using with 200Â°C steam.

Is the SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series suitable for potable water and food-grade fluids?

Based on the provided description, the SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series is designed for industrial fluids including water and steam, but its suitability for potable water and food-grade fluids is not confirmed. Materials listed (carbon steel, galvanized) and NBR sealing are common for industrial use but may not meet potable water or food-grade standards (e.g., NSF/ANSI, FDA, WRAS) or required corrosion resistance and hygienic compatibility. For potable or food-grade applications, confirm certification of materials and seals and consider stainless steel and food-grade elastomers. Without documented approvals, it should not be assumed safe for potable water or food-grade fluids.

Can the SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series be used with hydrogen gas applications?

SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series: based on the provided description, this coupling is specified for hydraulic power (hydraulic oil) and industrial media (water, steam, fuels and oils, gases, chemicals). However, safe use with hydrogen requires consideration beyond the general listing: - Materials: the coupling body is carbon steel, galvanized. Hydrogen can cause embrittlement in some steels under certain pressure, temperature and stress conditions. The description does not state hydrogen-compatibility or use of hydrogen-resistant alloys. - Seals: standard sealing is NBR (nitrile) rated -35Â°C to +120Â°C. NBR is generally not recommended for hydrogen service because hydrogen permeation and compatibility can be poor; specialized elastomers (e.g., PTFE, FKM variants, or metals) are typically required. - Valve design and leak tightness: hydrogen requires extremely low permeation and leak rates. The text notes a valve for laminar flows but gives no hydrogen leakage or permeation data or specific qualification/testing for hydrogen service. - Pressure and safety factor: working pressures up to 448 bar are stated (size-dependent) with a 2:1 safety factor. High-pressure hydrogen systems commonly require specific design margins, testing, and certifications beyond general hydraulic standards (MIL-C-51234 is not a hydrogen-specific standard). Conclusion: You should not assume safe use of SNAP-TITE quick connect socket with GW BSP with valve, carbon steel, H series with hydrogen based solely on the provided description. For hydrogen applications, request manufacturer confirmation of hydrogen compatibility, specify hydrogen-rated materials and seals, obtain leak/permeation and embrittlement test data, and ensure relevant hydrogen certifications and pressure ratings are met. If unavailable, use couplings explicitly qualified for hydrogen service.

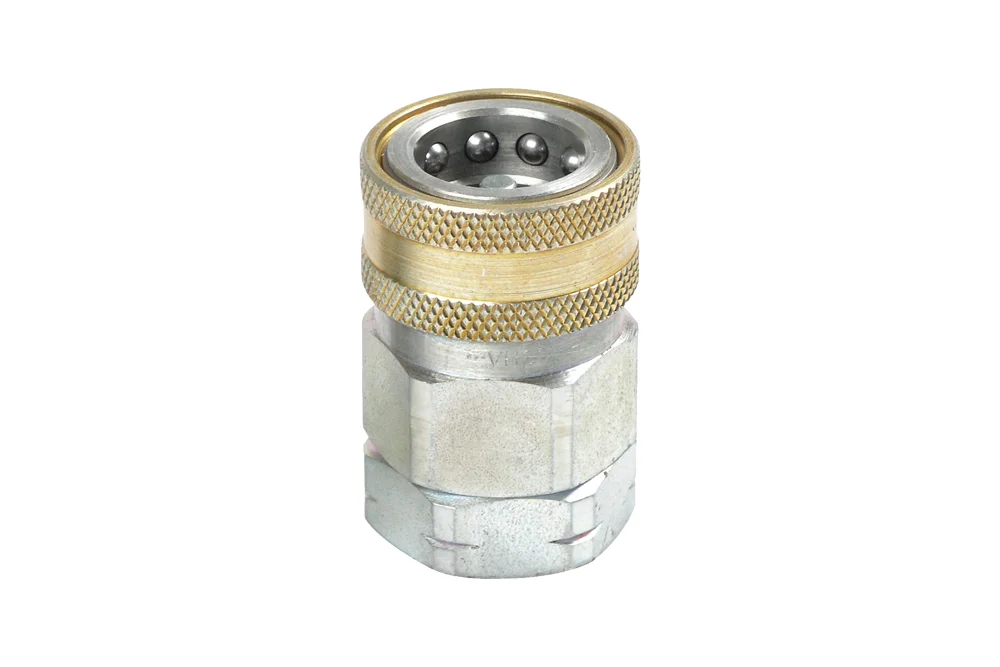

Quick-coupling socket SNAP-TITE with female thread BSP with a valve, carbon steel, H series

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 448 bar (depending on the quick-coupling size), Safety factor 2:1. Material: carbon steel, galvanized. Sealing: NBR (from -35°C to +120°C). The flow is given for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
SN-VHC12-12RP	Socket H 3/4", 3/4" BSP female	-	241	In stock	Enquiry
SN-VHC16-16RP	Socket H 1", 1" BSP female	-	138	In stock	Enquiry
SN-VHC20-20RP	Socket H 1.1/4", 1.1/4" BSP female	-	121	In stock	Enquiry
SN-VHC24-24RP	Socket H 1.1/2", 1.1/2" BSP female	-	103	In stock	Enquiry
SN-VHC24-24RPSL	Socket H 1.1/2", 1.1/2" BSP female, stem	-	103	In stock	Enquiry
SN-VHC4-4RP	Socket H 1/4", 1/4" BSP female	-	448	In stock	Enquiry
SN-VHC6-6RP	Socket H 3/8", 3/8" BSP female	-	310	In stock	Enquiry
SN-VHC8-8RP	Socket H 1/2", 1/2" BSP female	-	276	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Quick-coupling socket SNAP-TITE with a BSP female thread American-made is characterized by a unique valve design, which allows laminar flows to be achieved. Depending on the application, the appropriate coupling and seal material should be selected. Standard: MIL-C-51234. Application: power hydraulics (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Working pressure: up to 448 bar (depending on the quick-coupling size), Safety factor 2:1. Material: carbon steel, galvanized. Sealing: NBR (from -35°C to +120°C). The flow is given for a pressure drop of 3 bar.
