Can the SPEEDFIT plastic air distributor box be used with both plastic and metal pipes (12â28 mm) at 10 bar working pressure?

Yes. The SPEEDFIT plastic air distributor box is designed for use with both plastic and metal pipes (copper, brass, aluminum) with outer diameters from 12 mm to 28 mm. It supports a working pressure of 10 bar at +23Â°C (reduced to 7 bar at +70Â°C). The body is plastic and the set includes three 1/2â³ plugs; connections are 5Ã1/2â³ BSP threads. Ensure installation and operating temperature range (â20Â°C to +70Â°C) and the specified pressure limits are respected.

Is the SPEEDFIT plastic air distributor box suitable for continuous use at +70Â°C and 7 bar pressure?

Yes. The SPEEDFIT plastic air distributor box is specified for continuous operation up to +70Â°C at a working pressure of 7 bar. Its rated working pressure is 10 bar at +23Â°C and 7 bar at +70Â°C, and the operating temperature range is -20Â°C to +70Â°C, so using it continuously at +70Â°C and 7 bar falls within the stated limits. Ensure proper installation with compatible plastic or metal pipes and follow any manufacturer installation guidelines.

Does the SPEEDFIT plastic air distributor box include 1/2â³ BSP plugs and how many are supplied?

Yes. the SPEEDFIT plastic air distributor box includes 1/2â³ BSP plugs. The set supplies three 1/2â³ BSP plugs.

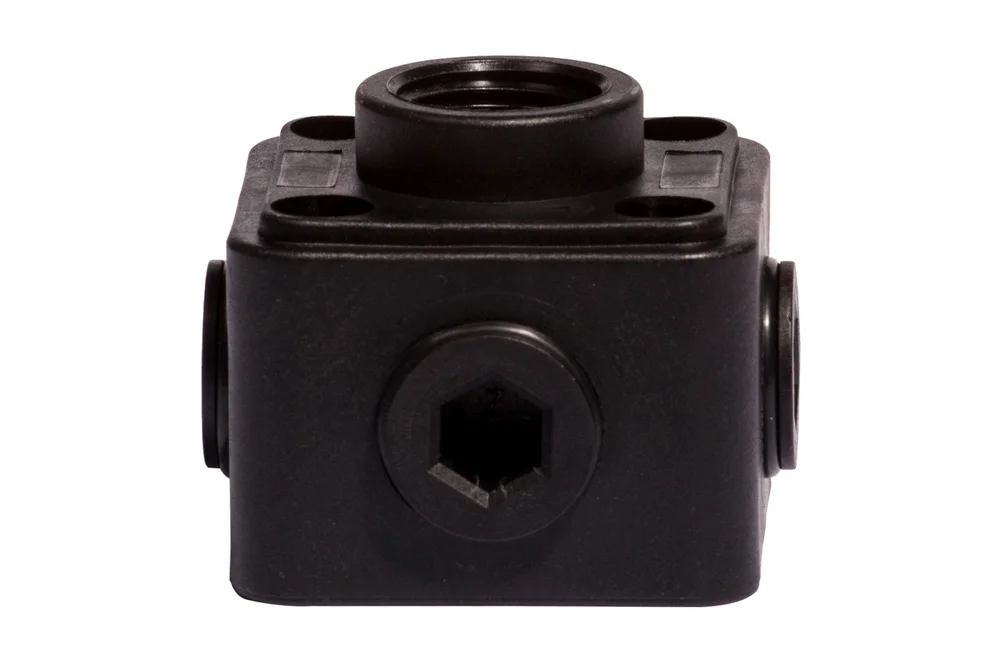

Plastic A box the directional valve air SPEEDFIT

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)

Plastic A box the directional valve air for system SPEEDFIT with threads 5×1/2″ BSP used in installations compressed air. W a set is found three plugs 1/2″. The installation can be made using plastic or metal pipes (copper, brass, aluminum) with outer diameters from 12 mm to 28 mm). Material: plastic plastic. pressure working: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
JG-LWSK-08	Air distribution box	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Plastic A box the directional valve air for system SPEEDFIT with threads 5×1/2″ BSP used in installations compressed air. W a set is found three plugs 1/2″. The installation can be made using plastic or metal pipes (copper, brass, aluminum) with outer diameters from 12 mm to 28 mm). Material: plastic plastic. pressure working: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.
