Is the UWSB flame retardant spiral pneumatic hose suitable for outdoor use given its UV resistance and -40Â°C to +70Â°C operating range?

Yes . the UWSB flame retardant spiral pneumatic hose is suitable for outdoor use. Key reasons: - UV resistance and aging resistance are explicitly stated, so it will withstand sunlight exposure. - Operating temperature range of -40Â°C to +70Â°C covers typical outdoor climates in most regions. - Material is flameâretardant polyurethane (PUR) with UL 94 Vâ0 outer layer, offering good weathering, abrasion and spark resistance useful for outdoor industrial environments. - High shore hardness (A98) and abrasion/welding spark resistance increase durability outdoors. - Note practical limits: prolonged exposure to extreme UV/chemicals or temperatures near the limits may reduce life; ensure correct fittings and mounting to avoid mechanical damage and check compatibility with specific outdoor conditions (chemicals, prolonged sunlight, or continuous mechanical wear).

Can the UWSB flame retardant spiral pneumatic hose be used with pneumatic tools that require BSPT threaded fittings?

Yes. The UWSB flame retardant spiral pneumatic hose is finished with external BSPT threaded ends, so it can be used with pneumatic tools that require BSPT fittings. Ensure you match the correct BSPT size and check that the hoseâs working pressure (up to 13 bar, depending on diameter) and temperature range (â40Â°C to +70Â°C) meet your toolâs requirements.

Does the UWSB flame retardant spiral pneumatic hose meet UL 94 VO flame-retardant requirements for indoor installations?

Yes. The UWSB flame retardant spiral pneumatic hose meets UL 94 V-0 flame-retardant requirements for indoor installations on the outer layer. The product description explicitly lists "UL 94 VO (outer layer)" and specifies the hose material as flame-retardant polyurethane (PUR), indicating the external surface conforms to the UL 94 Vâ0 classification suitable for applications where a Vâ0 rated outer layer is required.

UWSB flame retardant spiral pneumatic hose

All products, Pneumatic hoses/

Additional information

Material	B – brass (bronze)
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	no

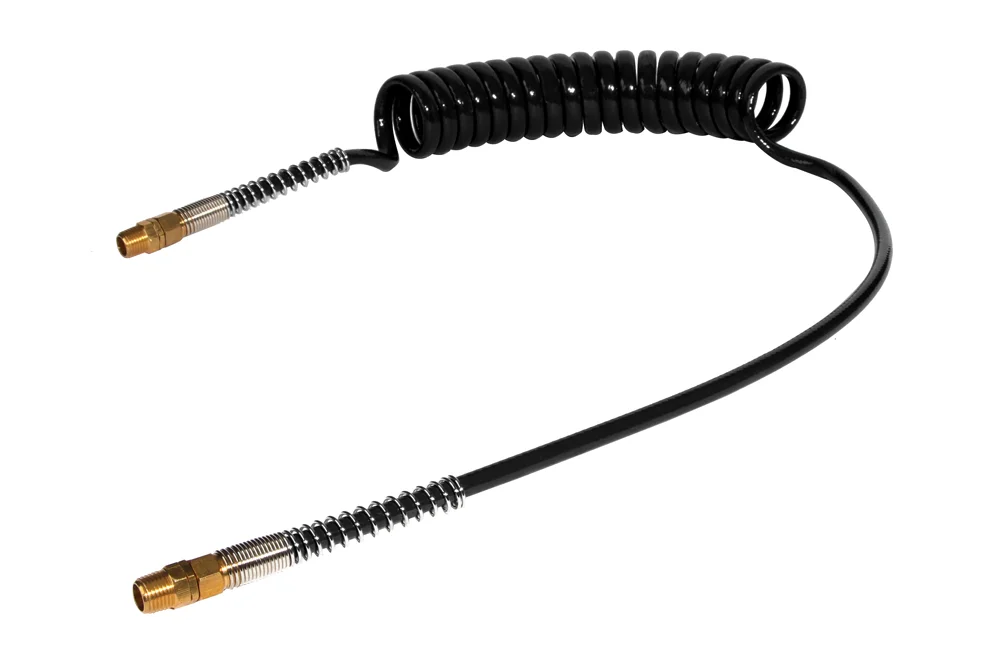

Very flexible spiral hose over a wide temperature range, resistant to abrasion, welding sparks, and hot metal chips. Designed for pneumatic control systems, hand tools, industrial robots, etc. Resistant to UV radiation and aging. Finished on both ends with straight sections of 100 mm and 500 mm and external BSPT threaded ends. Shore hardness (A) 98°. The stated total length is the maximum length of the hose when stretched. Hose material: flame-retardant polyurethane PUR. Working pressure: up to 13 bar (depending on hose diameter). Operating temperature: from -40°C to +70°C. Standards: UL 94 VO (outer layer). Color black.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
SH-UWSB-06-020BK	Spiral hose UWSB 6x4 mm, L = 2 m with GZ 1/4", black	4	11
SH-UWSB-06-050BK	Spiral hose UWSB 6x4 mm, L = 5 m with GZ 1/4", black	4	11
SH-UWSB-06-075BK	Spiral hose UWSB 6x4 mm, L = 7.5 m with GZ 1/4", black	4	11
SH-UWSB-06-100BK	Spiral hose UWSB 6x4 mm, L = 10 m with GZ 1/4", black	4	11
SH-UWSB-08-020BK	Spiral hose UWSB 8x5 mm, L = 2 m with GZ 1/4", black	5	13
SH-UWSB-08-050BK	Spiral hose UWSB 8x5 mm, L = 5 m with GZ 1/4", black	5	13
SH-UWSB-08-075BK	Spiral hose UWSB 8x5 mm, L = 7.5 m with GZ 1/4", black	5	13
SH-UWSB-08-100BK	Spiral hose UWSB 8x5 mm, L = 10 m with GZ 1/4", black	5	13
SH-UWSB-10-020BK	Spiral hose UWSB 10x6.5 mm, L = 2 m with GZ 1/4", black	6	11
SH-UWSB-10-050BK	Spiral hose UWSB 10x6.5 mm, L = 5 m with GZ 1/4", black	6	11
SH-UWSB-10-075BK	Spiral hose UWSB 10x6.5 mm, L = 7.5 m with GZ 1/4", black	6	11
SH-UWSB-10-100BK	Spiral hose UWSB 10x6.5 mm, L = 10 m with GZ 1/4", black	6	11
SH-UWSB-12-020BK	Spiral hose UWSB 12x8 mm, L = 2 m with GZ 3/8", black	8	10
SH-UWSB-12-050BK	Spiral hose UWSB 12x8 mm, L = 5 m with GZ 3/8", black	8	10
SH-UWSB-12-075BK	Spiral hose UWSB 12x8 mm, L = 7.5 m with GZ 3/8", black	8	10
SH-UWSB-12-100BK	Spiral hose UWSB 12x8 mm, L = 10 m with GZ 3/8", black	8	10

Very flexible spiral hose over a wide temperature range, resistant to abrasion, welding sparks, and hot metal chips. Designed for pneumatic control systems, hand tools, industrial robots, etc. Resistant to UV radiation and aging. Finished on both ends with straight sections of 100 mm and 500 mm and external BSPT threaded ends. Shore hardness (A) 98°. The stated total length is the maximum length of the hose when stretched. Hose material: flame-retardant polyurethane PUR. Working pressure: up to 13 bar (depending on hose diameter). Operating temperature: from -40°C to +70°C. Standards: UL 94 VO (outer layer). Color black.
