Is the Stainless steel ball valve with BSP thread, type 2006SC/SM3 suitable for steam service up to 200Â°C and compatible with common petrochemical fluids?

Yes. The Stainless steel ball valve with BSP thread, type 2006SC/SM3 is suitable for steam service up to 200Â°C and compatible with common petrochemical fluids, with the following conditions and caveats: - Temperature: Rated operating temperature is â20Â°C to +200Â°C, so it is suitable for steam service up to 200Â°C (ensure your systemâs maximum temperature does not exceed this). - Materials: Body and ball are stainless steel CF8M, and lever is AISI 304 . materials generally acceptable for steam and many petrochemical media. - Seals: Ball and stem sealing are PTFE/RTFE, which perform well up to the stated 200Â°C but may have limitations with certain aggressive chemicals or high-temperature steam over time. Verify compatibility of PTFE with any specific petrochemical fluids in your application. - Standards: Meets PED Directive 2014/68/EU, supporting use in pressurized industrial installations. - Installation notes: Confirm system pressure, cycle frequency, presence of abrasive or highly oxidizing fluids, and any regulatory or safety requirements. For aggressive chemicals, high temperatures near the limit, or critical services, consult manufacturer or materials engineer for confirmatory compatibility and lifetime expectations. Conclusion: Generally suitable for steam up to 200Â°C and common petrochemical fluids, provided chemical compatibility and operating conditions are verified.

Can the Stainless steel ball valve with BSP thread, type 2006SC/SM3 be used with aggressive chemicals considering PTFE seals and CF8M wetted parts?

Yes - Stainless steel ball valve with BSP thread, type 2006SC/SM3 can be used with many aggressive chemicals, but only if the specific fluid is compatible with CF8M stainless steel and PTFE/RTFE seals. The valve is rated for air, gases, water, steam, chemicals and petrochemical products, with wetted parts in CF8M and PTFE sealing, operating from â20Â°C to +200Â°C. Before use with aggressive media, verify chemical compatibility (corrosion, stress corrosion cracking, temperature effects) and confirm seal resistance to the specific chemical and temperature. For high-risk or critical services, perform compatibility testing or consult manufacturer and applicable safety/PED requirements.

Does the Stainless steel ball valve with BSP thread, type 2006SC/SM3 comply with PED 2014/68/EU for pressure equipment?

Yes. Stainless steel ball valve with BSP thread, type 2006SC/SM3 complies with the PED 2014/68/EU requirements. The product description explicitly states it "meets the requirements of the PED Directive 2014/68/EU." Its construction materials (stainless steel CF8M body and ball, AISI 304 lever, PTFE/RTFE seals), intended media range, connection type (BSP female thread) and operating temperature range (-20Â°C to +200Â°C) align with typical PED considerations for design and materials. Note that final applicability may depend on installation pressure, volume, and category assessment for the specific pressure equipment assembly; conformity documentation (e.g., Declaration of Conformity, applicable module, and any notified body certificate if required) should be reviewed for project-specific verification.

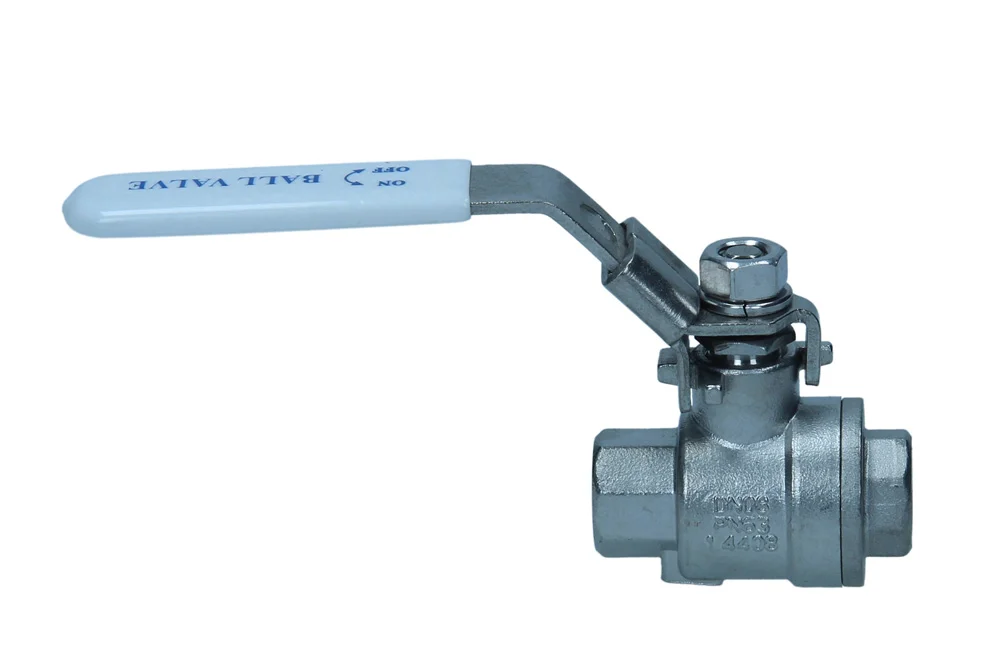

Ball valve stainless with female thread BSP, type 2006SC/SM3

All products, Ball valves/

Additional information

Material	SS – stainless steel

Universal Two-part ball valve with full bore and a lock lever type 2006SC/SM3, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: BSP female. Operating temperature: from -20°C to +200°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HT-2006SC-08	Valve ball type 2006 SC 1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-10	Valve ball type 2006 SC 3/8" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-15	Valve ball type 2006 SC 1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-20	Valve ball type 2006 SC 3/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-25	Valve ball type 2006 SC 1" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-32	Valve ball type 2006 SC 1.1/4" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-40	Valve ball type 2006 SC 1.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-50	Valve ball type 2006 SC 2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-65	Valve ball type 2006 SC 2.1/2" BSP female, AISI 316	-	63	In stock	Enquiry
HT-2006SC-80	Valve ball type 2006 SC 3" BSP female, AISI 316	-	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Universal Two-part ball valve with full bore and a lock lever type 2006SC/SM3, intended for installations industrial. can be used for air, gases, water, water vapor, chemicals, products petrochemical, itp., taking into account chemical resistance material valve and sealing. Meets the requirements of the PED 2014/68/EU directive. Material the body: cast steel stainless CF8M. Material the ball: cast steel stainless CF8M. Material lever: steel AISI 304. sealing the ball: PTFE / RTFE. sealing stem: PTFE. connection: BSP female. Operating temperature: from -20°C to +200°C.
