Is the Steel clamping ring with safety insert EAR CLIP-W, carbon steel suitable for hoses with fragile or thin outer layers?

Yes. The Steel clamping ring with safety insert EAR CLIP-W, carbon steel is suitable for hoses with fragile or thin outer layers. Its internal AISI 301 stainless steel protective insert cushions the contact area, evens out pressure around the circumference, and the rounded inner edges reduce the risk of cutting or damaging delicate hose surfaces. The design is explicitly recommended for hoses with delicate construction.

Does the Steel clamping ring with safety insert EAR CLIP-W, carbon steel prevent hose abrasion at the clamp contact point?

Yes. The Steel clamping ring with safety insert EAR CLIP-W, carbon steel includes an internal protective insert (AISI 301 stainless steel) and rounded inner edges that protect the hose surface at the clamp contact point. This design distributes pressure more evenly around the circumference and is specifically recommended for hoses with delicate construction to prevent abrasion and damage at the clamp.

How does the Steel clamping ring with safety insert EAR CLIP-W, carbon steel protect hose integrity under high pressure?

The Steel clamping ring with safety insert EAR CLIP-W, carbon steel protects hose integrity under high pressure through three coordinated design features: 1. Internal protective insert. the AISI 301 stainless steel insert sits between the main ring and the hose, preventing direct metal-to-hose contact. This barrier reduces abrasion and cutting at the clamp point, which is critical when internal pressure tries to push or extrude hose material into gaps. 2. Even radial pressure distribution. the insert and the ring geometry flatten and spread the clamping force more uniformly around the hose circumference. By avoiding concentrated high-pressure lines, the clamp lowers the risk of local deformation, kinking, or burst initiation under high-pressure cycles. 3. Rounded inner edges. the ringâs rounded contact edges and the smooth insert profile eliminate sharp stress concentrators. That protects delicate hose constructions and seals from nicking or scoring that could lead to premature failure. Together, the galvanized carbon steel main ring provides structural strength while the stainless insert offers corrosion-resistant, hose-friendly contactâcombining to secure the hose reliably under high-pressure conditions without damaging its surface.

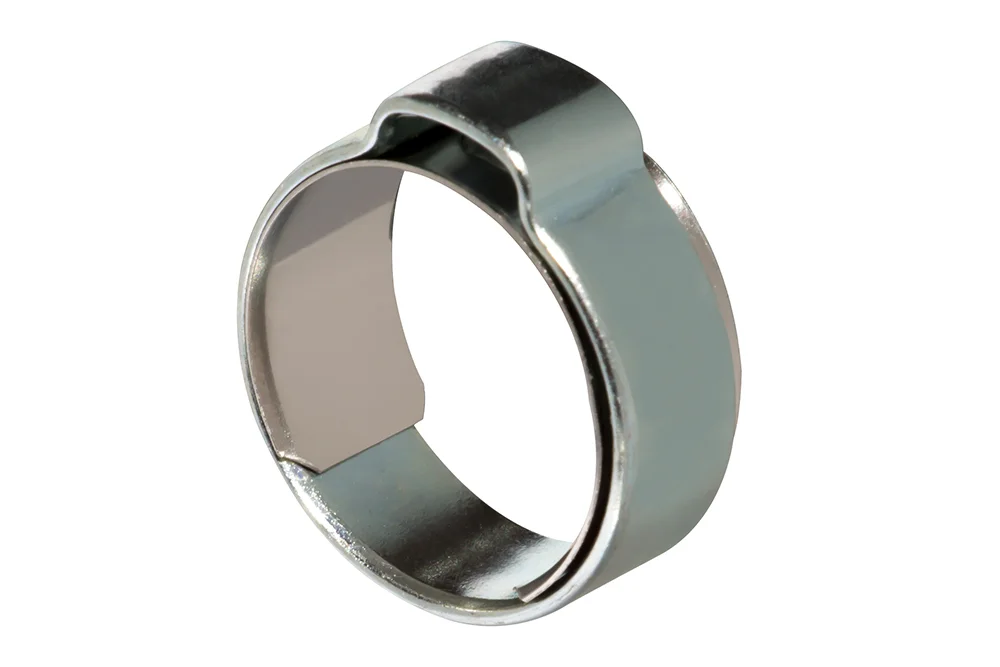

Steel clamping ring with safety insert EAR CLIP-W, carbon steel

All products, Clamps for mounting ends/

Additional information

Material	CS – steel (cast iron)

The EAR CLIP-W clamp ring is an improved solution of the EARCLIP ring. It features an internal protective insert designed to safeguard the hose surface at the clamp ring’s contact point and ensure more uniform pressure around the circumference. Recommended for hoses with delicate construction. Rounded edges inside the ring protect the hose from damage. Material: galvanized carbon steel (main ring), AISI 301 stainless steel (insert).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-03011009	Clamp ring. EAR CLIP-1 with insert 7.5÷8.5 mm, W1	-	-	In stock	Enquiry
AB-03011010	Clamp ring. EAR CLIP-1 with insert 8÷9.5 mm, W1	-	-	In stock	Enquiry
AB-03011029	Clamp ring. EAR CLIP-1 with insert 9÷10.5 mm, W1	-	-	In stock	Enquiry
AB-03011037	Clamp ring. EAR CLIP-1 with insert 10÷11.5 mm, W1	-	-	In stock	Enquiry
AB-03011045	Clamp ring. EAR CLIP-1 with insert 10.5÷12.5 mm, W1	-	-	In stock	Enquiry
AB-03011053	Clamp ring. EAR CLIP-1 with insert 11.5÷13.3 mm, W1	-	-	In stock	Enquiry
AB-03011061	Clamp ring. EAR CLIP-1 with insert 13÷15.3 mm, W1	-	-	In stock	Enquiry
AB-03011070	Clamp ring. EAR CLIP-1 with insert 15÷17.3 mm, W1	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

The EAR CLIP-W clamp ring is an improved solution of the EARCLIP ring. It features an internal protective insert designed to safeguard the hose surface at the clamp ring’s contact point and ensure more uniform pressure around the circumference. Recommended for hoses with delicate construction. Rounded edges inside the ring protect the hose from damage. Material: galvanized carbon steel (main ring), AISI 301 stainless steel (insert).
