Is the straight end fitting for hose with GZ BSP, polypropylene/PVDF, series 2N type EM suitable for PTFE and glass tubing at 10 bar working pressure?

Yes. The KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM is suitable for PTFE and glass tubing at 10 bar working pressure. The product is specifically designed for rigid hoses and tubes made of fluoropolymers (PTFE, FEP, PFA) and glass, uses a locking ring and nut for hose/tube retention, and seals with a PTFE ring. Its design avoids cross-sectional reductions, preserving media flow. Materials (polypropylene/PVDF) and the stated working pressure of 10 bar confirm compatibility.

Can the KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM be used with metal and PA hoses?

Yes. The KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM can be used with metal and PA (polyamide) hoses. It is designed for rigid hoses and tubes including metal and polyamide (PA), secures the hose/tube with a locking ring and nut, and seals with a PTFE ring. Materials: polypropylene, PVDF. Working pressure: 10 bar.

Can KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM prevent flow restriction in PTFE or FEP hoses?

Can KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM prevent flow restriction in PTFE or FEP hoses? Yes. KoÅcÃ³wka prosta do wÄÅ¼a z GZ BSP z tworzywa PP, PVDF, seria 2N typ EM is specifically designed for rigid hoses and tubes made of fluoropolymers such as PTFE and FEP. The fitting uses a locking ring and nut to secure the hose and a PTFE sealing ring to ensure a leak-free connection. Importantly, this solution eliminates cross-sectional reductions inside the hose at the connection point, so it does not create flow restrictions and does not adversely affect media flow. The fitting is suitable for pressures up to 10 bar and is available in various sizes and diameters to match hose dimensions.

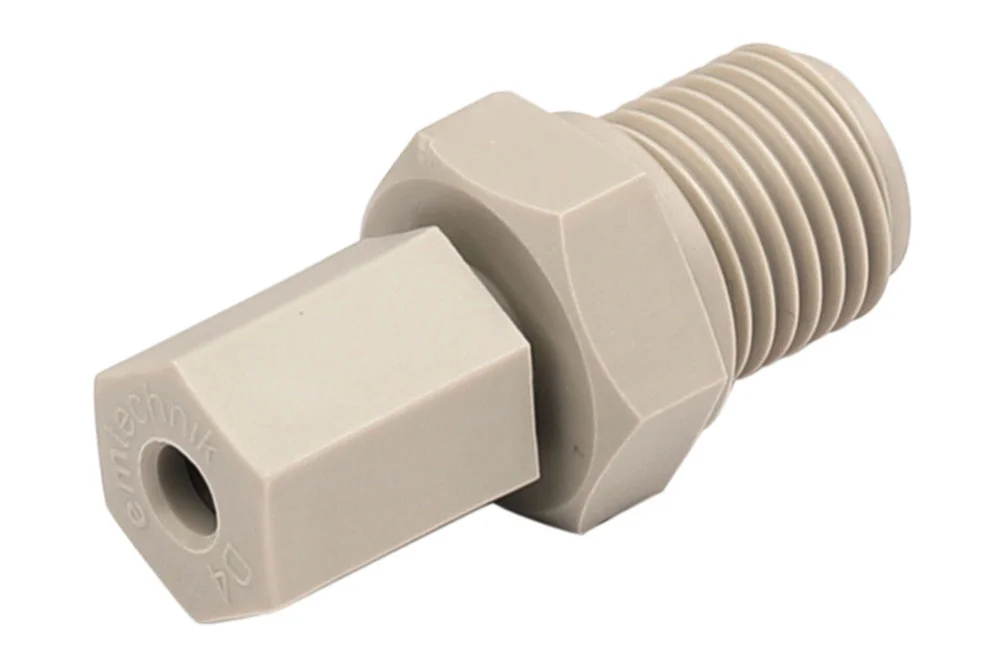

Straight hose fitting with a BSP male thread of PP, PVDF plastic, 2N series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Straight hose fitting with a BSP male thread 2N series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for rigid hoses and tubes made of PTFE, FEP, PFA fluoropolymers, glass and metal tubes, polyamide (PA) tubes and tubes made of polyethylene (PE). The hose/tube is locked in the fitting by means of a cutting ring and a nut. The connection is sealed by a PTFE ring. This solution eliminates any reduction of the hose cross-section, which as a result does not affect the flow of media. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-2N100MG3814PP	Straight fitting (2N series) with 1/4" BSP male, hose 4 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG3814PV	Straight fitting (2N series) with 1/4" BSP male, hose 4 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG3818PP	Straight fitting (2N series) with 1/8" BSP male, hose 4 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG3818PV	Straight fitting (2N series) with 1/8" BSP male, hose 4 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG4014PP	Straight fitting (2N series) with 1/4" BSP male, hose 6 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG4014PV	Straight fitting (2N series) with 1/4" BSP male, hose 6 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG4038PP	Straight fitting (2N series) with 3/8" BSP male, hose 6 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG4038PV	Straight fitting (2N series) with 3/8" BSP male, hose 6 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG4312PP	Straight fitting (2N series) with 1/2" BSP male, hose 8 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG4312PV	Straight fitting (2N series) with 1/2" BSP male, hose 8 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG4338PP	Straight fitting (2N series) with 3/8" BSP male, hose 8 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG4338PV	Straight fitting (2N series) with 3/8" BSP male, hose 8 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG4812PP	Straight fitting (2N series) with 1/2" BSP male, hose 12 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG4812PV	Straight fitting (2N series) with 1/2" BSP male, hose 12 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG5112PP	Straight fitting (2N series) with 1/2" BSP male, hose 14 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG5112PV	Straight fitting (2N series) with 1/2" BSP male, hose 14 mm, PVDF	-	10	In stock	Enquiry
EM-2N100MG5212PP	Straight fitting (2N series) with 1/2" BSP male, hose 15 mm, polypropylene	-	10	In stock	Enquiry
EM-2N100MG5212PV	Straight fitting (2N series) with 1/2" BSP male, hose 15 mm, PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight hose fitting with a BSP male thread 2N series type EM, is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. It is intended for rigid hoses and tubes made of PTFE, FEP, PFA fluoropolymers, glass and metal tubes, polyamide (PA) tubes and tubes made of polyethylene (PE). The hose/tube is locked in the fitting by means of a cutting ring and a nut. The connection is sealed by a PTFE ring. This solution eliminates any reduction of the hose cross-section, which as a result does not affect the flow of media. Other sizes and diameters of ends and connectors are available. Material: polypropylene, PVDF. Working pressure: 10 bar.
