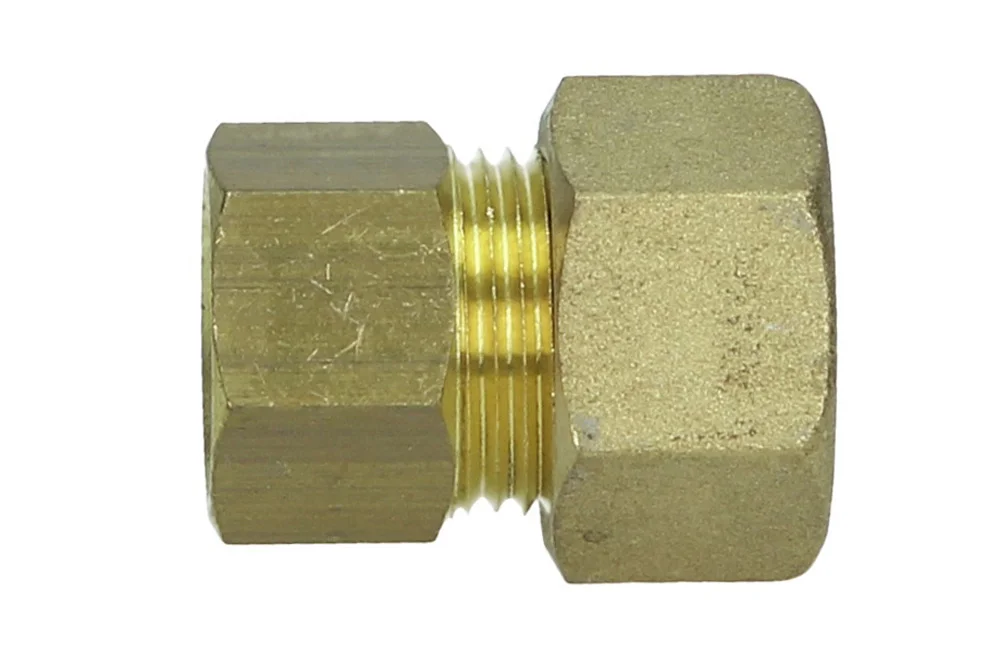

Straight connector with a BSP female thread, brass, type AI 13500
Straight connector with a BSP female thread type AI 13500 intended for joining copper, brass, steel, aluminum, etc. pipes as well as plastic pipes and hoses (e.g. polyamide). Range of external diameters of the joined pipes from 4 to 22 mm. The tightness of the connection is achieved by clamping the ring onto the joined pipe and simultaneously pressing the pipe with the ring into the socket by means of a nut. Standard: EN 1254-2. Material: brass.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Straight connector with a BSP female thread type AI 13500 intended for joining copper, brass, steel, aluminum, etc. pipes as well as plastic pipes and hoses (e.g. polyamide). Range of external diameters of the joined pipes from 4 to 22 mm. The tightness of the connection is achieved by clamping the ring onto the joined pipe and simultaneously pressing the pipe with the ring into the socket by means of a nut. Standard: EN 1254-2. Material: brass.
Additional information
| Material | B – brass (bronze) |
|---|
