Is the BSP universal female threaded end, moleskin nut, brass, NiTO type A compatible with hoses for up to 25 bar and +80Â°C?

Yes. The BSP universal female threaded end, moleskin nut, brass, NiTO type A described is compatible with hoses rated up to 25 bar and up to +80Â°C. The product specification lists a working pressure of 25 bar and an operating temperature up to +80Â°C, and its internal BSP thread with flat sealing is designed as a universal connection for compatible hose fittings. Ensure the hose and mating fittings also meet the same pressure and temperature ratings and that the flat sealing method (BSP flat face) matches the counterpart to guarantee proper sealing.

Can BSP universal female threaded end, moleskin nut, brass, NiTO type A be used with flat-sealing fittings on metal or rubber hoses?

Yes. BSP universal female threaded end, moleskin nut, brass, NiTO type A with internal BSP thread and flat sealing is designed for flat-sealing fittings and can be used with metal or rubber hoses that employ flat-face or flat-seat connectors. Material (brass), working pressure (25 bar) and temperature limit (up to +80Â°C) are compatible with typical metal and rubber hose assemblies, provided the mating fitting also uses a flat sealing surface and the hose assembly is rated for the same pressure and temperature. Ensure correct BSP thread match and proper hose/fitting construction to maintain seal and safety.

Does the BSP universal female threaded end, moleskin nut, brass, NiTO type A require a specific gasket material for flat sealing?

No. the BSP universal female threaded end, moleskin nut, brass, NiTO type A Format, described as a brass hose end with internal BSP thread and flat sealing, does not inherently require a specific gasket material to achieve flat sealing. Because the design uses a flat sealing face, compatibility and performance depend on the mating surface and the fluid, temperature (up to +80Â°C) and pressure (25 bar). Common practice: - Soft elastomer gaskets (e.g., NBR/Nitrile, EPDM) provide good sealing for many water, oil and air applications within the given temperature and pressure ranges. - For hydrocarbons or higher chemical resistance, Viton (FKM) is often preferred. - For minimal compression set and chemical neutrality, PTFE (as a flat washer or backed gasket) can be used, though it seals differently and may need additional sealing measures. - If metal-to-metal flat sealing is intended, no soft gasket is used, but surfaces must be machined and fitted precisely; this is less forgiving. Select gasket material based on media compatibility, pressure/temperature, required reusability and compression characteristics. Verify gasket thickness and hardness to ensure proper flat-face compression without overstressing the knurled nut assembly. If in doubt, consult the fitting manufacturer or perform pressure/compatibility testing for your specific application.

Fitting with a BSP female thread universal, knurled nut, brass, NiTO type A

All products, Low-pressure fittings and adapters/

Additional information

Material	B – brass (bronze)

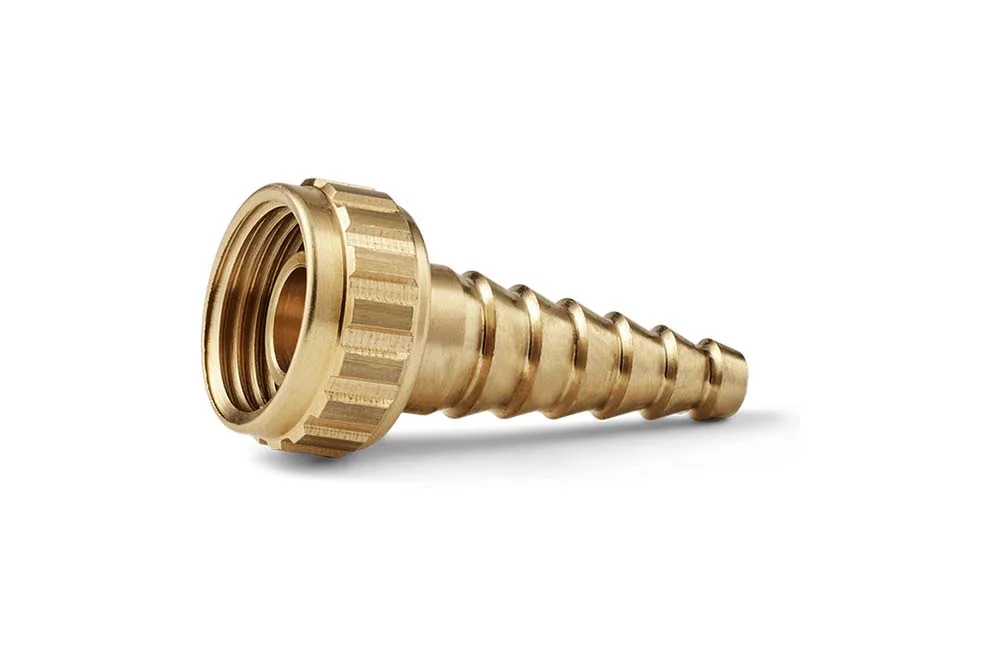

Brass Hose fitting, NiTO type A with a BSP female thread with a flat seal, universal, knurled nut. Material: brass. Working pressure: 25 bar. Operating temperature: up to +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
NT-27L42A4	Fitting type A 1/2" BSP female for hose 6.3÷15 mm, brass	12	25	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Brass Hose fitting, NiTO type A with a BSP female thread with a flat seal, universal, knurled nut. Material: brass. Working pressure: 25 bar. Operating temperature: up to +80°C.
