Is the JIC straight fitting with metric carbon steel GZ, type GE-ME compatible with standard 37Â° JIC ports and rectangular cross-section elastomer seals?

Yes. The JIC straight fitting with metric carbon steel GZ, type GE-ME is compatible with standard 37Â° JIC ports and rectangular cross-section elastomer seals. The product description . "Straight JIC 37Â° fitting with external metric thread (rectangular cross-section elastomer seal). Material: carbon steel, galvanized." . explicitly indicates a 37Â° JIC sealing face and a rectangular cross-section elastomer seal, which matches the sealing geometry used in standard 37Â° JIC port systems. The external metric thread version (GE-ME) provides metric thread connection while retaining the standard 37Â° flare sealing interface, allowing proper mating with conventional 37Â° JIC ports when the appropriate port dimensions and seal type are used. Ensure thread sizes and pitch (metric external thread) correspond to the mating port or adapter; when those match, the 37Â° sealing angle and rectangular elastomer seal will provide proper sealing.

Does the JIC straight fitting with metric carbon steel GZ, type GE-ME require any special installation tools or torque settings?

No special installation tools are required for the JIC straight fitting with metric carbon steel GZ, type GE-ME; standard hydraulic assembly tools (wrenches) suitable for the fitting size are sufficient. However, use appropriate torque settings to avoid damage: tighten to manufacturer-recommended torque for the specific thread size and material-if no exact value is provided, use typical JIC/metric carbon steel torque charts or consult the supplier. Ensure proper alignment, clean threads, and correct engagement of the rectangular cross-section elastomer seal; avoid over-tightening which can deform the seal or strip threads. If assembly instructions from the manufacturer are available, follow those torque and installation guidelines.

Can the JIC straight fitting with metric carbon steel GZ, type GE-ME be used in high-vibration applications?

Yes. the JIC straight fitting with metric carbon steel GZ, type GE-ME can be used in high-vibration applications, with some important considerations. Why itâs suitable - Design: The 37Â° JIC cone combined with an external metric thread and a rectangular cross-section elastomer seal provides reliable metal-to-elastomer sealing and good mechanical engagement, which resists loosening and leakage under vibration. - Material: Carbon steel (galvanized) offers strength and fatigue resistance appropriate for many high-vibration environments. - Elastomer seal: The rectangular cross-section elastomer absorbs micro-movements and maintains sealing integrity where rigid metal-to-metal seals alone might leak. Key considerations and best practices - Torque and installation: Use the manufacturerâs specified torque values and correct assembly procedure. Under- or over-torquing increases risk of loosening or seal damage under vibration. - Locking measures: For severe or continuous vibration, add mechanical locking (e.g., lockwire, safety clips, threadlock compound rated for hydraulic fittings, or locknuts) as recommended by the supplier. - Seal selection: Ensure the elastomer material is compatible with system fluids and operating temperatures; some elastomers degrade under heat/chemicals and lose resilience needed to withstand vibration. - Fatigue and cyclic loads: Evaluate cyclic pressure and dynamic loads. in extreme cases, consider fittings rated specifically for high-cycle fatigue or switch to alternative connection types designed for extreme vibration. - Maintenance and inspection: Implement periodic inspections for loosening, wear, or leakage and re-torque or replace fittings as needed. - Environmental protection: Galvanization helps corrosion resistance, but in corrosive environments additional coatings or stainless-steel alternatives may be preferable to prevent corrosion-related loosening. Conclusion The JIC straight fitting with metric carbon steel GZ, type GE-ME is generally suitable for high-vibration applications when properly installed, secured, and used with the correct elastomer/material compatibility. For very severe vibration or critical systems, consult the manufacturerâs vibration ratings and consider additional locking methods or higher-grade materials.

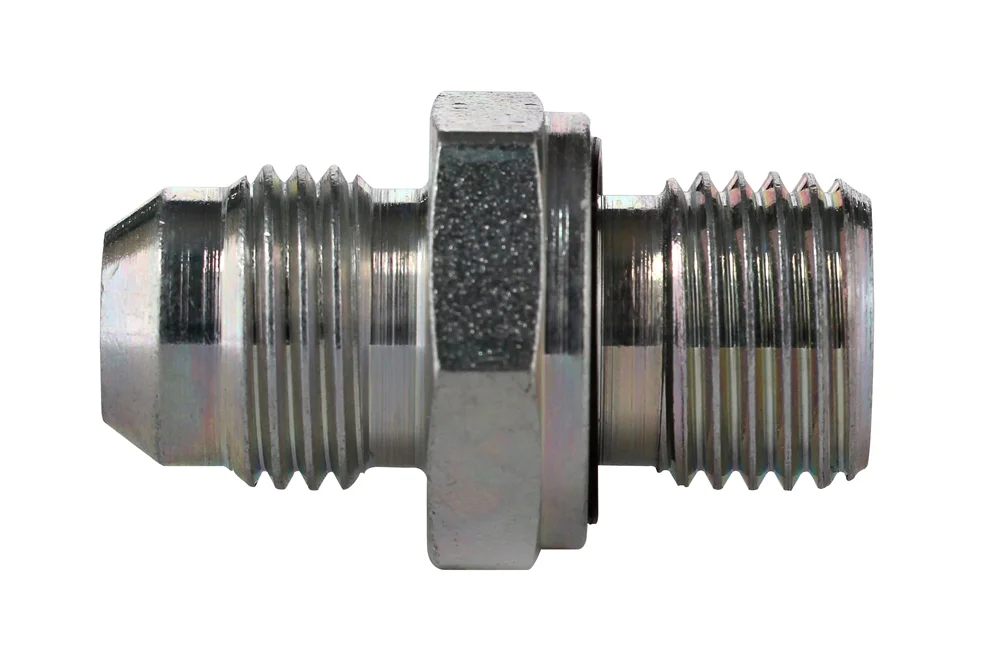

JIC straight fitting with metric carbon steel GZ, type GE-ME

Additional information

Material	CS – steel (cast iron)

Straight JIC 37° fitting with external metric thread (rectangular cross-section elastomer seal). Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-GE-07-ME-10	GZ JIC 7/16"-20 / GZ M10x1 fitting	-	350	In stock	Enquiry
HJ-GE-07-ME-12	GZ JIC 7/16"-20 / GZ M12x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-08-ME-10	GZ JIC 1/2"-20 fitting / GZ M10x1	-	350	In stock	Enquiry
HJ-GE-08-ME-12	GZ JIC 1/2"-20 connector / GZ M12x1.5	-	350	In stock	Enquiry
HJ-GE-08-ME-14	GZ JIC 1/2"-20 fitting / GZ M14x1.5	-	350	In stock	Enquiry
HJ-GE-09-ME-14	GZ JIC 9/16"-18 / GZ M14x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-09-ME-16	GZ JIC 9/16"-18 / GZ M16x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-12-ME-14	GZ JIC 3/4"-16 fitting / GZ M14x1.5	-	350	In stock	Enquiry
HJ-GE-12-ME-16	GZ JIC 3/4"-16 fitting / GZ M16x1.5	-	350	In stock	Enquiry
HJ-GE-12-ME-18	GZ JIC 3/4"-16 fitting / GZ M18x1.5	-	350	In stock	Enquiry
HJ-GE-14-ME-18	GZ JIC 7/8"-14 fitting / GZ M18x1.5	-	350	In stock	Enquiry
HJ-GE-14-ME-20	GZ JIC 7/8"-14 / GZ M20x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-14-ME-22	GZ JIC 7/8"-14 / GZ M22x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-17-ME-22	GZ JIC 1.1/16"-12 / GZ M22x1.5 fitting	-	350	In stock	Enquiry
HJ-GE-17-ME-27	GZ JIC 1.1/16"-12 / GZ M27x2 fitting	-	350	In stock	Enquiry
HJ-GE-21-ME-27	GZ JIC 1.5/16"-12 / GZ M27x2 fitting	-	350	In stock	Enquiry
HJ-GE-21-ME-33	GZ JIC 1.5/16"-12 / GZ M33x2 fitting	-	290	In stock	Enquiry
HJ-GE-26-ME-42	GZ JIC 1.5/8"-12 fitting / GZ M42x2	-	240	In stock	Enquiry
HJ-GE-30-ME-48	GZ JIC 1.7/8"-12 fitting / GZ M48x2	-	240	In stock	Enquiry
