Can NON SKIVE DKJ straight end, carbon steel, type NJW110 be crimped onto 4SP/4SH/R13/R15 hoses using TI-N sleeves without cutting the hose rubber?

Yes. The NON SKIVE DKJ straight end, carbon steel, type NJW110 (internal UNF thread, 74Â° cone sealing) is designed for crimping onto 4SP/4SH/R13/R15 hoses using TI-N crimping sleeves without cutting the hose rubber. Installation is specified as "without cutting the hose rubber," so when properly assembled with the correct sleeve size and crimping parameters for the hose construction, the fitting will be securely crimped and sealed without removing the hose cover. Ensure you use the manufacturer-recommended TI-N sleeve, the correct crimping die/profile, and follow crimping force/diameter specifications for the specific hose to achieve a compliant, leak-free assembly.

Is NON SKIVE DKJ straight end, carbon steel, type NJW110 compatible with TI-N sleeves for crimping onto 4SP/4SH/R13/R15 hoses without hose rubber trimming?

Yes. NON SKIVE DKJ straight end, carbon steel, type NJW110 (with internal UNF thread and 74Â° cone sealing) is designed for crimping in hoses type 4SP, 4SH, R13, and R15 using the TI-N crimping sleeve and specifies installation without cutting the hose rubber. Therefore it is compatible with TI-N sleeves for crimping onto 4SP/4SH/R13/R15 hoses without hose rubber trimming.

Does NON SKIVE DKJ straight end, carbon steel, type NJW110 require special tools to crimp with TI-N sleeves on 4SP/4SH/R13/R15?

No special tools are required beyond the standard hydraulic crimping equipment and the correct TIâN crimping sleeve sized for the hose. NON SKIVE DKJ straight end, carbon steel, type NJW110 is designed for crimping into 4SP/4SH/R13/R15 hoses using TIâN sleeves without cutting the hose rubber (nonâskive installation). Ensure you use the manufacturerâspecified die set and crimp dimensions for TIâN sleeves and verify sleeve/hose/end compatibility; follow standard crimping machine settings and inspection procedures.

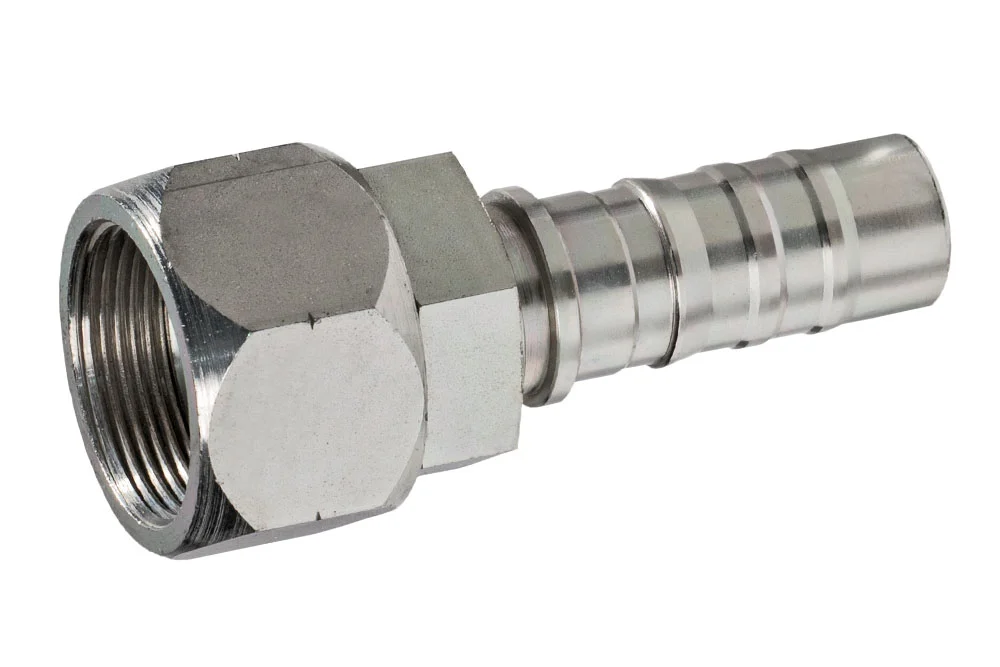

NON SKIVE DKJ straight end, carbon steel, type NJW110

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Straight NON SKIVE end with internal UNF thread, with sealing on a 74° cone (DKJ), intended for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-NJW110-17-12	End. JIC NON SKIVE GW 1.1/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW110-21-12	End. JIC NON SKIVE GW 1.5/16", hose 3/4"	20	-	In stock	Enquiry
TI-NJW110-21-16	End. JIC NON SKIVE GW 1.5/16", hose 1"	25	-	In stock	Enquiry
TI-NJW110-26-16	End. JIC NON SKIVE GW 1.5/8", hose 1"	25	-	In stock	Enquiry
TI-NJW110-26-20	End. JIC NON SKIVE GW 1.5/8", hose 1.1/4"	32	-	In stock	Enquiry
TI-NJW110-30-24	End. JIC NON SKIVE GW 1.7/8", hose 1.1/2"	38	-	In stock	Enquiry
TI-NJW110-40-32	End. JIC NON SKIVE GW 2.1/2", hose 2"	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight NON SKIVE end with internal UNF thread, with sealing on a 74° cone (DKJ), intended for crimping in hoses type 4SP, 4SH, R13, and R15 using crimping sleeve TI-N… . Installation: without cutting the hose rubber. Material: carbon steel, galvanized.
