Can Tee fitting "T", brass, type AI 13200 be used with both metal (copper, steel, aluminum) and plastic (polyamide) pipes within the 4â22 mm range?

Yes. Tee fitting "T", brass, type AI 13200 is designed for use with both metal pipes (copper, brass, steel, aluminum) and plastic pipes/hoses (e.g., polyamide) within the external diameter range 4â22 mm. The connection is made watertight by crimping a ring onto the pipe and simultaneously pressing the ringed pipe into the socket with a nut, complying with EN 1254-2. Ensure correct ring and crimping tooling for the specific pipe material and diameter, and follow manufacturer installation instructions to achieve proper seal and mechanical strength.

Is Tee fitting "T", brass, type AI 13200 suitable for use with both metal and plastic pipes (4â22 mm) requiring crimped connections?

Yes. Tee fitting "T", brass, type AI 13200 is suitable for use with both metal and plastic pipes (4â22 mm) that require crimped connections. It is designed to connect copper, brass, steel, aluminum and plastic pipes/hoses (e.g., polyamide). Tightness is achieved by crimping the ring on the pipe and pressing the ringed pipe into the socket with a nut. Standard: EN 1254-2. Material: brass.

Does Tee fitting "T", brass, type AI 13200 require specific crimp ring dimensions for pipes 4â22 mm?

Tee fitting "T", brass, type AI 13200 does require crimp rings sized to match the external diameter of the connected pipe within the 4â22 mm range. Tightness is achieved by crimping a ring onto the pipe and then securing the ringed pipe into the socket with the nut, so the ring must be the correct dimension for the specific pipe OD to ensure a proper seal and mechanical hold. Conformity to EN 1254-2 implies use of compatible crimp rings and tooling for the pipe material and OD being connected.

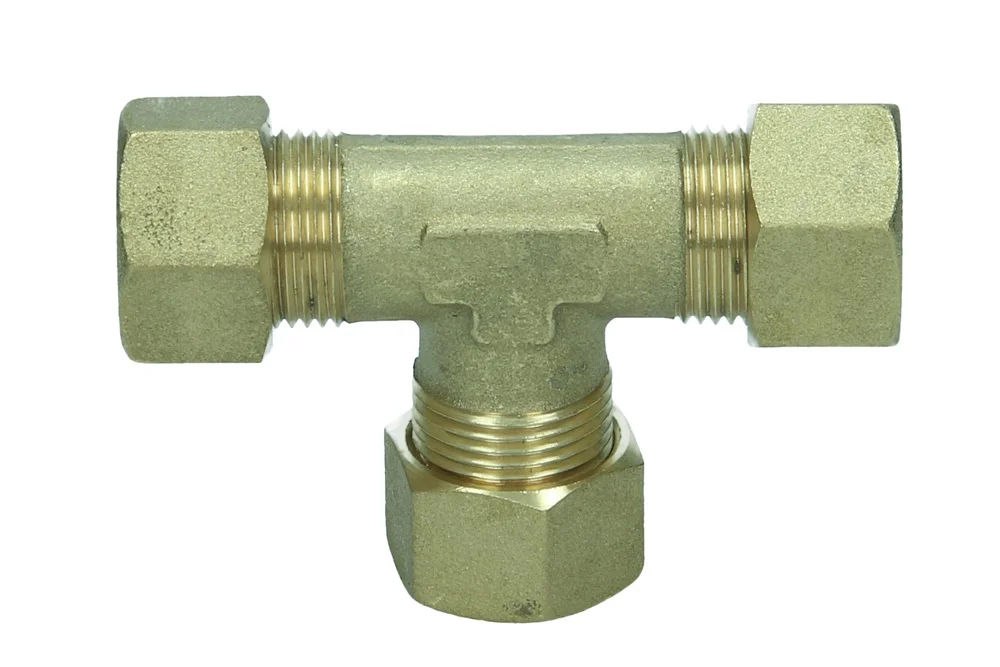

Tee fitting “T”, brass, type AI 13200

All products, Low-pressure fittings and adapters/

Additional information

Material	B – brass (bronze)

Tee fitting “T” type AI 13200 designed for connecting copper, brass, steel, aluminum pipes, etc., as well as plastic pipes and hoses (e.g., polyamide). The range of external diameters of connected pipes is from 4 to 22 mm. The tightness of the connection is achieved by crimping the ring on the connected pipe and simultaneously pressing the pipe with the ring into the socket using a nut. Standard: EN 1254-2. Material: brass.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AI-13200-04	Connector - T-fitting, 4 mm tube	-	150	In stock	Enquiry
AI-13200-06	Connector - T-fitting, 6 mm tube	-	150	In stock	Enquiry
AI-13200-08	Fitting - T-connector, 8 mm tube	-	135	In stock	Enquiry
AI-13200-10	Fitting - T-connector, tube 10 mm	-	95	In stock	Enquiry
AI-13200-12	Fitting - T-connector, tube 12 mm	-	75	In stock	Enquiry
AI-13200-14	Fitting - T-connector, tube 14 mm	-	100	In stock	Enquiry
AI-13200-15	Fitting - T-connector, tube 15 mm	-	95	In stock	Enquiry
AI-13200-16	Fitting - T-connector, tube 16 mm	-	95	In stock	Enquiry
AI-13200-18	Fitting - T-connector, tube 18 mm	-	70	In stock	Enquiry
AI-13200-22	Fitting - T-branch, pipe 22 mm	-	70	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Tee fitting “T” type AI 13200 designed for connecting copper, brass, steel, aluminum pipes, etc., as well as plastic pipes and hoses (e.g., polyamide). The range of external diameters of connected pipes is from 4 to 22 mm. The tightness of the connection is achieved by crimping the ring on the connected pipe and simultaneously pressing the pipe with the ring into the socket using a nut. Standard: EN 1254-2. Material: brass.
