Can the T-piece "T" for UHP with GW, carbon steel, type RT support different quick couplings and UHP hoses at pressures between 2000â3000 bar?

Yes. The T-piece "T" for UHP with GW, carbon steel, type RT is designed as a T-type block tee with internal threads to accept quick couplings and ultra-high-pressure (UHP) hoses. Its working pressure range is specified from 2000 bar to 3000 bar (depending on the thread size), and its material.carbon steel with black galvanization.provides the strength and corrosion protection typical for high-pressure hydraulic fittings. Therefore, when matched to compatible thread sizes and appropriately rated quick couplings and UHP hoses, the T-piece "T" for UHP with GW, carbon steel, type RT can support different quick couplings and UHP hoses at pressures between 2000â3000 bar. Ensure you select coupling and hose components whose thread type, size and pressure rating match the specific RT thread variant and operating conditions before use.

Is the T-piece "T" for UHP with GW, carbon steel, type RT compatible with various thread sizes for 2000â3000 bar quick couplings?

Yes. The T-piece "T" for UHP with GW, carbon steel, type RT is designed as a T-type block tee with internal threads to accept quick couplings and UHP hoses. Its working pressure range of 2000â3000 bar (depending on thread size) indicates compatibility with quick couplings rated within that pressure range; you must match the specific thread size and pressure rating of your coupling to the T-pieceâs corresponding thread variant to ensure a proper seal and safe operation.

Does the T-piece "T" for UHP with GW, carbon steel, type RT accommodate different internal thread standards?

T-piece "T" for UHP with GW, carbon steel, type RT Format: Based on the description, the T-type block tee features internal threads to connect quick couplings and UHP hoses. While the text does not explicitly list supported thread standards, the presence of internal threading for quick couplings implies it is designed to match standard coupling/thread types used in UHP hydraulic systems. Working pressure varies by thread size (2000â3000 bar), so different thread sizes. and therefore different thread standards. are likely available to ensure compatibility and safe pressure ratings. For precise confirmation of which internal thread standards (e.g., BSPP, NPT, metric, UNF, or specialized hydraulic thread forms) and available sizes, you should consult the manufacturerâs technical datasheet or contact the supplier with the exact part number, because thread form and size directly affect pressure rating and coupling compatibility.

Tee “T” for UHP with female, carbon steel, type RT

All products, UHP adapters and accessories/

Additional information

Material	CS – steel (cast iron)

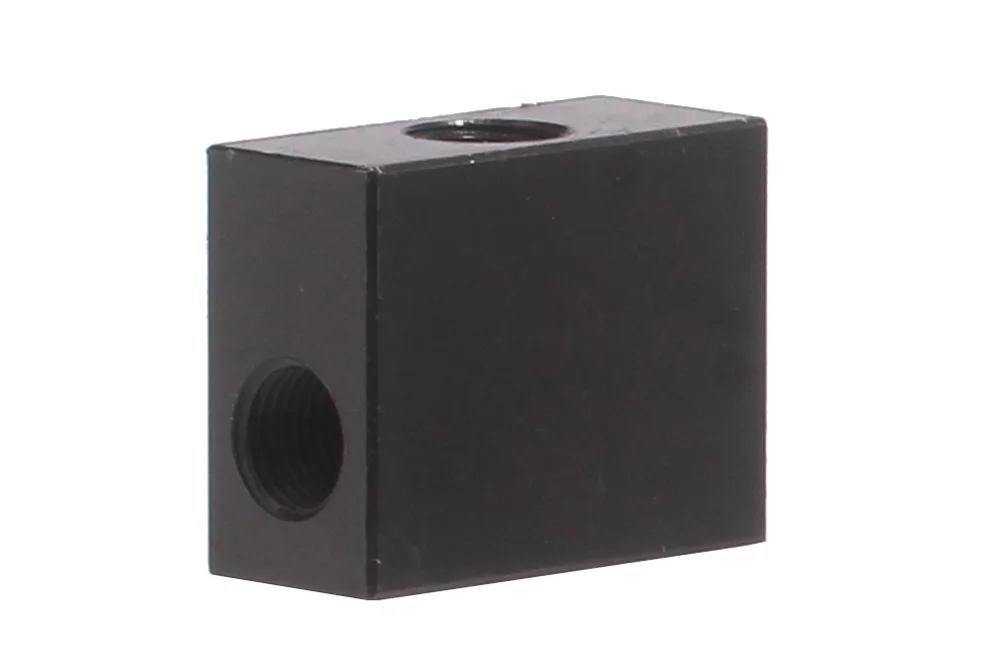

Tee “T” cube-type with a female thread allowing UHP quick couplings and hoses to be joined together. Working pressure: od 2000 bar up to 3000 bar (depending on the thread size). Material: carbon steel, black-galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
EU-RT15	Tee 3 x 1/4" BSP female, 120° cone, 2000 bar	-	2000	In stock	0 zł		Enquiry
EU-RT34	Tee 3 x 3/4"-16 UNF female, 60° cone, 3000 bar	-	3000	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Tee “T” cube-type with a female thread allowing UHP quick couplings and hoses to be joined together. Working pressure: od 2000 bar up to 3000 bar (depending on the thread size). Material: carbon steel, black-galvanized.
