Does the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) require reduced working pressure above +80Â°C, and how is it calculated?

Yes. For the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) the maximum working pressure must be reduced for temperatures above +80Â°C. The reduction is 5% of the working pressure for each 1Â°C above +80Â°C. Calculation method: Reduced pressure = nominal working pressure Ã (1 â 0.05 Ã (T â 80Â°C)) Example (given): for AF-VFPB-19 with nominal 16 bar at T = 90Â°C: Reduction = (90â80) Ã 5% = 50% â Reduced pressure = 16 bar Ã (1 â 0.50) = 8 bar. Notes: - Operating temperature range: â30Â°C to +100Â°C; resistant to full vacuum up to +80Â°C. - Working pressure values depend on hose diameter (12.5â30 bar nominal).

How does the antistatic version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) achieve electrical dissipation?

The antistatic version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) achieves electrical dissipation by using PTFE (Teflon) with evenly distributed carbon additives in the inner corrugated layer. This modified PTFE (version AS) yields a bulk resistance R < 10^8 Î© (per ISO 8031 annex A), allowing accumulated electric charges to be conducted away and dispersed, preventing charge buildup. The hose retains the same polypropylene braid reinforcement and operating characteristics, while the carbon-filled PTFE provides the antistatic path.

Can the PBB (black) version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) be used in the same chemical environments as the standard PB?

Yes. the PBB (black polymer braid) version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) can be used in the same chemical environments as the standard PB braid. The product description states the black braid option has similar characteristics to the standard PB and is offered for applications where bright colors are not acceptable. Core construction (spiral corrugated PTFE) and polypropylene braid chemistry remain the same, so chemical resistance is equivalent. Note operational limits and special cases: temperature range â30Â°C to +100Â°C, vacuum resistance up to +80Â°C, and reduction of maximum working pressure above +80Â°C (reduce by 5% per Â°C). If antistatic properties are required, choose the AS version (carbon-loaded PTFE, R < 10^8 Î©) rather than PBB.

Hose PTFE in braid polypropylene HYPERLINE V (VISIFLON)

Q: Can the PBB (black) version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) be used in the same chemical environments as the standard PB?

Yes. the PBB (black polymer braid) version of the Teflon hose in polypropylene braid HYPERLINE V (VISIFLON) can be used in the same chemical environments as the standard PB braid. The product description states the black braid option has similar characteristics to the standard PB and is offered for applications where bright colors are not acceptable. Core construction (spiral corrugated PTFE) and polypropylene braid chemistry remain the same, so chemical resistance is equivalent. Note operational limits and special cases: temperature range â30Â°C to +100Â°C, vacuum resistance up to +80Â°C, and reduction of maximum working pressure above +80Â°C (reduce by 5% per Â°C). If antistatic properties are required, choose the AS version (carbon-loaded PTFE, R < 10^8 Î©) rather than PBB.

All products, PTFE hoses/

Hose PTFE in braid polypropylene HYPERLINE V (VISIFLON)

Additional information

Material	PTFE – teflon and similar
Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-30
Vacuum resistance	yes

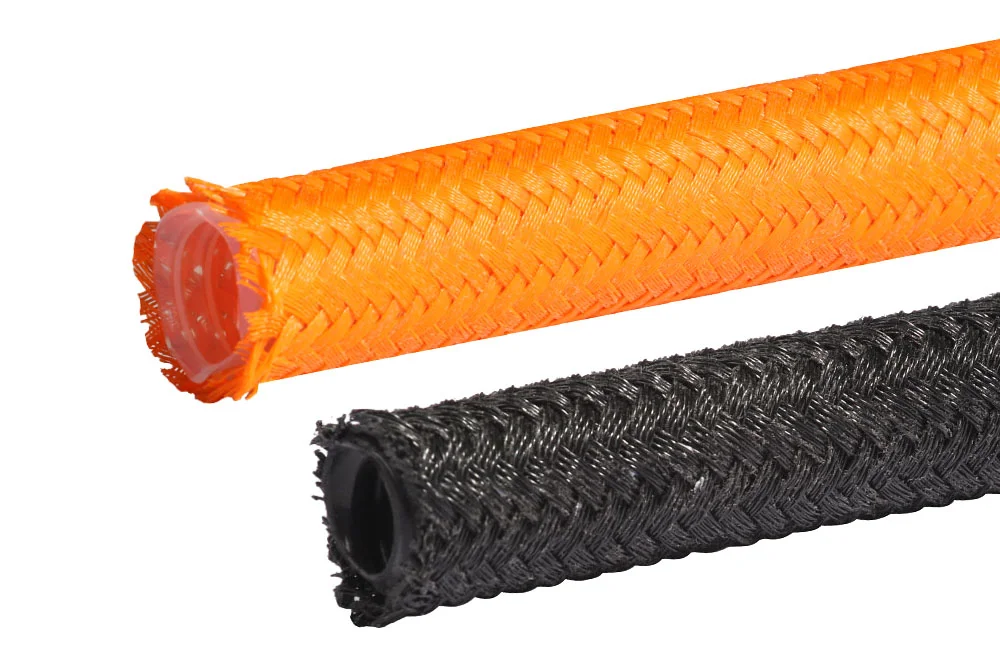

Hose HYPERLINE V (VISIFLON) has layer inner made with high quality serrated PTFE ensuring exceptional flexibility hose and resistance na vibration. has braid with fiber polypropylene characterized by low mass and high chemical resistance. at temperature use above +80°C maximum pressure working should reduced o 5% na each 1°C rise temperatures. for example at temperature 90ºC maximum pressure working for hose AF-VFPB-19 is: 16 bar – (90°C-80°C) x 5 = 16 bar – 50% = 8 bar. exists possibility order version in black braid polymer (version PBB), o similar characteristics jak version PB, for applications tam, where color bright nie can be used. available versions: standard (orange) and antistatic (black). antistatic teflon version AS, contains appropriate distributed in PTFE carbon and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). ensures to discharge and dissipation charges electric. Material hose: spirally Serrated PTFE (teflon). Reinforcement: braid polypropylene. pressure working: od 12.5 bar up to 30 bar – depending on diameter hose. temperature use: from -30°C to +100°C. resistant na full vacuum for temperatures: +80°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AF-VFPB-10	Hose HYPERLINE V (VISIFLON) 3/8", A braid polymer	10	30	In stock	Enquiry
AF-VFPB-10AS	Hose HYPERLINE V (VISIFLON) 3/8" AS, A braid polymer	10	30	In stock	Enquiry
AF-VFPB-13	Hose HYPERLINE V (VISIFLON) 1/2", A braid polymer	12	23.5	In stock	Enquiry
AF-VFPB-13AS	Hose HYPERLINE V (VISIFLON) 1/2" AS, A braid polymer	12	23.5	In stock	Enquiry
AF-VFPB-16	Hose HYPERLINE V (VISIFLON) 5/8", A braid polymer	16	20	In stock	Enquiry
AF-VFPB-16AS	Hose HYPERLINE V (VISIFLON) 5/8" AS, A braid polymer	16	20	In stock	Enquiry
AF-VFPB-19	Hose HYPERLINE V (VISIFLON) 3/4", A braid polymer	20	16	In stock	Enquiry
AF-VFPB-19AS	Hose HYPERLINE V (VISIFLON) 3/4" AS, A braid polymer	20	16	In stock	Enquiry
AF-VFPB-25	Hose HYPERLINE V (VISIFLON) 1", A braid polymer	25	13	In stock	Enquiry
AF-VFPB-25AS	Hose HYPERLINE V (VISIFLON) 1" AS, A braid polymer	25	13	In stock	Enquiry
AF-VFPB-32	Hose HYPERLINE V (VISIFLON) 1.1/4", A braid polymer	32	12.5	In stock	Enquiry
AF-VFPB-32AS	Hose HYPERLINE V (VISIFLON) 1.1/4" AS, A braid polymer	32	12.5	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Hose HYPERLINE V (VISIFLON) has layer inner made with high quality serrated PTFE ensuring exceptional flexibility hose and resistance na vibration. has braid with fiber polypropylene characterized by low mass and high chemical resistance. at temperature use above +80°C maximum pressure working should reduced o 5% na each 1°C rise temperatures. for example at temperature 90ºC maximum pressure working for hose AF-VFPB-19 is: 16 bar – (90°C-80°C) x 5 = 16 bar – 50% = 8 bar. exists possibility order version in black braid polymer (version PBB), o similar characteristics jak version PB, for applications tam, where color bright nie can be used. available versions: standard (orange) and antistatic (black). antistatic teflon version AS, contains appropriate distributed in PTFE carbon and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). ensures to discharge and dissipation charges electric. Material hose: spirally Serrated PTFE (teflon). Reinforcement: braid polypropylene. pressure working: od 12.5 bar up to 30 bar – depending on diameter hose. temperature use: from -30°C to +100°C. resistant na full vacuum for temperatures: +80°C.
