Is the TEMA 100 Threaded Adaptor compatible with both straight and 90Â° mounting orientations in the TEMA 100 measurement system?

Yes. The TEMA 100 Threaded Adaptor is available in both straight and 90Â° (angled) versions, so it is compatible with the TEMA 100 measurement system in both straight and 90Â° mounting orientations. Material: nickel-plated brass.

Does the TEMA 100 Threaded Adaptor require a specific torque when installed to avoid damaging the nickel-plated brass threads?

Yes. The TEMA 100 Threaded Adaptor should be tightened with care to avoid over-torquing the nickel-plated brass threads. Use a torque-limited driver or wrench and apply a moderate, manufacturer-recommended torque if available (typical small brass fittings: 5â12 Nm as a general guideline), or tighten by hand until snug and then add no more than a quarter to half turn with a wrench. Avoid excessive force, cross-threading, or impacts. If possible, use thread sealant or PTFE tape as specified by the system documentation and follow any exact torque values provided by TEMA 100 for reliable, damage-free installation.

Can the TEMA 100 Threaded Adaptor be used with other TEMA 100 components of different sizes or thread standards?

TEMA 100 Threaded Adaptor Format is designed specifically to connect components within the TEMA 100 measurement system. Because it is tailored to the systemâs mechanical and sealing interfaces, compatibility depends on matching thread size and standard. If other TEMA 100 components share the same thread dimensions and standard as the adaptor, they can be used together safely and reliably. However, components of different sizes or different thread standards will generally not mate correctly: mismatched threads can lead to poor mechanical fit, leaks, or damage to threads and sensors. Practical guidance: - Confirm the exact thread size and standard of both the TEMA 100 Threaded Adaptor Format and the counterpart component before attempting to connect. - Use only components specified as compatible within the TEMA 100 family or those explicitly listed by the manufacturer as interchangeable. - If you need to join different thread standards or sizes, use an appropriate certified adapter or consult the manufacturer; do not force-fit parts. - Inspect fittings and use correct sealing methods (e.g., compatible sealant or gasket) recommended for nickel-plated brass to ensure reliable performance. In short: yes, but only when the other TEMA 100 components have matching thread size and standard; otherwise, they are not compatible without a proper intermediary adapter or manufacturer guidance.

TEMA 100 Threaded Adaptor

All products, Measurement sets/

Additional information

Material	B – brass (bronze)

Threaded adapter designed for connecting with other components of the TEMA 100 measurement system. Available in straight and angled (90°) versions. Material: nickel-plated brass.

List of product variants

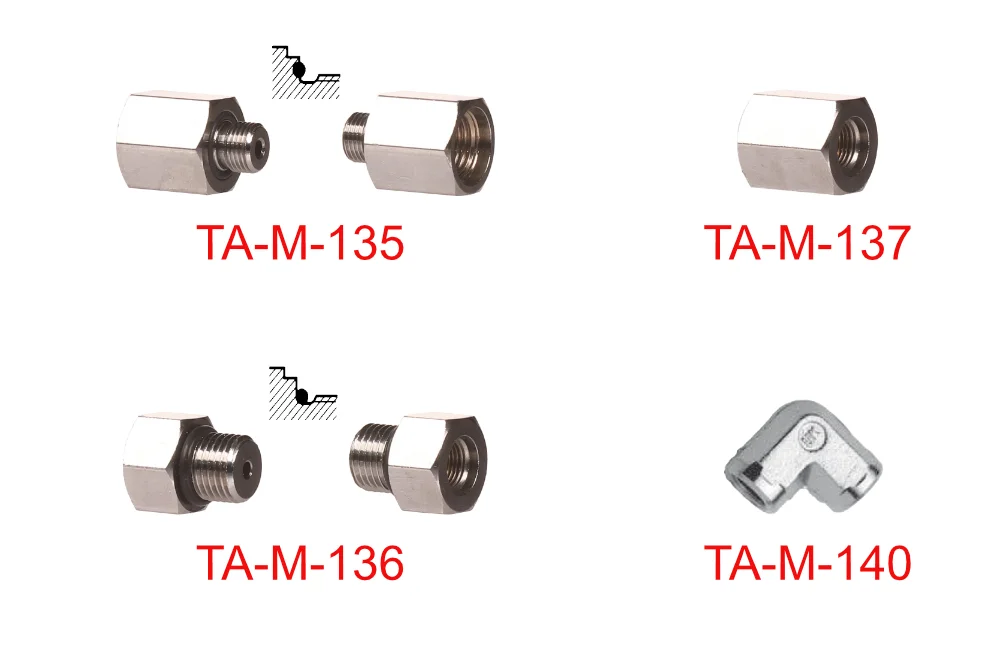

Article number	Product variant name	DN	BAR	Availability	Actions
TA-M-135	Adapter TEMA SYSTEM 100, GW 1/4" BSP / GZ 1/8" BSP	-	600	In stock	Enquiry
TA-M-136	Adapter TEMA SYSTEM 100, GW 1/8" BSP / GZ 1/4" BSP	-	600	In stock	Enquiry
TA-M-137	Adapter TEMA SYSTEM 100, G 1/8" BSP / G 1/4" BSP	-	600	In stock	Enquiry
TA-M-140	90° Adaptor TEMA SYSTEM 100, 1/8" BSP male / 1/8" BSP male	-	600	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Threaded adapter designed for connecting with other components of the TEMA 100 measurement system. Available in straight and angled (90°) versions. Material: nickel-plated brass.
