Is the Threaded four-way connector CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM suitable for autoclave sterilization at 10 bar working pressure?

CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM: based on the provided description, this threaded four-way connector (internal BSP threads, series 3F type EM) is made of polypropylene (PP) or PVDF and has a working pressure rating of 10 bar. Autoclave sterilization typically involves saturated steam at 121â134 Â°C and pressures around 1â3 bar (sterilization pressure), which are well below 10 bar; however, suitability for autoclaving depends primarily on the materialâs thermal and chemical resistance rather than only on working pressure. - PVDF: generally has good thermal stability and chemical resistance and can usually withstand autoclave temperatures (121 Â°C) without significant deformation; PVDF is commonly used in sterilizable fluid handling components. - Polypropylene (PP): has a lower heat resistance; it can tolerate autoclave temperatures in many cases but may creep or deform over repeated cycles.long-term autoclave compatibility is less certain than for PVDF. Conclusion: At a glance, the componentâs 10 bar working pressure is sufficient for autoclave pressures, and PVDF versions are likely suitable for autoclave sterilization. PP versions may be acceptable for occasional autoclaving but could be less reliable with repeated cycles. For a definitive answer, consult the manufacturerâs autoclave compatibility data, maximum continuous service temperature, and any stated sterilization instructions for CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM.

Can the CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM be used in food and pharmaceutical processes at 10 bar?

Yes. The CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM can be used in food and pharmaceutical processes at 10 bar. The product description explicitly lists applications in laboratories, medicine, pharmaceutical, chemical, and food industries, and the materials (polypropylene and PVDF) are commonly accepted for contact in such sectors when appropriately certified and cleaned. The declared working pressure is 10 bar, so operationally it meets that requirement. Ensure final suitability by verifying specific regulatory certifications (e.g., FDA, EU food contact, USP) and compatibility with your process fluids, temperatures, and cleaning/sterilization procedures.

Does the CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM withstand chemical cleaning agents at 10 bar?

Yes. the CzwÃ³rnik gwintowany GW BSP z tworzywa PP, PVDF, seria 3F typ EM can withstand chemical cleaning agents at 10 bar, with important qualifications. Why: The product is made from polypropylene (PP) and PVDF, both of which are widely used in laboratory, pharmaceutical, chemical and food industries specifically because of their good chemical resistance. The stated working pressure is 10 bar, so the component is designed to operate at that pressure. Important considerations: - Chemical compatibility depends on the specific cleaning agent (concentration, temperature, exposure time). PVDF has superior resistance to a broader range of aggressive chemicals (strong acids, many solvents) than PP, which is less resistant to some solvents and strong oxidizers. - Seals, gaskets or any other elastomers used in the assembly may limit chemical compatibility; confirm their material. - Temperature affects chemical resistance and pressure capability; verify maximum service temperature for both material and pressure. - For critical or aggressive cleaning agents (e.g., concentrated bleaches, strong solvents, hot caustic solutions), perform compatibility checks or consult the manufacturerâs chemical resistance charts. Recommendation: For a definitive answer for your specific cleaning agent, concentration and temperature at 10 bar, check the manufacturerâs detailed chemical compatibility data or provide the exact agent and conditions so compatibility can be confirmed.

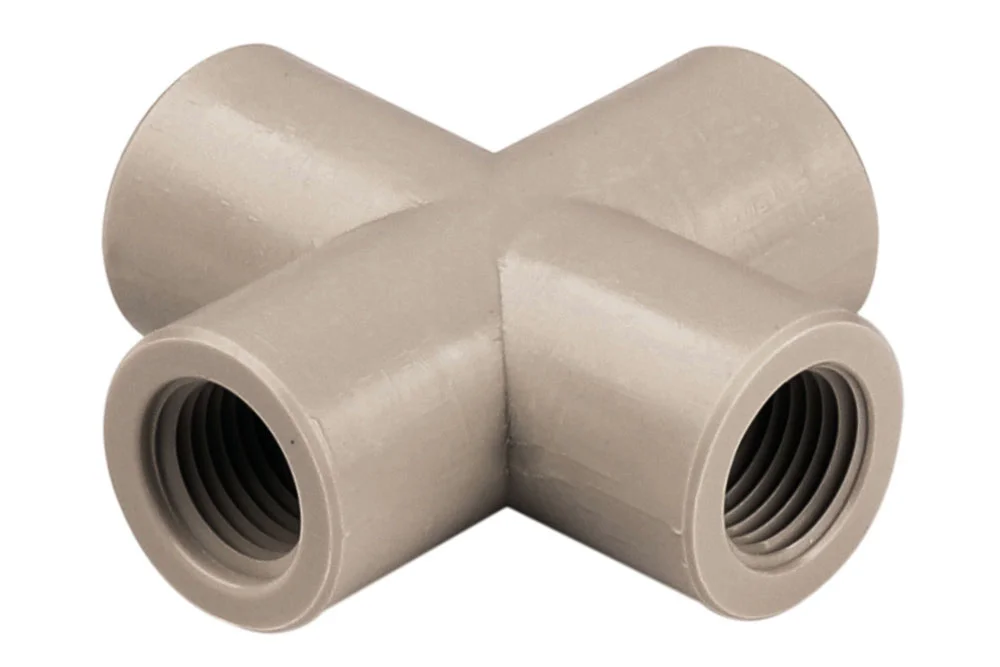

Threaded cross BSP female thread of PP, PVDF plastic, 3F series type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

Threaded cross with BSP female threads, 3F series type EM. is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3F444GG12PP	Cross (3F series) with 1/2" BSP female, polypropylene	-	10	In stock	Enquiry
EM-3F444GG12PV	Cross (3F series) with 1/2" BSP female, PVDF	-	10	In stock	Enquiry
EM-3F444GG14PP	Cross (3F series) with 1/4" BSP female, polypropylene	-	10	In stock	Enquiry
EM-3F444GG14PV	Cross (3F series) with 1/4" BSP female, PVDF	-	10	In stock	Enquiry
EM-3F444GG18PP	Cross (3F series) with 1/8" BSP female, polypropylene	-	10	In stock	Enquiry
EM-3F444GG18PV	Cross (3F series) with 1/8" BSP female, PVDF	-	10	In stock	Enquiry
EM-3F444GG38PP	Cross (3F series) with 3/8" BSP female, polypropylene	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Threaded cross with BSP female threads, 3F series type EM. is widely used in laboratories, medicine, and the pharmaceutical, chemical and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.
