Is the Threaded four-way coupling CzwÃ³rnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM suitable for use at 10 bar in pharmaceutical and food industry applications?

Yes. The CzwÃ³rnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM is described explicitly for use in laboratories, medicine, pharmaceutical, chemical, and food industries and is made from materials (polypropylene or PVDF) that are commonly accepted for such applications due to their chemical resistance and suitability for hygienic environments. Its specified working pressure of 10 bar matches your requirement. However, final suitability depends on the specific process conditions: temperature, media compatibility (cleaning agents, solvents), required sanitary approvals/certifications (e.g., FDA, USP, EC 1935/2004), and connection/sealing standards used in your installation. Verify material certification for food/pharma contact and ensure the product meets any industry-specific regulatory or validation requirements before use.

Can CzwÃ³rnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM be sterilized for use in medical and pharmaceutical processes?

The CzwÃ³rnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM can be used in laboratory, medical and pharmaceutical environments, but whether it can be sterilized depends on the material chosen and the sterilization method. PVDF has higher chemical and temperature resistance than PP and withstands common sterilization methods (steam autoclaving, ethylene oxide, gamma irradiation) better. Polypropylene tolerates certain chemical sterilants and lower-temperature steam cycles but deforms at typical autoclave temperatures if not specified as autoclave-grade. The product description lists application in medicine and pharmaceuticals and working pressure 10 bar, suggesting suitability for such use, yet you should confirm with the manufacturer for validated sterilization procedures, maximum allowable temperatures, and any biocompatibility or certification required for your specific process.

Can CzwÃ³rnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM resist common laboratory chemicals and detergents?

Yes. The Threaded four-way coupling with external BSP threads, series 3F type EM, made from polypropylene (PP) or PVDF, is suitable for resistance to common laboratory chemicals and detergents. Both PP and PVDF are widely used in laboratory, pharmaceutical and chemical applications because they offer good chemical compatibility: - Polypropylene (PP): resistant to most acids, alkalis, many solvents and typical laboratory detergents; good for aqueous solutions and routine chemical handling; not suitable for strong oxidizers (e.g., concentrated nitric acid, hot chromic acid) or some chlorinated solvents at elevated temperatures. - PVDF: broader chemical resistance and higher temperature capability than PP; resistant to a wide range of acids, bases, organic solvents and detergents; better choice when greater chemical aggressiveness or higher temperatures are expected. The productâs stated application areas (laboratories, medicine, pharmaceutical, chemical, food industries) and working pressure of 10 bar further indicate it was designed for typical lab media and cleaning agents. For specific aggressive chemicals, high temperatures, or critical processes, verify compatibility with the manufacturerâs chemical-resistance data or consult a chemical compatibility chart for PP and PVDF before use.

Czwórnik gwintowany GZ BSP z tworzywa PP, PVDF, seria 3F typ EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

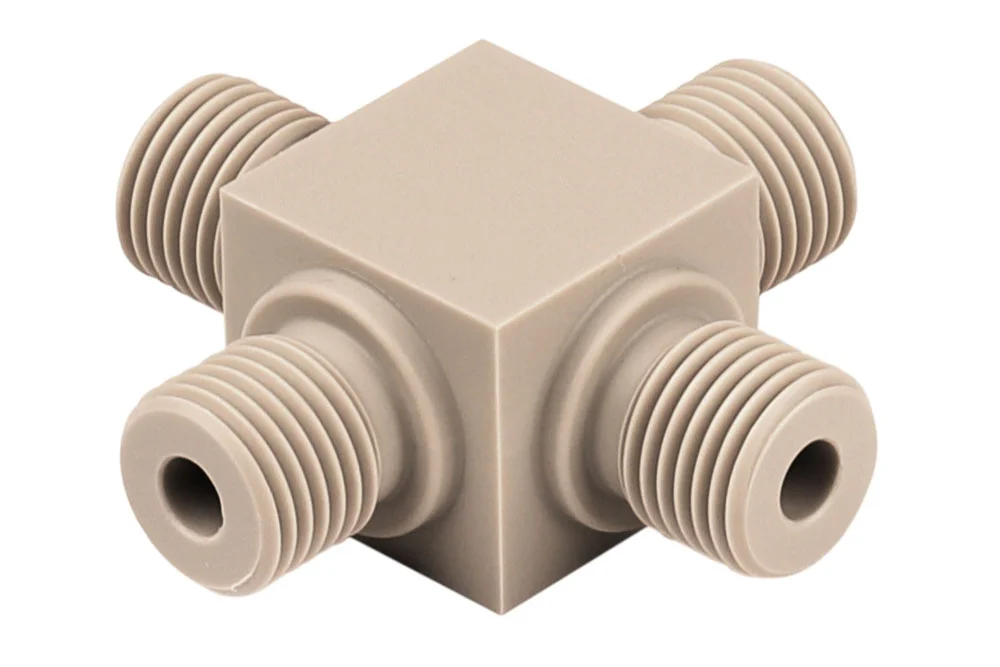

Threaded four-way coupling with external BSP threads, series 3F type EM. It has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-3F433GG12PV	Four-way fitting (series 3F) with GZ BSP 1/2", PVDF	-	10	In stock	Enquiry
EM-3F433GG14PP	Four-way fitting (series 3F) with GZ BSP 1/4", polypropylene	-	10	In stock	Enquiry
EM-3F433GG14PV	Four-way fitting (series 3F) with GZ BSP 1/4", PVDF	-	10	In stock	Enquiry
EM-3F433GG38PV	Four-way fitting (series 3F) with GZ BSP 3/8", PVDF	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Threaded four-way coupling with external BSP threads, series 3F type EM. It has wide applications in laboratories, medicine, pharmaceutical, chemical, and food industries. Material: polypropylene, PVDF. Working pressure: 10 bar.
