Can Three-part hose clamp with catches, DIN 20039 B, cast iron be used for pressurized systems up to 25 bar with compatible hose and fittings?

Yes. Three-part hose clamp with catches, DIN 20039 B, cast iron can be used for pressurized systems up to 25 bar provided three conditions are met: 1) correct installation according to the clamp design (claws engage properly, inserts/tongues positioned and tightened as intended), 2) the hose selected is rated for â¥25 bar and compatible with the conveyed media and temperature, and 3) the fittings (spigots/ends) are dimensionally and mechanically compatible with the clamp/hose assembly. The clampâs ductile cast iron, galvanized construction and the stated specification allow working pressure up to 25 bar when the hose and fittings are appropriately matched and installed. Always follow manufacturer installation torque/specs and validate the complete assembly with pressure testing and applicable standards/regulations for your application.

Does the Three-part hose clamp with catches, DIN 20039 B, cast iron require special torque settings or tools for safe installation at 25 bar?

Three-part hose clamp with catches, DIN 20039 B, cast iron does not specify special torque settings or unique tools in the provided description. Safe installation to operate at up to 25 bar requires: correct selection of hose and fittings, proper placement of the three clamp segments and separate tongue inserts, and secure engagement of the hooks/claws on the flange. Use standard hand tools suitable for cast iron clamps (wrenches or spanners) and apply even, firm tightening to avoid distortion or damage. Follow manufacturer instructions and industry best practices; if available, use a torque wrench to match any manufacturer-recommended torque. If no torque value is supplied, tighten sufficiently to compress the hose without crushing it and perform a pressure test before service.

Is the Three-part hose clamp with catches, DIN 20039 B, cast iron suitable for outdoor corrosive environments?

Partially suitable, with limitations. Three-part hose clamp with catches, DIN 20039 B, cast iron Format is made of ductile cast iron with galvanization, which provides a basic protective layer against corrosion and makes it acceptable for many outdoor applications. For non-aggressive outdoor environments (exposure to rain, humidity, occasional wetting) and where mechanical protection and correct installation are ensured, it can perform satisfactorily. However, for strongly corrosive outdoor environments (marine/coastal atmospheres with salt spray, industrial sites with acid/alkaline fumes, continuous immersion, or environments with chlorides or sulfides), galvanized ductile iron has limited long-term resistance. Galvanizing delays corrosion but can wear, chip, or be mechanically damaged during installation; once the coating is breached, underlying iron may corrode relatively quickly. Also, galvanization does not provide the same protection as stainless steel or specialized coatings. Recommendations: - For mild outdoor conditions and when hose, fittings and clamp are correctly selected and installed, the clamp can be used (working pressure up to 25 bar as specified). - For coastal, marine, or chemically aggressive environments choose higher-corrosion-resistance options (e.g., stainless steel clamps, duplex materials, or specially coated/painted fittings). - Inspect periodically for coating damage and corrosion; consider additional corrosion protection (sealants, paint, or sacrificial anodes) if full replacement with stainless material is not feasible. Conclusion: Three-part hose clamp with catches, DIN 20039 B, cast iron Format is acceptable for many outdoor uses but not recommended for highly corrosive outdoor environments without additional protection or alternative materials.

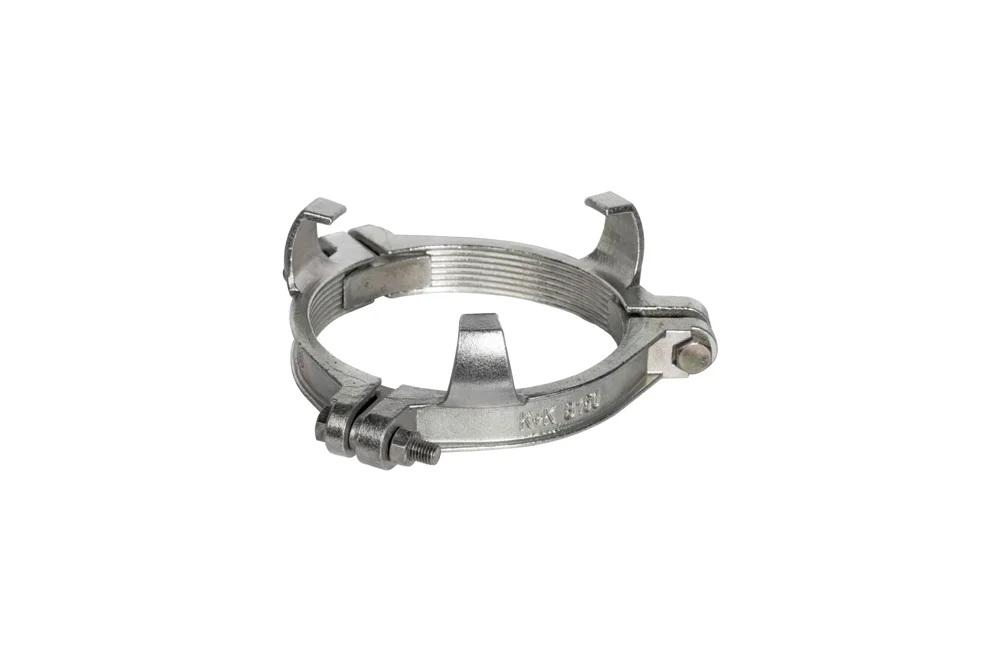

Three-part hose clamp with catches, DIN 20039 B, cast iron

Additional information

Material	CS – steel (cast iron)

Three-part clamp according to DIN 20039 B, with hooks (“claws”) on the flange to secure the ends and with separate inserts – “tongues” for pressing. Material: ductile cast iron galvanized. With proper installation, appropriately selected hose and fitting, working pressure up to 25 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MU-1330	3-piece clamp with teeth 85÷102 mm (3")	-	-	In stock	0 zł		Enquiry
MU-1333	3-piece clamp with teeth 170÷200 mm (6")	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Three-part clamp according to DIN 20039 B, with hooks (“claws”) on the flange to secure the ends and with separate inserts – “tongues” for pressing. Material: ductile cast iron galvanized. With proper installation, appropriately selected hose and fitting, working pressure up to 25 bar.
