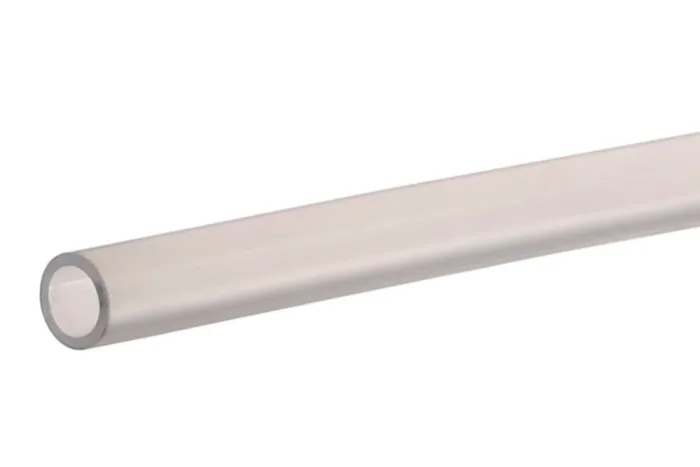

FEP Transparent Smooth-Walled Hose – Chemically Resistant, UV-Stable, Flame Retardant, -200°C to +206°C, 4.25–13 bar
Light transparent smooth-walled hose made of natural (non-regenerated) fluoropolymer FEP (fluorinated ethylene propylene), a material with properties similar to PTFE. The hose features excellent chemical resistance, dimensional and shape thermal stability, and a smooth internal and external surface. Good transparency of the hose allows for easy observation of fluid level or flow. UV resistant. Designed for low-pressure installations of aggressive chemicals or where high purity and chemical inertness of the hose material are required. Commonly used in laboratories, chemical and pharmaceutical industries. Due to its excellent insulating properties, it is used in the electronics and semiconductor industries. The hose is not antistatic (does not dissipate electric charges for non-conductive substances). Not recommended for pneumatic plug connections. Flame retardant (UL94 V-0) and with a high oxygen index (LOI). Safety factor n = 4:1. Hose material: FEP. Shore hardness (D) 55. Operating temperature: from -200°C to +206°C. Working pressure: from 4.25 bar to 13 bar – depending on the hose diameter.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| VE-CHEMFEP-02X04 | VERSILON FEP hose 2x4 mm | 2 | 13 | |
| VE-CHEMFEP-04X06 | VERSILON FEP hose 4x6 mm | 4 | 8.5 | |
| VE-CHEMFEP-06X08 | VERSILON FEP hose 6x8 mm | 6 | 6.25 | |
| VE-CHEMFEP-08X10 | VERSILON FEP hose 8x10 mm | 8 | 4.75 | |
| VE-CHEMFEP-09X12 | VERSILON FEP hose 9x12 mm | 10 | 6.25 | |
| VE-CHEMFEP-10X12 | VERSILON FEP hose 10x12 mm | 10 | 4.25 |
Light transparent smooth-walled hose made of natural (non-regenerated) fluoropolymer FEP (fluorinated ethylene propylene), a material with properties similar to PTFE. The hose features excellent chemical resistance, dimensional and shape thermal stability, and a smooth internal and external surface. Good transparency of the hose allows for easy observation of fluid level or flow. UV resistant. Designed for low-pressure installations of aggressive chemicals or where high purity and chemical inertness of the hose material are required. Commonly used in laboratories, chemical and pharmaceutical industries. Due to its excellent insulating properties, it is used in the electronics and semiconductor industries. The hose is not antistatic (does not dissipate electric charges for non-conductive substances). Not recommended for pneumatic plug connections. Flame retardant (UL94 V-0) and with a high oxygen index (LOI). Safety factor n = 4:1. Hose material: FEP. Shore hardness (D) 55. Operating temperature: from -200°C to +206°C. Working pressure: from 4.25 bar to 13 bar – depending on the hose diameter.
Additional information
| Material | PFA/MFA/FEP – fluoropolymer |
|---|---|
| Maximum operating temperature [°C] | 206 |
| Minimum operating temperature [°C] | -200 |
| Vacuum resistance | no |
| Standard length [m] | 30, 50 |
Additional information
| Material | PFA/MFA/FEP – fluoropolymer |
|---|---|
| Maximum operating temperature [°C] | 206 |
| Minimum operating temperature [°C] | -200 |
| Vacuum resistance | no |
| Standard length [m] | 30, 50 |
