Is the UHP hose for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 compatible with all stainless steel end fittings and galvanized sleeves?

The UHP hose, for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 is supplied with stainless steel end fittings and a galvanized (carbon steel) sleeve per the product description. Therefore it is compatible with stainless steel end fittings (it already uses them) but the sleeve provided is galvanized carbon steel, not stainless steel. If your application requires fully stainless-steel sleeves (for corrosion resistance or specific compatibility), the standard configuration will not meet that requirement and you should request a version with stainless sleeves or confirm availability of alternative sleeve materials from the manufacturer.

Can the UHP hose, for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 be used with other sleeve materials besides galvanized?

Yes. UHP hose, for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 can be used with sleeve materials other than galvanized, provided the alternative sleeve material meets the same mechanical strength, corrosion resistance and compatibility requirements for 2800 bar service and the specified temperature range (â30Â°C to +70Â°C). The hose description lists end fitting material as stainless steel and sleeve options including carbon steel and galvanized; carbon steel sleeves are therefore compatible. Any other sleeve material must be pressure-tested and certified with the hose (matching certification), and should not chemically attack the PA outer layer or POM inner layer. Consult the manufacturerâs approval and certification before substituting sleeve materials.

Does the UHP hose, for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 have a POM inner layer?

Yes. The UHP hose, for SPIR STARÂ® high-pressure water cleaning and cutting, 2800 bar, type 6 has an inner layer made of POM (polyoxymethylene).

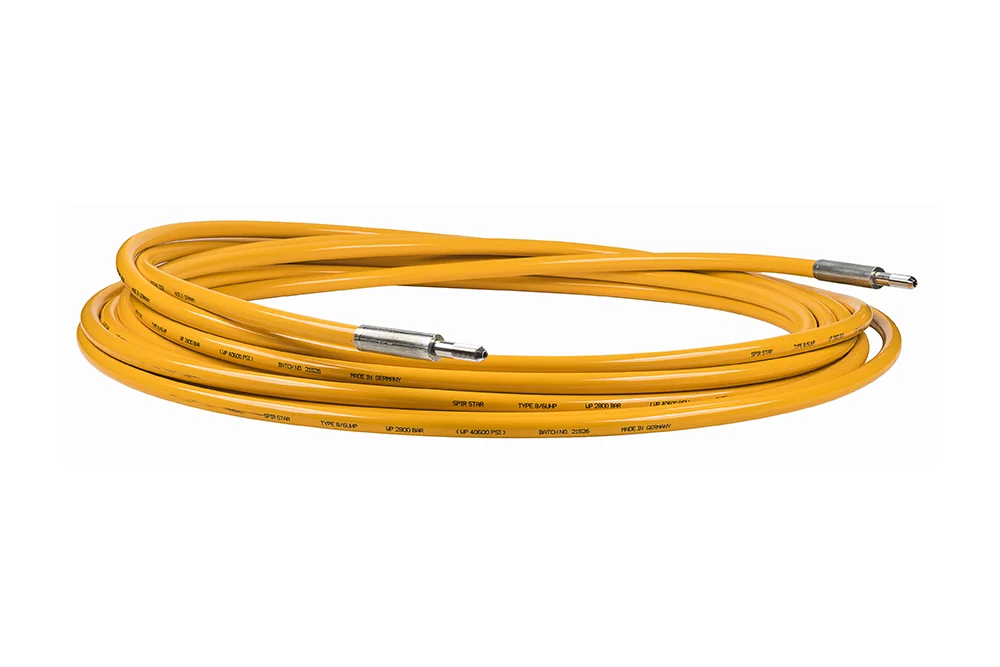

UHP hose, for SPIR STAR® high-pressure water cleaning and cutting, 2800 bar, type 6

Additional information

Material	SS – stainless steel
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-30

Ready, strong, and flexible, multi-braided hose, primarily used for high-pressure water cleaning and cutting, hydroforming, hydraulics, chemical injection, and high-pressure lubrication. The hose is pressure tested and supplied with the appropriate certification. Inner layer: POM (polyoxymethylene). Outer layer: PA (polyamide). Material of the end fitting and sleeve: stainless steel (end fitting), carbon steel, galvanized (sleeve). Working pressure: 2800 bar. Operating temperature: from -30°C to +70°C (+60° for hose SS-NW-05-6H).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HASS-05-014-L5M	Spir Star Hose DN5 SS-NW-05/6H Lc=5m 2xGZ HP GZ 9/16"-18 UNF LH WP 2800 bar	5	2800	In stock	Enquiry
HASS-05-015-L5M	Spir Star Hose DN5 SS-NW-05/6H Lc=5m 2xGZ HP GZ M14x1.5 LH WP 2800 bar	5	2800	In stock	Enquiry
HASS-08-012-L20M	Spiral Hose Spir Star DN8 SS-NW-08/6UHP Lc=20m 2xGZ HP GZ 9/16"-18 UNF LH WP 2800 bar	8	2800	In stock	Enquiry
HASS-08-013-L20M	Spir Star Hose DN8 SS-NW-08/6UHP Lc=20m 2xGZ HP GZ M14x1.5 LH WP 2800 bar	8	2800	In stock	Enquiry
